CDS-B Series Horizontal lathe machine used for various turning
processes
Product Presentation
CDS-B series ordinary lathe can be used for various turning
processes, such as: turning parts of the inner and outer cylinder,
end face and cone face; A lathe with a saddle can be used to turn
large diameter or deformed parts. According to customer's request,
we provide metric or inch screw machine tools to complete the
turning of metric, inch, modulus and diameter pitch threads.
Complete the work of drilling, drilling and pulling tank.

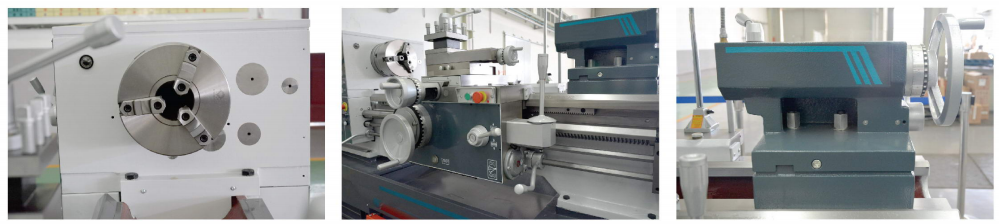

Main Features
1. The machine body is casted with high-strength cast iron, and the
guide rail of the machine bed adopts a mountain-shaped and flat
guide rail layout.
Large load-bearing section, therefore, has good rigidity and shock
absorption, which can ensure high-precision cutting.
2. The mechanical friction plate clutch is used in the main shaft
box of the machine tool: through the control lever, there is no
need to change the speed of the motor
And stop the motor can realize the spindle speed change, stop,
reversing, and the spindle box is forced to lubricate.
3. B type is 82mm, C type is 105mm spindle bore.
4. High-rigidity mechanical tool holder with high reliability.
5. The slide box of the machine tool is equipped with a fast moving
device and a large hand wheel safety release mechanism for the
slide box. With
The interlocking protection function of the smooth rod and the lead
screw ensures the normal and trouble-free operation of the feed
system.
6. The type of thread can be changed by changing the handle
position of the feed box of the machine tool.
7. The slide box of the machine tool is equipped with a fast moving
device and an overload safety protection device; vertical and
horizontal cross operation
Vertical handle, opening and closing nut handle.
8. A variety of safety and protection accessories are available for
users to choose from.
Standard configuration: lead screw cover, foot brake, belt cover
and electrical cabinet opening and power failure and other
functional accessories.
Special order: tool post guard, chuck guard, carriage stop, etc.
| Standard configurations |
| 3-Jaw chuck | lead screw cover |
| Fixed center of tailstock | 4-way tool post |
| Foot brake |
Standard toolkit |
| Steady rest(≥1500mm Available) |
| Follower rest (≥1500mm Available) |
| Optional configurations |
| 4-Jaw chuck | Quick-change tool post |
| Chuck guard | Tool post guard |
| Rear splash guard | Live center of tailstock |
| Face plate | Thread dial |
| Drive plate | Taper-turning attachment |
| DRO | Carriage stop |
| Adjustable pads |
Anchor bolts |
| Spindle center and center sleeve |
| Steady rest&Follow rest (≤1000mm Available) |
Product Configuration
| Product model | UNIT | CDS6150B | CDS6250B | CDS6156B | CDS6256B | CDS6166B | CDS6266B |
| specification |
| Max. swing diameter over bed | mm | Ø500 | Ø560 | Ø660 |
| Max.swing diameter over cross slide | mm | Ø290 | Ø350 | Ø440 |
| Max.swing diameter in gap | mm | — | Ø760 | — | Ø800 | — | Ø870 |
| Length in gap | mm | — | 280 | — | 280 | — | 280 |
| Max. workpiece length | mm | 750/1000/1500/2000/3000 |
| Max. cutting length | mm | 700/950/1450/1950/2950 |
| Spindle |
| spindle nose | | D8 |
| Spindle bore | mm | Ø82(Allowable bar diameter≤Ø80) |
| Chuck size | mm | Ø250 | Ø315 |
| Taper of spindle bore | | 90 mm/1:20 |
| Max.Spindle torque | Nm | 1100 |
| Spindle speed ranges | rpm | 26-2000(16 speeds) |
| Spindle centre height | mm | 250 | 280 | 325 |
| Spindle motor power | kW | 7.5(10 HP) |
| Tailstock |
| Diameter of tailstock quill | mm | Ø75 |
| Travel of tailstock quill | mm | 150 |
| Taper of tailstock quill | | No.5 MT |
| Feeds&Threads (metric screw *inch screw) |
| Longitudinal feed | | 0.044-1.48 mm/rpm (45 Kinds) *0.044〜0.148 in/rpm (45 Kinds) |
| Cross feed | | 0.022~0.74mm/rpm (45 Kinds) *0.031-0.092 in/rpm (45 Kinds) |
| Metric threads | mm | 0.5-80 (73 Kinds *53 Kinds) |
| Modular threads | mm | 0.5-40 (45 Kinds *66 Kinds) |
| Inch threads | TPI | 7/16-80 (47 Kinds *47 Kinds) |
| Diametral pitch threads | DP | 7/8~160 (47 Kinds *48 Kinds) |
| Tool post |
| Max.tool shank size | mm | 25X25 |
| Travel of top slide | mm | 150 |
machine dimensions
(L*W*H) | mm | 2680X1223X1295 (750) 2930X1223X1295 (1000) 3430X1223X1295 (1500)
3930X1223X1295 (2000) 4930X1223X1295 (3000) | 2680X1223X1325 (750)
2930X1223X1325 (1000)
3430X1223X1325 (1500) 3930X1223X1325 (2000) 4930X1223X1325 (3000) | 2680X1223X1370 (750)
2930X1223X1370 (1000) 3430X1223X1370 (1500) 3930X1223X1370 (2000)
4930X1223X1370 (3000) |
| Machine weight | kg | 2120/2170/2420/2620/3120 | 2180/2270/2480/2680/3180 | 2400/2500/2700/2900/3400 |
