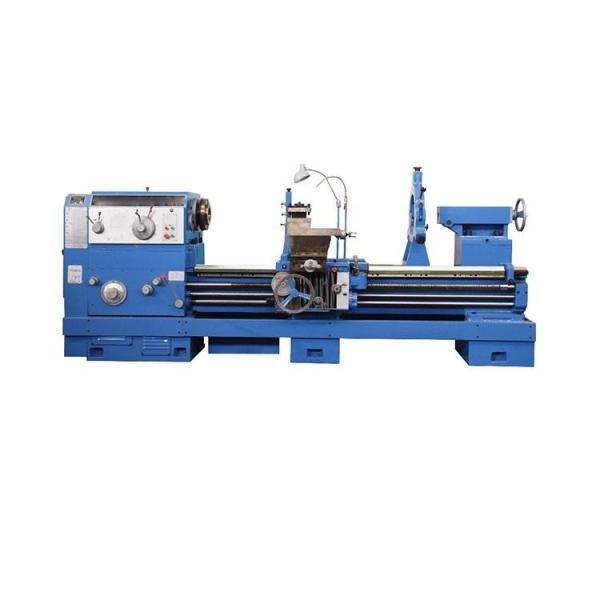

    Horizontal Conventional Lathe Machine CW6163B CW6263B Gap Bed Engine Lathe

    Ask Lasest Price
    Brand Name : smtcl
    Model Number : CW6163B/6263B
    Certification : CE ISO
    Supply Ability : 35 Set/Sets per Month
    Price : Negotiable
    Delivery Time : 30-40 days
    • Product Details
    • Company Profile

    Horizontal Conventional Lathe Machine CW6163B CW6263B Gap Bed Engine Lathe

    Heavy Duty Engine Cw Series Horizontal Conventional Turning Gap Bed Lathe machine CW6163B/6263B

    Product Introduction

    This series of lathes can be used for various turning processes, such as turning inner and outer cylindrical surfaces, conical surfaces and other turning surfaces, end faces, and can also process various common threads-such as metric, inch, modulus, diameter threads,, hinges, tapping, Tumble over the trunking, etc. The flat bed with high torsion resistance is carefully manufactured with high-quality cast iron, and the rail surface is precision treated by induction hardening; the flexible guide rail composed of adhesive PTFE conductive guide rail is wear-resistant, anti-vibration, and has good accuracy retention; the main shaft adopts a three-support structure with high rigidity. High precision and powerful cutting. The sliding box has a fast moving body.

    Machine Parameters
    ModelCW6163B / CW6263BCW6180B / CW6280B
    Max. swing diameter over bed630mm800mm
    Max. swing diameter over carriage350mm480mm
    Max. work piece length1000.1500, 2000, 3000, 4000, 5000, 6000, 7000

    1500,3000,4000,5000,

    6000,7000mm

    Max. swing diameter and width in gap800/300mm1000/300mm
    Spindle bore and nose104,D11(B series)104,D11(B series)
    Taper in spindle nose and center120(B series) Morse NO.5120(B series) Morse NO.5
    Steps and range of spindle speeds18speeds 7.5-1000(B series) r/min18speeds 5.4-720(B series) r/min
    Steps and range of longitudinal feeds64feeds 0.05-24.3 mm/r64feeds 0.06-24.3 mm/r
    Range 1:10.1-1.52 mm/r0.1-1.52 mm/r
    Range 16:11.6-24.3mm/r1.6-24.3mm/r
    Range of fine feed with change gears0.05-0.912mm/r0.05-0.912mm/r
    Longitudinal and cross feed rate1/21/2
    Quick movement of saddle4000mm/min4000mm/min
    Screw pitch12(metric);1/2''(whitworth)12(metric);1/2''(whitworth)
    Number and range of metric thread50kinds 1-24050kinds 1-240
    Number and range of whitworth thread26kinds 14-126kinds 14-1
    Number, range of module thread53kinds 0.5-120mm53kinds 0.5-120mm
    Number, range of diametral thread24kinds 28-1D P24kinds 28-1D P
    Max. cross travel of lower slide420mm500mm
    Max. travel of top slide200mm200mm
    Max. travel of tailstock quill250mm250mm
    Taper of tailstock quillMorse NO.5Morse NO.5
    Width and hardness of bed guideways550 RC52mm600 RC52mm
    Main motor power11kW11/15kW
    Rapid motor power1.1kW1.1kW
    Power of coolant pump motor120W120W
    Machine W×H1380×14501450x1630
    Max. payload of workpiece2.5t2.5t

    Packaging & Shipping


    FAQ

    a: How can I choose the most suitable machines ?
    A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .

    b: What's your main products of your company?
    A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .


    c. What is your trade terms?
    A : FOB, CFR and CIF all acceptable.


    d: What's the Payment Terms ?
    A : T/T ,30% initial payment when order ,70% balance payment before shipment ;


    e: What's the MOQ?
    A: 1 set .


    We want to know:

    a.What's your Industrial Voltage?

    b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!

    c.If need CIF Price, please kindly tell us the port of destination.
