    Manual Universal Conventional Lathe Machine CA6150A CA6250A

    Ask Lasest Price
    Brand Name : smtcl symg
    Model Number : CA6150A/CA6250A
    Certification : CE ISO
    Supply Ability : 20 Set/Sets per Month
    Price : Negotiable
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Manual Universal Conventional Lathe Machine CA6150A CA6250A

    CA6150A/CA6250A Conventional Manual Lathe Machine Tool Price China Universal Lathe Tool Manufacturer Supplier


    Machine Parameters

    ItemUnitCA6140A/ CA6240ACA6150A/ CA6250ACA6161A/ CA6261A
    Max. swing dia over bedmm400500610
    Max. swing dia over carriagemm210300370
    Max swing dia over saddle/ Width of saddlemm630*210720*210830*210
    Max workpiece lengthmm750/650;1000/900;1500/1400;2000/1900
    Width of bed / hardness mmmm400, Rc52400, Rc52400, Rc52
    Section of turning toolsmm25x2525x2525x25
    Spindle speed ranger/min11-1600(24)11-1600(24)11-1600(24)
    Spindle bore and nosemm52 A652 A652 A6
    Taper of spindle noseMorse 6#Morse 6#Morse 6#
    Range of longitudinal feedStandardmm/r0.08-1.590.08-1.590.08-1.59
    small feedmm/r0.028-0.0540.028-0.0540.028-0.054
    enlarge feedmm/r1.71-6.331.71-6.331.71-6.33
    Rang of cross feedStandardmm/r0.04-0.790.04-0.790.04-0.79
    small feedmm/r0.014-0.0270.014-0.0270.014-0.027
    enlarge feedmm/r0.86-3.160.86-3.160.86-3.16
    Travel of cross slide / top turret travelmm320/140320/140420/140
    Swiveling angle of compound slidedegree±90±90±90
    Rapid travel carriagem/min444
    Rapid travel of cross slidem/min222
    Travel of tailstock spindlemm150150150
    Diameter of tailstock spindlemm757575
    Taper of tailstock spindleMorse 5#Morse 5#Morse 5#
    Metric thread(kinds)mm1-192(44)1-192(44)
    Whitwhorth thread(kinds)t.p.i2-24(21)2-24(21)2260
    Modular thread(kind)mm0.25-48(39)0.25-48(39)2437
    Diameter Pitch(kinds)D.P1-96(37)1-96(37)2787
    Main motorkW7.57.57.5
    New weight of machine750mmkg1990
    1000mmkg207021402260
    1500mmkg222022902437
    2000mmkg257026402787
    Overall dimensions(L×W×H)750mmmm2418*1000*1267
    1000mmmm2668*1000*12672668*1037*13122668*1130*1367
    1500mmmm3168*1000*12673168*1037*13123168*1130*1367
    2000mmmm3668*1000*12673668*1037*13123668*1130*1367
    Product Introduction

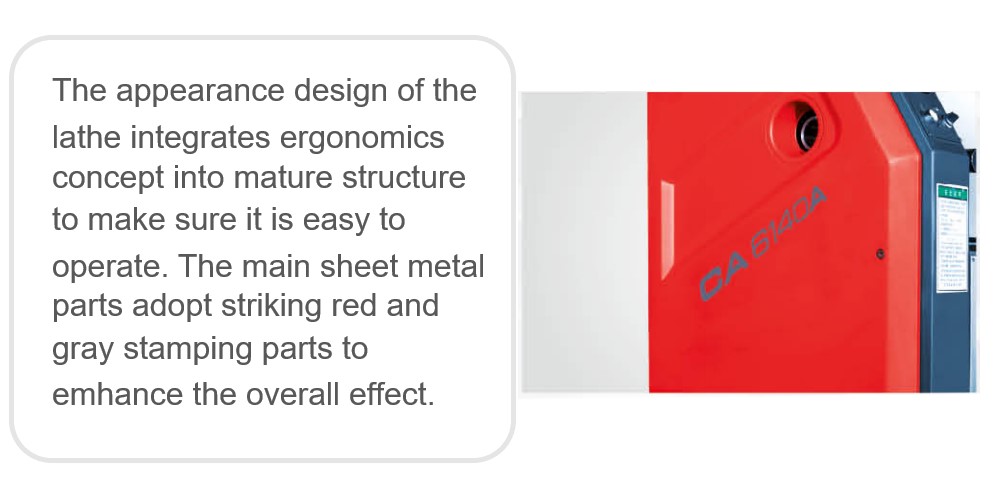

    CA Conventional Manual Lathe


    Packing & Delivery
