    Universal Heavy Duty Horizontal Lathe Machine CW6180E CW6280E

    Ask Lasest Price
    Model Number : CW6180E/CW6280E
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

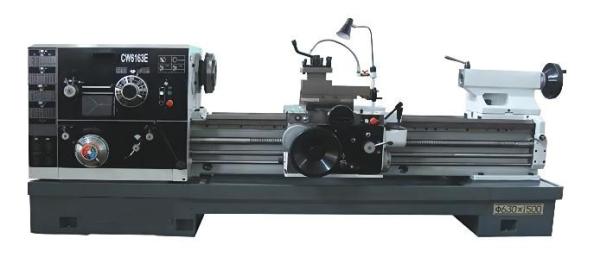

    Universal Heavy Duty Horizontal Lathe Machine CW6180E CW6280E

    CW6180E/CW6280E China Universal Heavy Duty Horizontal lathe machine


    Product Presentation

    • This machine tool is widely applied to the cutting operations of various spare parts, including end face, conical face, excircle, internal hole, metric thread, English standard thread, module thread, diametrical pitch thread, etc.
    • In addition, it is applicable to the technologies such as drilling, hole-reaming, jacketing, boring, groove-cutting, etc.
    • Hard alloy tools may be utilized to cut the screw threads and machine various ferrous metals and nonferrous metals.

    Product Configuration


    Product modelUNITCW6163ECW6263ECW6180ECW6280ECW61100ECW62100E
    specification
    Max. swing diameter over bedmmØ630Ø800Ø1000
    Max.swing diameter over cross slidemmØ350Ø480Ø710
    Max.swing diameter in gapmmØ800Ø1000Ø1230
    Length in gapmm350350350
    Max. workpiece lengthmm1000/1500/2000/3000/4000/5000/6000
    Max. cutting lengthCW61xxxmm850/1350/1850/2850/3850/4850/5850
    CW62xxx600/1100/1600/2600/3600/4600/5600
    Spindle
    spindle noseC11 *D11
    Spindle boremmØ100(C11)(Allowable bar diameterØ98)
    *Ø105(D11)(Allowable bar diameter≤Ø103)
    opt:Ø130(Allowable bar diameter≤Ø128)
    Chuck sizemmØ315Ø400Ø400
    Taper of spindle boreMetric 120(1:20)
    Opt:Spindle bore Ø130- Metric 140(1:20)
    Max.Spindle torqueNm2400
    Spindle speed rangesrpm7.5-1000(18 speeds)
    Spindle centre heightmm315400515
    Spindle motor power11kw/1460rpm(50HZ) Opt:15kw/1460rpm(50HZ)
    Tailstock
    Diameter of tailstock quillmmØ100
    Travel of tailstock quillmm250
    Taper of tailstock quillNo.6 MT
    Feeds&Threads (metric screw *inch screw)
    Longitudinal feedmetric screwmm/r64 Speeds 1/1 0.1-1.52 16/1 1.6-24.3
    inch screwin/r64 Speeds *1/1 0.00190.0612 *16/1 0.0305-0.98
    Cross feed1/2 times of the longitudinal feed
    Metric threadsmm0.5240 (52 Kinds)
    *1-256 (57 Kinds)
    1-240 (50 Kinds)
    *1-256 (57 Kinds)
    0.5240 (52 Kinds)
    *1-256 (57 Kinds)
    Modular threadsmm0.5 120 (53 Kinds) *0.5 128 (57 Kinds)
    Inch threadsTPI28-1(34 Kinds)
    *32
    1/16(67 Kinds)
    14-1(26 Kinds)
    *32-1/16(67 Kinds)
    28-1(34 Kinds)
    *32-1/16(67 Kinds)
    Diametral pitch threadsDP28-1(24 Kinds) *321/8(57 Kinds)
    Tool post
    Max.tool shank sizemm30X30
    Travel of top slidemm200
    Swivel angle of top slide±90°
    machine dimensions
    (L*W*H)
    mm3180X1340X1830(1000) 3630X1340X1830 (1500) 4230X1340X1830(2000) 5130X1340X1830(3000) 6040X1430X1830(4000) 7120X1430X1830(5000) 8240X1430X1830(6000)3180X1380X1830(1000) 3630X1380X1830(1500) 4230X1380X1830 (2000) 5130X1380X1830 (3000) 6040X1470X1830 (4000) 7120X1470X1830 (5000) 8240X1470X1830(6000)3180X1460X1830(1000) 3630X1460X1830 (1500) 4230X1460X1830(2000) 5130X1460X1830(3000) 6040X1550X1830 (4000) 7120X1550X1830(5000) 8240X1550X1830(6000)
    Machine weightCW61xxxkg3900/4200/4500/5000/
    5800/6500/7300
    4100/4400/4700/5200/
    6500/7200/7700
    4350/4650/4950/5450/
    6800/7300
    CW62xxx4050/4350/4650/5150/
    5950/6650/7450
    4250/4550/4850/5350/
    6600/7300/7850
    4500/4800/5100/5600/
    6950/7450

    Standard configurations
    3-Jaw chuck4-way tool post
    Steady rest(3000mm-Standard <3000mm-Option)
    Follow rest(3000mm-Standard <3000mm-Option)
    Standard toolkit

    Optional configurations
    4-Jaw chuckChuck guard
    Tool post guardRear splash guard
    Ø130Diameter of spindle bore15kW spindle motor
    Center of tailstockFace plateThread dial
    Drive plateTaper-turning attachmentDRO
    Anchor boltsSpindle center and center sleeve
    Adjustable padsFoot brake(1000mm~3000mm Available)

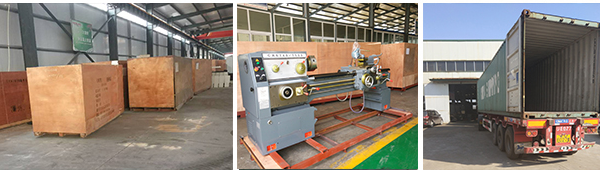

    Packing and Delivery
