    13.3-Inch Windows Touch Embedded Monitor for Retail Checkouts, Interactive Digital Signage, Smart Home Hubs, and Control Panels

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-RM133SWT
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    13.3-Inch Windows Touch Embedded Monitor for Retail Checkouts, Interactive Digital Signage, Smart Home Hubs, and Control Panels

    13.3-Inch Windows Touch Embedded Monitor for Retail Checkouts, Interactive Digital Signage, Smart Home Hubs, and Control Panels

    Upgrade of the Transportation Ticketing System, 13.3-inch Embedded Touch Industrial Tablet Brings Convenient Ticketing Experience


    In the transportation industry, the convenience and stability of the ticketing system are crucial for enhancing user experience and ticketing efficiency. The 13.3-inch embedded touch industrial tablet, with its high-definition display and convenient touch operation, brings a brand new experience to the transportation ticketing system.

    13.3-inch Embedded Touch Industrial Tablet: High Definition Display, Enhancing User Ticketing Experience

    In the transportation ticketing system, the 13.3-inch embedded touchscreen industrial tablet provides users with a clear perspective due to its high-definition display. It not only accurately presents route information and ticket prices but also operates various control software stably, offering users a convenient operating platform. Moreover, its durable design allows it to operate stably for a long time in busy transportation environments.

    13.3-inch embedded display industrial touchscreen all-in-one machine: stable operation, enhancing system reliability

    At the same time, the 13.3-inch embedded display industrial touchscreen all-in-one machine also plays an important role in the transportation ticketing system. It not only runs various systems stably but also is compatible with various control software, providing the operator with more accurate data. Additionally, its silent design and low power consumption make it suitable for use in quiet environments.

    LCD Panel ParametersScreen Size13.3 Inch
    Display Area294 mm.(Height) X 165.5(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1920 X 1080
    Display Color262K, 45% NTSC
    Brightness220cd/
    Contrast Ratio800 : 1
    Viewing Angle (Up/Down/Left/Right)85°/85°/85°/85° (Type)(CR≥10)
    Response Time30ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    PCAP Touchscreen Panel ParametersTouch PatternProjected Capacitive Touchscreen Monitor
    Touch Points10 Points
    Cover GlassMorse Glass Size 7 Physically reinforced to prevent explosion
    Glass 3 mm. Optical mount to reduce parallax
    Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
    Response Speed< 6ms
    Touch AccuracyMore than 90% of the touch area ±2 mm
    Touch MethodInch Stylus
    Output FormatCoordinate Output
    Click TimeUnlimited
    Smallest Touch Size5 mm
    Long-lasting DurabilityYes, Available
    Touch InterfaceUSB
    Operating Temperature and HumidityBelow 10 ~ +50, ≤ 85%RH
    Storage Temperature and HumidityLess than 20 ~ +60, ≤ 90%RH
    Audio parametersAudio systemStereo
    Speaker size≈ 99 x 45 x 20 mm
    Impedance8 Ohm
    Power2 x 5 Watt
    Loudness> 80 Decibel
    Interface4-pin connector
    Internal computer configuration
    (Choose one of two)
    CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
    Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
    RAM4GB8GB
    Storage Memory Capacity128GB256GB
    OSWin10 or win11 OptionalWin10 or win11 Optional
    Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
    Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
    Audio FormatMP3, WMA
    Photo FormatBMP, JPEG, PNG, GIF etc.
    Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
    HDMI1
    USB4
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 25 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60

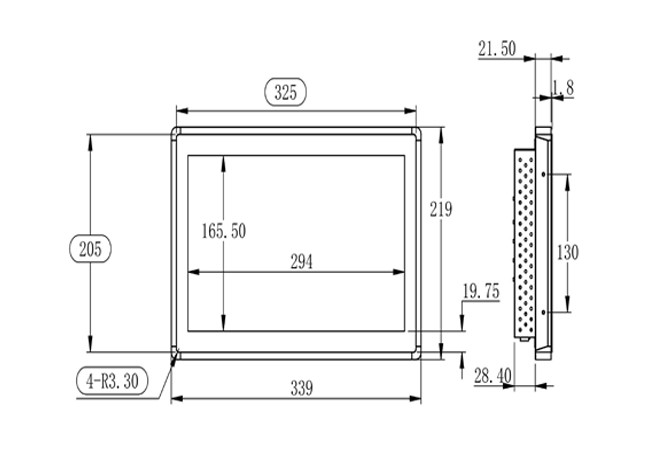

    Package SizeDevice Dimensions339 X 219 X 51.7mm.
    Net Weight3 Kilogram
    Package Size38.9 X 27.4 X 11Centimeter
    Gross Package Weight per Unit4 Kilogram

    The 13.3-inch embedded touchscreen industrial tablet and the 13.3-inch embedded display industrial touchscreen all-in-one machine, with their high-definition display effects and stable operation, are becoming a new choice for transportation ticketing systems. They not only enhance the user ticketing experience but also improve the reliability of the system. In the future, with the continuous advancement of technology, they will play a greater role in the transportation industry.
