    10.1-Inch Windows Touch Embedded Screen for Kiosks, Medical Systems, Industrial Automation, and Smart Payment Terminals

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-RM101SWT
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    10.1-Inch Windows Touch Embedded Screen for Kiosks, Medical Systems, Industrial Automation, and Smart Payment Terminals

    10.1-Inch Windows Touch Embedded Screen for Kiosks, Medical Systems, Industrial Automation, and Smart Payment Terminals

    10.1-inch intelligent embedded touchscreen display: a visual revolution in the virtual reality (VR) industry.


    With the continuous advancement of virtual reality (VR) technology, immersive experiences have become a hot topic in various fields such as entertainment and education. However, to achieve a true sense of immersion, not only is a high-performance VR headset required, but also a powerful platform capable of centrally displaying and controlling VR content. The 10.1-inch smart embedded touchscreen display has become one of the key technologies driving the VR industry forward with its outstanding display effect and convenient touch operation.


    10.1-inch Smart Embedded Touchscreen Display - The New Standard for VR Content Presentation

    In virtual reality applications, the presentation of content and interactive experience are crucial. The 10.1-inch smart embedded touchscreen display offers a stunning visual experience with its large screen size and high definition resolution. Whether used to showcase spectacular scenes in VR games or as a teaching tool to demonstrate virtual laboratories, this display ensures that every detail comes to life. Moreover, its embedded design is not only aesthetically pleasing but also space-saving, making it suitable for installation in various environments.


    Virtual Reality Interaction and Management - 10.1-inch Smart Touch Display

    In addition to providing excellent display effects, the 10.1-inch smart touch display also supports multi-touch technology, allowing users to interact with the virtual world more naturally. Whether it's a light touch, swipe, or pinch to zoom, precise control over VR content can be achieved. For game developers, this means the ability to create more immersive game interfaces; for educators, it means designing more vivid teaching scenarios. In addition, this display also boasts powerful connectivity, allowing easy integration with various VR devices, making content management and updates simpler and more efficient.

    LCD Panel ParametersScreen Size10.1 Inch

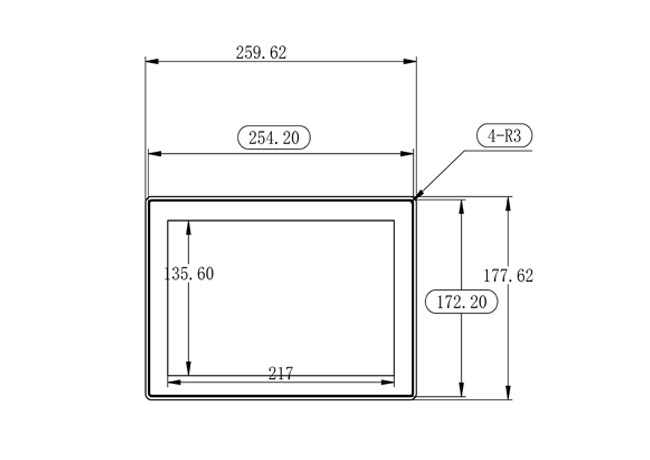

    Display Area217 mm.(Height) X 135.6(Width)mm.
    Aspect Ratio16 : 916 : 10
    LCD Typea-Si TFT-LCD Monitora-Si TFT-LCD Monitor
    Maximum Resolution1280 X 8001920 X 1200
    Display Color16.7M, 50% NTSC16.2M , 50% NTSC
    Brightness400cd/1000cd/
    Contrast Ratio900 : 11000 :1
    Viewing Angle (Up/Down/Left/Right)85°/85°/85°/85° (Type)(CR≥10)80°/80°/80°/80° (Type)(CR≥10)
    Response Time30ms30ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    PCAP Touchscreen Panel ParametersTouch PatternCapacitive Touchscreen Capacitive Projected
    Touch Points10 Points
    Cover GlassPhysical toughened Morse magnitude 7 explosion-proof
    Glass 3 mm. Optical mount to reduce parallax
    Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
    Response Speed< 6ms
    Touch AccuracyMore than 90% of the touch area ±2 mm
    Touch MethodInch Stylus
    Output FormatCoordinate Output
    Click TimeUnlimited
    Smallest Touch Size5 mm
    Long-lasting DurabilityYes, Available
    Touch InterfaceUSB
    Operating Temperature and HumidityBelow 10 ~ +50, ≤ 85%RH
    Storage Temperature and HumidityLess than 20 ~ +60, ≤ 90%RH
    Internal computer configuration
    (Choose one of two)
    CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
    Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
    RAM4GB8GB
    Storage Memory Capacity128GB256GB
    OSWin10 or win11 OptionalWin10 or win11 Optional
    Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
    Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
    Audio FormatMP3, WMA
    Photo FormatBMP, JPEG, PNG, GIF etc.
    Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
    HDMI1
    USB4
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 15 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60
    Stereo Speaker Length1.5m
    Package SizeDevice Dimensions259.62 X 177.62 X 41.6 mm.
    Net Weight2 Kilogram
    Package Size31 X 23.3 X 11Centimeter
    Gross Package Weight per Unit4 Kilogram


    The 10.1-inch smart embedded touchscreen display brings a dual innovation in visuals and technology to the virtual reality industry with its outstanding performance and user-friendly interaction design. Whether enhancing user experience or promoting content creation, this display has demonstrated its immense potential in the VR field.
