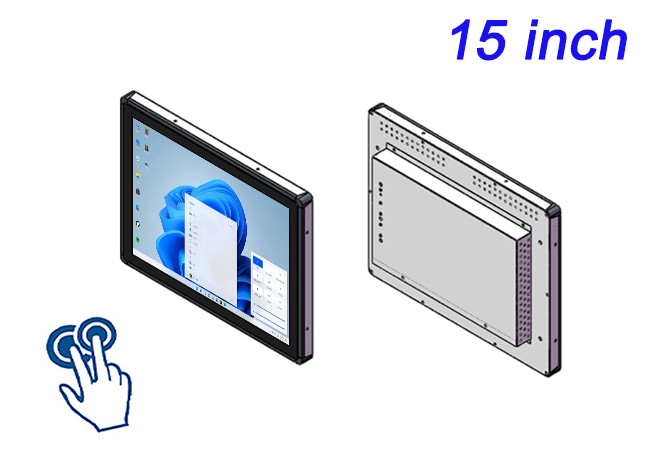

    15-Inch Windows Touch Embedded Screen for Security Monitoring, Factory Automation, Warehouse Management, and Transportation Displays

    Ask Lasest Price
    Brand Name : ZXTLCD
    Model Number : ZXTLCD-RM150SWT
    Certification : CE/Rohs/FCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 pcs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    15-Inch Windows Touch Embedded Screen for Security Monitoring, Factory Automation, Warehouse Management, and Transportation Displays

    15-Inch Windows Touch Embedded Screen for Security Monitoring, Factory Automation, Warehouse Management, and Transportation Displays

    Upgrade of Smart Track Personnel Detection System, 15-inch Capacitive Touchscreen Display Industrial Grade Brings Accurate Monitoring


    In the sports and fitness field, the accuracy and stability of the Smart Track Personnel Detection System are crucial for enhancing user experience. The 15-inch capacitive touchscreen display industrial grade, with its high definition display and stable performance, provides a brand new monitoring experience for the Smart Track Personnel Detection System.

    15-inch Capacitive Touchscreen Display Industrial Grade: High Definition Display, Enhancing Monitoring Accuracy

    In the Smart Track Personnel Detection System, the 15-inch capacitive touchscreen industrial-grade display provides a clear perspective for the user with its high-definition display effect. It not only accurately displays the dynamics of personnel on the track but also operates stably with various monitoring software, providing a convenient operating platform for the user. Moreover, its durable design allows it to operate stably for a long time in outdoor environments.

    15-inch External Industrial Display: Stable Operation, Enhancing System Reliability

    At the same time, the 15-inch external industrial display also plays an important role in the Smart Track Personnel Detection System. It not only operates stably with various systems but also is compatible with various monitoring software, providing the user with more accurate data. Additionally, its silent design and low power consumption make it suitable for use in quiet environments.

    LCD Panel ParametersScreen Size15 Inch
    Display Area304.2 mm.(Height) X 228(Width)mm.
    Aspect Ratio16 : 9
    LCD Typea-Si TFT-LCD Monitor
    Maximum Resolution1024 X 768
    Display Color262K/16.2M , 72% NTSC
    Brightness300cd/
    Contrast Ratio1500 : 1
    Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
    Response Time15ms
    LCD Panel Lifespan (Hours)60,000(Hour.)
    Field Frequency60Hertz
    PCAP Touchscreen Panel ParametersTouch PatternProjected Capacitive Touchscreen Monitor
    Touch Points10 Points
    Cover GlassPhysical toughened Morse magnitude 7 explosion-proof
    Glass 3 mm. Optical mount to reduce parallax
    Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
    Response Speed< 6ms
    Touch AccuracyMore than 90% of the touch area ±2 mm
    Touch MethodInch Stylus
    Output FormatCoordinate Output
    Click TimeUnlimited
    Smallest Touch Size5 mm
    Long-lasting DurabilityYes, Available
    Touch InterfaceUSB
    Operating Temperature and HumidityBelow 10 ~ +50, ≤ 85%RH
    Storage Temperature and HumidityLess than 20 ~ +60, ≤ 90%RH
    Internal computer configuration
    (Choose one of two)
    CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
    Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
    RAM4GB8GB
    Storage Memory Capacity128GB256GB
    OSWin10 or win11 OptionalWin10 or win11 Optional
    Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
    Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
    Audio FormatMP3, WMA
    Photo FormatBMP, JPEG, PNG, GIF etc.
    Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
    HDMI1
    USB4
    PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
    Maximum Power Loss≤ 25 Watt
    Standby Mode Power Loss< 1 Watt
    FeaturesOperating Temperature0 ~ 50
    Storage TemperatureBelow 10 ~ +60
    Package SizeDevice Dimensions351 X 275X 51.7mm.
    Net Weight5 Kilogram
    Package Size41.2 X 34 X 11Centimeter
    Gross Package Weight per Unit5.5 Kilogram

    The 15-inch capacitive touchscreen display industrial grade and the 15-inch external industrial display, with their high-definition display effect and stable operation, are becoming a new choice for the Smart Track Personnel Detection System. They not only enhance monitoring accuracy but also improve the reliability of the system. In the future, with the continuous advancement of technology, they will play a greater role in the sports and fitness field.
