    NB3LE-40 Earth Circuit Breaker 10~40A 1P+N 220/230/240V EN/IEC60898 IEC60947

    Ask Lasest Price
    Brand Name : Chint
    Model Number : NB3LE-40
    Certification : CCC, CE, GS etc.
    Price : USD10~15/unit
    Payment Terms : T/T, Western Union
    Supply Ability : 100,000 pcs/month
    Delivery Time : 2~15days
    • Product Details
    • Company Profile

    NB3LE-40 Earth Circuit Breaker 10~40A 1P+N 220/230/240V EN/IEC60898 IEC60947

    Chint NBL3E-40 Earth Leakage Circuit Breaker with Overload Protection 10~40A 1P+N for AC230/400V Use


    RCBO, ELCB NB3LE-40

    CHINT Made In China

    AC Use Earth Leakage Circuit Breakers


    Miniature Circuit Breakers for AC Current circuits, offering terminal distribution installation protection


    The NB3LE-40 is a miniature circuit breaker that offers AC current circuit protection. It protects circuits against short-circuit currents and overload currents.

    NB3LE-40 mini circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteris in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product with long life, is mainly used in AC 50Hz/60Hz single-pole 240 or two three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898 & BS 3711.

    • Compliant with IEC60898, IEC61009

    • Available in 1P+N

    • C tripping curve

    • Up to 500V AC.

    NB3LE MCB combines the following functions:
    b Protection of circuits against short-circuit currents
    b Protection of circuits against overload currents
    b Control
    b isolation


    Specification Table

    Standard

    Rated Current (A)

    Pole

    Voltage(V)

    Breaking Capacity(A)

    BS3871-1 IEC60898

    10 to 40

    1P+N

    230/240

    6kA







    CONSTRUCTION AND FEATURE
    . Capable of switch electric circuit with load
    . Capable of quickly releasing stored energy operation
    . Adaptable to padlock device
    . Contact position indication
    . High short-circuit current withstand capacity
    . High lighted of high making and breaking capacity
    . Used as main switch for household and similar installation

    TECHNICAL DATA
    . Pole NO.:1P+N
    . Rated Current(A):10,16,20,25,32,40
    . Rated frequency: 50/60Hz
    . Rated voltage: 230/400V AC
    . Rated withstand current: 1000A Within lesc
    . Electro-mechanical endurance: 10000 Cycles
    . Rated short-circuit making capacity: 4500A, 6000A
    . Connection Capacity: Rigid conductor 25mm2
    . Connection Terminal:
    . Screw terminal
    . Pillar terminal with lamp
    . Installation:
    . Panel mounting

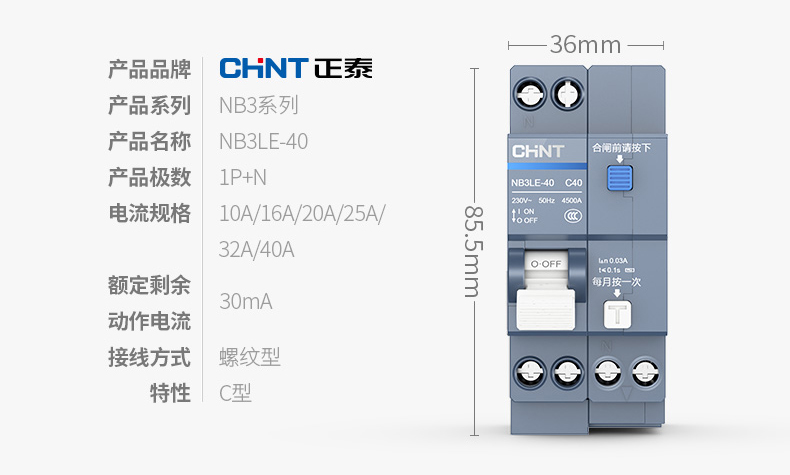

    OVERALL & INSTALLATION DIMENSIONS



    Standard



    IEC/EN 61009-1

    Mechanical
    features

    Electrical life



    4000

    Mechanical life



    10000

    Protection degree



    IP20

    Reference temperature for
    setting of thermal element

    30

    Ambient temperature(with daily
    average≦35℃

    -5..+40

    Storage temperation



    Installation

    Terminal connection type



    Cable//U-type busbar/pin-type busbar

    Terminal size top/bottom for cable

    mm2

    25

    AWG

    18-3

    Terminal size top/bottom for busbar

    mm2

    25

    mm2

    18-3

    Tightening torque

    N*m

    2

    In-Ibs.

    18

    Mounting



    On DN rail EN 60715(35mm)by meas of fast clip device

    Connection



    From top and bottom


    Rated current
    In (A)

    Temperature compensation coefficient under various operational temperature

    -10℃

    0℃

    10℃

    20℃

    30℃

    40℃

    50℃

    55℃

    60℃

    6

    1.2

    1.14

    1.09

    1.05

    1.00

    0.96

    0.8

    0.75

    0.7

    10-32

    1.18

    1.12

    1.08

    1.04

    100

    0.96

    0.92

    0.88

    0.84

    40

    1.16

    1.12

    1.07

    1.03

    1.00

    0.97

    0.87

    0.83

    0.80




    Standard



    IEC/EN 61009-1

    Electrical
    features

    Rated current In

    A

    6,10,16,20,25,32,40,50,63

    poles



    1P+N,2P,3P,4P

    Rated voltage Ue

    V

    230/400

    Insulation voltage Ui

    V

    500

    Rated frequency

    Hz

    50/60Hz

    Rated breaking capacity

    KA

    6000

    Rated impelse withstand voltage(1.2/50)UimpStandard

    V

    4000

    Dielectric test voltage at ind,Fred,for 1 min

    KV

    2

    Polluttion degree



    2

    Themo-magnetic release characteristis



    B,C,D
