    Acti9 C120 Industrial Circuit Breaker 63A~125A, 1P,2P,3P,4P for Circuit Protection AC230V/400V Home or Industrial Use

    Ask Lasest Price
    Brand Name : Schneider Electric
    Model Number : C120
    Certification : CCC, CE, GS etc.
    Price : USD1~15/unit
    Payment Terms : T/T, Western Union
    Supply Ability : 100,000 pcs/month
    Delivery Time : 2~15days
    • Product Details
    • Company Profile

    Acti9 C120 Industrial Circuit Breaker 63A~125A, 1P,2P,3P,4P for Circuit Protection AC230V/400V Home or Industrial Use

    Acti9 C120

    CHINT Made In China

    AC Use Miniature Circuit Breakers 63~125A,


    Miniature Circuit Breakers for AC Current circuits, offering terminal distribution installation protection


    C120H circuit breakers are multistandard circuit breakers that combine the following functions:
    - Protection of cables against overloads and short-circuits in final distribution
    - Manual control and isolation
    - Earth leakage protection when combined with a Vigi C120 module without temperature derating: compliance with EN 61009
    - Remote tripping, indication, by adding auxiliaries common to the entire C65 range.

    • Compliant with IEC60898-1, IEC60947-2

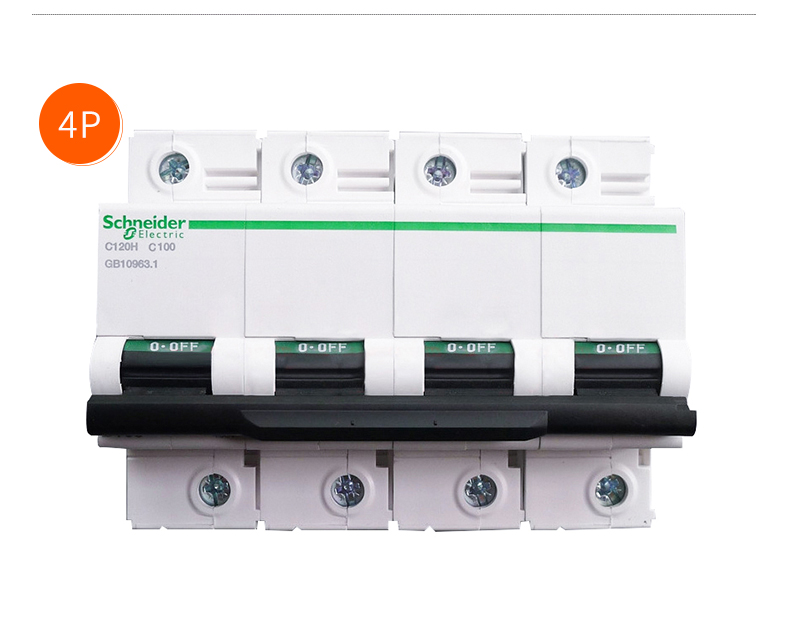

    • Available in 1P, 2P 3P, 4P
    • C, D tripping curve
    • Up to 500V AC.


    General rules for choosing MCB
    Technicala data of the network at the point considered:
    The earthing systems(TNS,INC),Shrot-circuit current at the circuit-breaker installatino point,which must always be less than the breaking capacity of this device,Networl normal voltage.

    DIN rail Miniature Circuit Breakers (MCB) offering circuit protection against short-circuit and overload currents. Suitable for isolation in compliance with IEC 60947

    • Features

    Acti9 C120 DIN rail, miniature circuit breakers offer extensive features that provide maximum safety and continuity of service while minimizing service and intervention time:

    • Nominal current: 63 to 125 A
    • Large choice of breaking capacities and tripping curves (B, C, D)
    • Compliant with IEC EN 60898 or IEC 60947-2 depending on the version
    • Suitable for isolation: compliant with IEC 60947
    • VisiSafe provides a visible green indicator showing which circuits are disconnected and safe for maintenance operations
    • Operating voltage: up to 440 V AC
    • Insulation voltage: 500 V AC
    • IP20 terminal insulation
    • Optional add-on residual current device modules: Acti9 C120 Vigi
    • Optional electrical auxiliaries for remote Open/closed status or remote tripping of Acti9 C120 circuit breaker with shunt, overvoltage and undervoltage release.


    Benefits

    Longer product service life thanks to:

    • Good overvoltage withstand capacity: products are designed to offer a high industrial performance level (degree of pollution, rated impulse withstand voltage and insulation voltage)
    • High limitation performances
    • Fast closure independent of toggle operating speed.

    Applications

    • Protection of electrical circuits in all industrial and commercial buildings
    • Particularly suited to higher ratings applications.

     Standard IEC/EN 60947-2
    Electrical featuresRated current InA63,80,100,125
    Poles 1P,2P,3P,4P
    Rated voltage UeV230/400
    Insulation voltage UiV500
    Rated frequencyHz50/60
    Rated breaking capacityKa6~10
    Rated impulse withstand voltage(1.2/50)UimpV6000
    Dielectric test voltage at ind.Freq.for 1 minKv2.5
    Pollution degree 3
    Thermo-magnetic release characteristic 8-12In
    Mechanical
    features
    Electrical life 1500(In=63A,80A,100A)
    1000(In=125A)
    Mechanical life 8000(In=63A,80A,100A)
    7000(In=125A)
    Contact position indicator Yes
    Pollution degree IP20
    Standard IEC/EN 60947-2
    Reference temperature for
    setting of thermal element
    30
    Ambient temperature-5...+40(Special application please refer to P29 for temperature compensation correction)
    Combination
    with
    sccssorles
    (with daily average≦35℃)
    Storage temperation Terminal connection type-25..+70
     Cable/pin-type busbar
    Terminal size top/bottom for cablemm250
    AWG18-1/0
    Terminal size top/bottom for busbarmm250
    AWG18-1/0
    Tightening torqueN*m3.5
    In-Ibs.3.1
    Mounting On DN rail EN 60715(35mm)by meas of fast clip device
    Connection
    Auxilary contact
     From top
    Auxilary contact Yes
    Rated current
    In (A)
    Temperature compensation coefficient under various operational temperature
     -10℃0℃10℃20℃30℃40℃50℃55℃60℃
    631.281.211.141.071.000.840.870.850.82
    801.221.161.111.051.000.950.910.880.86
    1001.221.181.111.051.000.950.910.880.88
    1251.221.161.111.051.000.950.910.880.86
