    16-630A Molded Case Circuit Breaker 25 36 50 70kA 380V 415V Icu IEC-6094

    Ask Lasest Price
    Brand Name : Schneider Electric
    Model Number : EasyPact
    Certification : CE, CB, KEMA/Dekra etc.
    Price : USD100~USD1,200
    Payment Terms : T/T, Western Union
    Supply Ability : 1,000pcs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

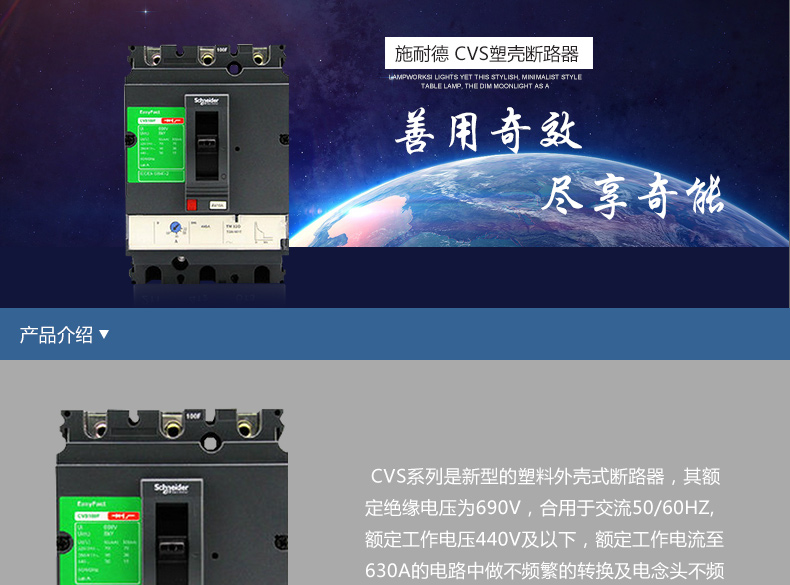

    16-630A Molded Case Circuit Breaker 25 36 50 70kA 380V 415V Icu IEC-6094

    Schneider Electric EasyPact CVS Molded-case circuit breakers from 16 to 630 A 25kA,36kA,50kA,70kA 380V 415V Icu IEC-60947


    Molded-case circuit breakers (MCCB) with adjustable settings, rated from 16 to 630 A, ideal for applications in small to medium-sized buildings.


    The CVS moulded case circuit breaker will provide protection for the circuit and equipment in case of overload, short circuit and under voltage condition occurred in the power distribution circuit. Besides, it can also provide protection of overload, short circuit and under voltage for the non-frequent start of motor.


    Frame size:

    CVS series moulded case circuit breaker:

    E type: 15, 20, 25, 30, 40, 50, 60, 75, 80, 100
    B/F/N/H type:16, 25, 32, 40, 50, 63, 80, 100, 125, 160, 200, 250, 320, 400, 500, 600, 630

    ● Rated operational voltage: Ue (VAC): 400/415/500

    ● Breaking capacity code: E,M,S 25kA,36kA,50kA

    ● Number of poles: 3P, 4P

    ● Release type:

    • thermal magnetic fixed type;

    • electronic type - 630A

    ● Installation method: Fixed type; pulg-in type


    Main

    range of product

    Easypact CVS100...250

    product or component type

    Circuit breaker

    device short name

    CVS250F

    device application

    Distribution

    poles description

    4P

    protected poles description

    4d

    neutral position

    Left

    Earth leakage protection (Vigi add on)

    Without

    [In] rated current

    250 A at 40 °C

    breaking capacity code

    F

    network type

    AC

    [Icu] Breaking capacity

    36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
    36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
    70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2

    utilisation category

    Category A

    trip unit name

    TM-D

    trip unit technology

    Thermal-magnetic

    trip unit rating

    250 A at 40 °C

    protection type

    Overload protection (thermal)
    Short-circuit protection (magnetic)

    Complementary

    network frequency

    50/60 Hz

    control type

    Toggle

    mounting mode

    Fixed

    mounting support

    Backplate

    upside connection

    Front

    downside connection

    Front

    connections - terminals

    Screw connection

    [Uimp] rated impulse withstand voltage

    8 kV conforming to EN/IEC 60947-2

    thermal protection adjustment range

    175…250 A

    [Ics] rated service breaking capacity

    18 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
    36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
    70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2

    mechanical durability

    20000 cycles

    electrical durability

    10000 cycles 415 V In conforming to IEC 60947-2

    connection pitch

    35 mm

    contact position indicator

    Yes

    neutral protection setting

    1 x Ir (4d)

    long time pick-up adjustment type Ir

    Adjustable

    long time pick-up adjustment range

    0.7...1 x In

    long time delay adjustment type

    Fixed

    instantaneous pick-up adjustment type Ii

    Fixed

    instantaneous pick-up adjustment range

    2500 A

    height

    161 mm

    width

    140 mm

    depth

    86 mm

    net weight

    2.6 kg

    Environment

    electrical shock protection class

    Class II

    standards

    EN 60947-2
    IEC 60947-2

    product certifications

    GOST
    IEC

    IP degree of protection

    IP40

    pollution degree

    3 conforming to IEC 60664-1

    ambient air temperature for operation

    -25…70 °C

    ambient air temperature for storage

    -50…85 °C


    Features

    EasyPact CVS range is the easy choice for quality and value.
    Designed to meet the requirements of the majority of common protection applications in small to medium-sized buildings, EasyPact CVS circuit breakers deliver a high level of performance and cost-saving functionality that is unusual in their price range.

    • Rated current from 16 to 630 A

    • Breaking capacity from 25 to 50 kA at 400/415 V

    • 3 and 4 pole versions

    • 3 frame sizes

    • Thermal-magnetic and electronic protection available for the entire range

    • Extended, adjustable thermal protection from 0.7 to 1 times (TMD) or 0.5 to 1 times (electronic) the rating of the trip unit

    • Common accessories and auxiliaries with other Schneider Electric MCCB offers

    • Suitable for isolation

    • Earth-leakage protection by associated Vigi Module

    • Switch-disconnector versions also available

    • Compliance with international standards: IEC 60947-2, CCC, EAC and other local certifications

    • Green Premium product


    Benefits

    • Specifiers – Conforms to international standards: IEC60947-2, and meets the requirements of the majority of common protection applications

    • Panel builders – Ease of installation. Only three frame sizes up to 630 A. Common accessories for complete range. Economic and competitive solution, yet meets major requirements of specifiers and clients

    • OEMs – High endurance and maintenance free operation ensures continuous performance of machines

    • Clients – Well balance of budget and quality, performance, reliability

    Applications

    Protection and management of low-voltage electrical installations:

    • Standard applications: industries, buildings

    • Earth-leakage protection

    • Motor protection

    • Generator protection

    • Switch-disconnectors
