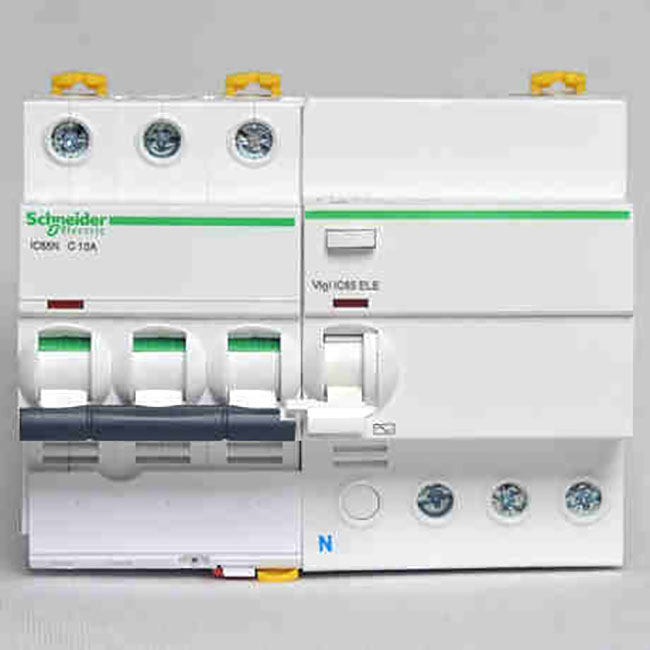

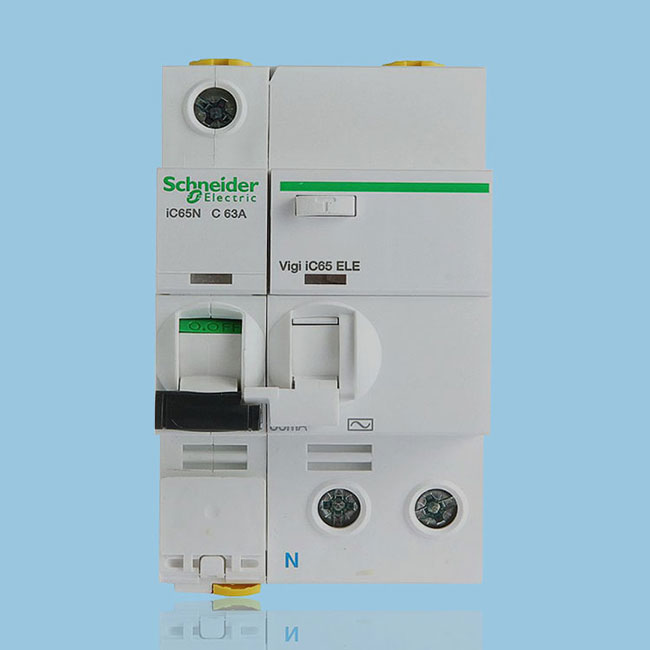

Vigi for Acti 9 iC60 Schneider Electric Residual Current Circuit Breaker DPN, 2P,3P,4P from 10 to 63A

    Buy cheap Vigi for Acti 9 iC60 Schneider Electric Residual Current Circuit Breaker DPN, 2P,3P,4P from 10 to 63A from wholesalers

    Buy cheap Vigi for Acti 9 iC60 Schneider Electric Residual Current Circuit Breaker DPN, 2P,3P,4P from 10 to 63A from wholesalers
    • Buy cheap Vigi for Acti 9 iC60 Schneider Electric Residual Current Circuit Breaker DPN, 2P,3P,4P from 10 to 63A from wholesalers
    • Buy cheap Vigi for Acti 9 iC60 Schneider Electric Residual Current Circuit Breaker DPN, 2P,3P,4P from 10 to 63A from wholesalers
    • Buy cheap Vigi for Acti 9 iC60 Schneider Electric Residual Current Circuit Breaker DPN, 2P,3P,4P from 10 to 63A from wholesalers
    • Buy cheap Vigi for Acti 9 iC60 Schneider Electric Residual Current Circuit Breaker DPN, 2P,3P,4P from 10 to 63A from wholesalers
    • Buy cheap Vigi for Acti 9 iC60 Schneider Electric Residual Current Circuit Breaker DPN, 2P,3P,4P from 10 to 63A from wholesalers

    Vigi for Acti 9 iC60 Schneider Electric Residual Current Circuit Breaker DPN, 2P,3P,4P from 10 to 63A

    Ask Lasest Price
    Brand Name : Schneider Electric
    Model Number : Vigi for Acti9
    Certification : CE,CCC etc.
    Price : USD40~150/unit
    Payment Terms : T/T, Western Union
    Supply Ability : 10,000pcs/month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Vigi for Acti 9 iC60 Schneider Electric Residual Current Circuit Breaker DPN, 2P,3P,4P from 10 to 63A

    Vigi for Acti 9 iC60 Schneider Electric Miniature Circuit Breaker DPN, 2P,3P,4P from 10 to 63A


    Residual current add-on devices up to 63 A for Acti 9 iC60 Miniature Circuit Breakers

    Miniature circuit breaker with overload protection is a kind of electric devices or advanced circuit breaker for both overload/short circuit protection plus earth leakage fault detection (Residual current device). It is widely used is applications from household to industries.


    Part of 9 Series

    Simple to install and ideal for all industrial and commercial buildings, the residual current add-on devices for Acti 9 iC60 provide you with leakage protection whilst ensuring a greater continuity of service.


    • Features

      Fully compliant with national standards and easy to install, the Acti 9 Vigi iC60 comes with a wealth of features:

      • Class-2 insulation: ensures continuous protection for both operators and unqualified personnel.

      • VISI-TRIP: quickly detects faulty outgoers and reduces intervention time.

      • Fully immune earth leakage protection: provides enhanced continuity of service, especially with the new “SI” (Super Immune) type for application in polluted environments and networks.

      • Easily connect to Acti 9 iC60 Miniature Circuit-Breakers (MCBs) either electronically or manually.

      • Nominal current ranges from 25 to 63 A.

      • Comes in “SI” (Super Immune), AC, and A types.

      • 30 mA sensitivity for additional protection against direct contact (in compliance with IEC 60364).

      • 100 mA, 300 mA, 500 mA and 1000 mA sensitivities for additional protection against fire and indirect contact (in compliance with IEC 60364).

      • “SI” (Super Immune) type: protects sensitive circuits (IT equipment) and those prone to disturbances (electronic ballasts for light fixtures, power electronics).

      • Selective type: guarantees selectivity to correctly distinguish between different residual current devices (RCDs) and trip the device closest to the fault.

      • Complies with IEC EN 61009-1 standard, certified by national authorities.

      • Acti 9 iC60 DIN rail miniature circuit breakers (MCBs) retain the same characteristics when combined with an Acti 9 Vigi iC60 DIN rail add-on residual current device (RCD).



      Benefits

      From adding protection to polluted environments and networks to ensuring a greater continuity of service, the Acti 9 Vigi iC60 also boasts impressive environmental credentials.

      • 100% earth leakage protection in final distribution.

      • Greater continuity of service with VisiTrip.

      • Greater electrical immunity with “SI” (Super Immune) type.

      • Meaningful part numbers make selection easy.

      • Easy to install with robust terminal connections.

      • Environmentally friendly, made with 100% recyclable and recoverable materials.

      Applications

      Ideal for installation in all industrial and commercial buildings, residual current add-on devices provide protection against:

      • Electrocution (in compliance with IEC 60364 installation standards and national standards).

      • Fire hazards caused by leakage currents flowing into building materials.



    Main

    range

    Acti 9


    product or component type

    Add-on residual current devices


    device short name

    Vigi iC65


    poles description

    4P


    [In] rated current

    40 A


    earth-leakage sensitivity

    100 mA


    earth-leakage protection time delay

    Instantaneous


    Earth leakage protection type

    Type AC


    network type

    AC


    network frequency

    50/60 Hz


    [Ue] rated operational voltage

    230 V AC 50/60 Hz conforming to GB 16917.22


    standards

    GB 16917.22


    9 mm pitches

    4


    Complementary

    device location in system

    Outgoer


    residual current tripping technology

    Voltage dependent


    range compatibility

    Acti 9 iC60
    Acti 9 Reflex iC60


    product compatibility

    Single terminal


    local signalling

    Trip indicator


    mounting mode

    Clip-on


    mounting support

    DIN rail


    electrical connection to mcb

    By screws


    height

    91 mm


    depth

    73.5 mm


    Environment

    ambient air temperature for operation

    -25…60 °C


    Offer Sustainability

    Sustainable offer status

    Green Premium product


    REACh Regulation

    REACh Declaration


    EU RoHS Directive

    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration


    Mercury free

    Yes


    RoHS exemption information

    Yes


    China RoHS Regulation

    Download RoHS China Declaration
    Product out of China RoHS scope. Substance declaration for your information


    Product name

    residual current circuit breaker, operated circuit breakers, ED81 1 Pole Miniature Circuit Breaker, RCCB circuit breaker, mini rcbo

    Rated frequency

    50/60 Hz, 50Hz, 50 HZ/60HZ

    Breaking capacity

    4.5KA, 4KA/6KA, 6KA/10KA

    Standard

    IEC61008-1, IEC60947-2, GB14048.2/IEC60947-2, ISO9001, IEC60898-1/GB10963.1

    Material

    Copper, High Standard Plastic Silver Copper, Silver Contact, Flame Resistant Plastic, IP20

    Color

    White, White/green, decided by customer, White/Transparent, Black and white

    Mechanical life

    4000 Times, 20000 Times

    Application

    Short-circuit Protection, Electrical Power, earth leakage protection

    Pole

    2P, 4P

    Endurance

    4000

    Curve type

    C, B/C

    Printing

    Standard or customized, Customized

    Protection degree

    Housing IP40, IP 20

    Rated operating voltage

    400V
