    Indoor Mini EDFA Optical Amplifier Module CATV DBC 1550nm With WDM Technology

    Ask Lasest Price
    Brand Name : Fibery
    Model Number : FY-40EA19
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram,Paypal
    Supply Ability : 10000SET/Month
    Delivery Time : 4-6 work days
    • Product Details
    • Company Profile

    Indoor Mini EDFA Optical Amplifier Module CATV DBC 1550nm With WDM Technology

    EDFA Erbium Doped Fiber Amplifier Module Indoor Mini CATV DBC 1550nm EDFA Module

    Description

    1. Indoor Mini CATV DBC EDFA 1550 nm Fiber Optical Amplifier Module

    2. WS-40EAxx DBC EDFA is the design according to the communication level standard, in terms of power, precision and reliability are higher than 14EA series. It is mainly used for television image signals, digital TV, telephone voice signal and the signal of the data (or compressed data) optical fiber transmission over a long distance.

    3. WS-40EAxx Indoor Mini CATV DBC EDFA 1550 nm Fiber Optical Amplifier Module performance indicators meet the requirement of national standard, and technology design pays attention to the product cost, is the choice to build a large and medium-sized 1550nm catv optical fiber transmission network economical transmission device.


    Parameter

    Technical DataWS-40EAxx Mini EDFA
    Wavelength1540~1560nm
    Input Power Range-5dBm~+10 dBm
    Normal Input Power+3 dBm
    Output Optical Power13dBm~26dBm
    Optical ConnectorSC/APC & SC/PC
    Optical Power Stability+0.05dB
    Return Loss(Input/Output)≥45dB
    Pump Leak(Input/Output)≤-30dB
    Supply VoltageDC5V
    Consumption<3.5W
    Working Temp.-5℃~+55℃ or customized
    Relative Humidity95%,no condence
    Storage Temp.-30℃~+70℃
    Net Size231X85X19mm
    Net Weight

    417g


    Product Feature

    • Adopts WDM technology, single fiber to the home(1490/1310/1550nm) triple-play application can be realized.
    • AGC control to guarantee relative stable RF input in different RF in. FTTH Optical Node FTTH Optical Node
    • Small housing suitable for home use.
    • 12V~15VDC power supply. FTTH Optical Node
    • Good parameter, but low power consumption

    Application

    1. CATV FTTH
    2. Integration of three networks
    3. FTTH PON

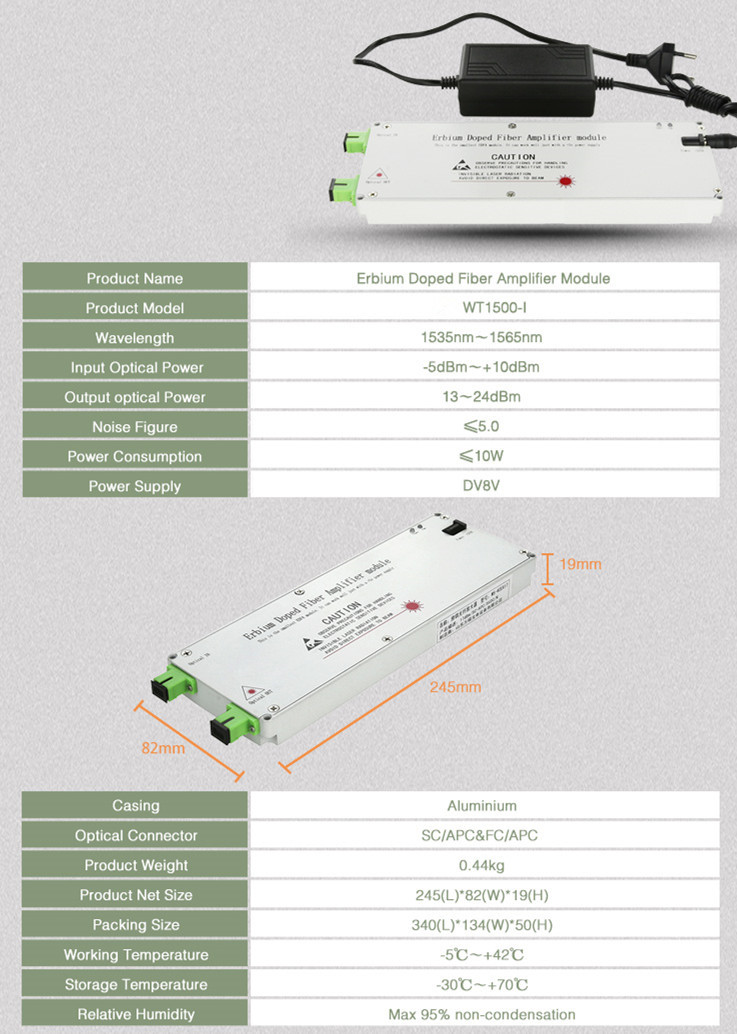

    Product Pictures


    FAQ

    Q1. Can I have a sample order for this product?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?
    A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

    Q3. Do you have any MOQ limit for sample order?
    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

    Q5. How to proceed an order for the product?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.
