16 Port EDFA Optical Amplifier 34dBm 1550 CATV WDM EDFA For Triple Play GPON OLT Network

EDFA Amplifier 16 Output Port 19dBm 1550 CATV WDM EDFA For Triple Play GPON OLT Network

Description

FY-50EYxx style CATV High Power FTTH WDM 34dbm 1550nm EDFA with gain spectrum band within1540~1563nm, which is mainly designed for the application of CATV or 1~8 continuous brandingchannel (ITU wavelength) and also offers a flexible and low-cost solution for CATV large area coverage of large and medium-sized cities.

FY-ErAxx CATV High Power FTTH WDM 34dbm 1550nm EDFA can realize Single wave transmission, CWDM three waves in single fiber, flat gain.DWDM; it is important fiber transmission equipment of building large and medium - sized CATV network, mainly used in FTTH, FTTB, DBS, MMDS, FTTX pon.

Parameter

Feature

• Light output control optional, suitable for a variety of applications
• Multi chip 32 bit RAM processor, control output precision±0.05dbm
• The former adopts EDFA low noise, the output stage with high power EYDFA, -5~+10dbm input range, with extremely low noise figure, the use of bipolar amplification in the input optical power of Pin=0dbm, noise coefficient Typ = 4.5db, Max = 5.0db
• 4.The built-in light detection function, to avoid damage the jumper head
• 5.If the input light is lost, the high power pump laser will turn off automatically, laser safety protection
• 6.Remote control of the output power room, SNMP network management protocol, remote control of various parameters can be achieved
• 7.Telecommunication level, modular product design concept
• 8.Dual power supply, CPU control, power allocation output

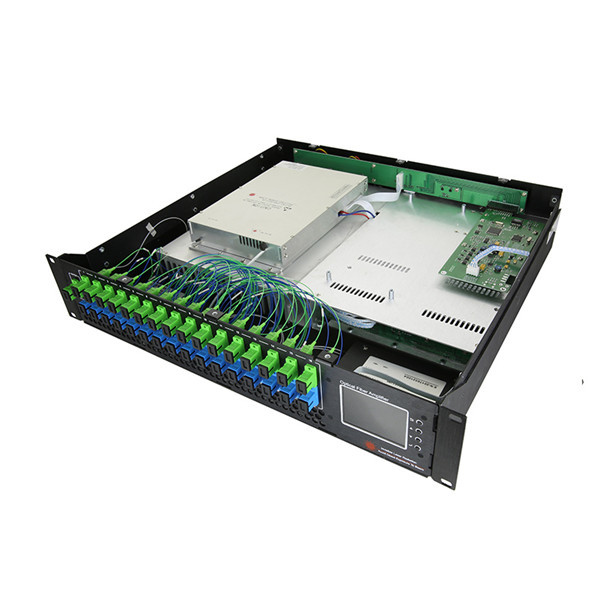

Product Picture
