SC FC Connector FTTH Mini Optical Receiver Single Output With WDM For Cable TV AGC

FTTH Mini Optical Receiver Single Output With WDM For Cable TV AGC

Description

FTTH type optical receiver is a home-based optical receiver cater to the ultimate goal of development of optical access for FTTH (FTTH) network, analog or digital signal can be realized. The equipment uses low-power opticaldetector, GaAs and optical control AGC technology to meet the needs of FTTH CATV reception. Variety of functional products in the application is slightly different.

1310nm/1490nm/1550nm FTTH Mini Node CATV WDM Mini Optical Receiver is a home-based optical receiver, cater to the ultimate goal of development of optical access for FTTH network, analog or digital signal can be realized. The equipment uses low-power optical detector, GaAs and optical control AGC technology to meet the needs of FTTH CATV reception. Variety of functional products in the applications is slightly different.

FTTH type optical receiver OR19C is with AGC, plug-in photocell. OR19W is with WDM and AGC.

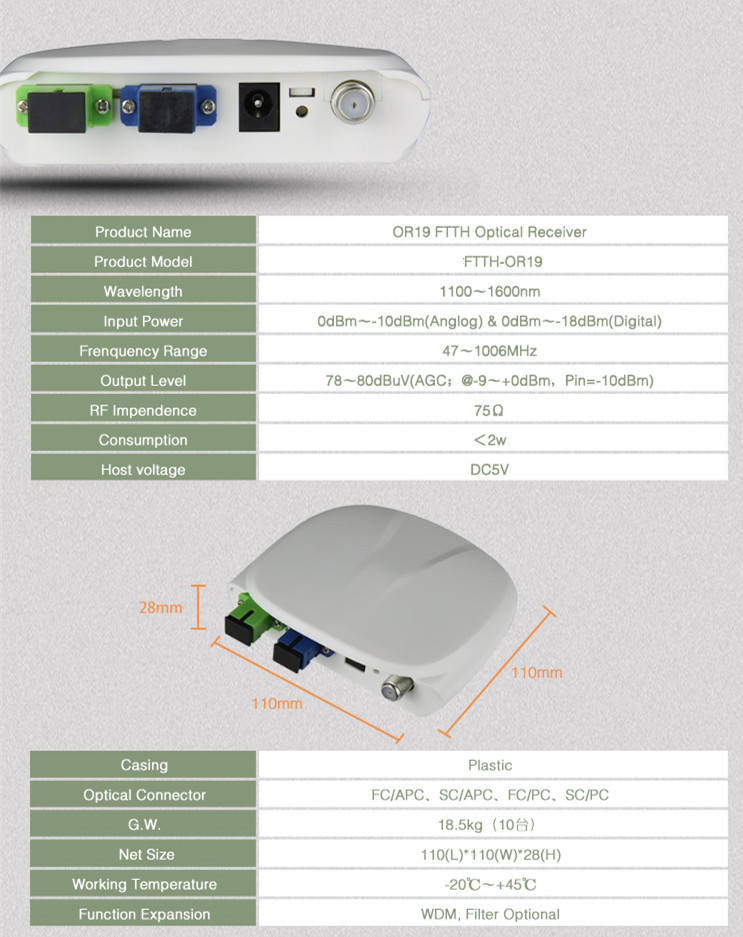

Parameter

Product Feature

• Plastic shell with good heat dispersion.
• Adopts GaAs module as RF amplifying module, the optical receiving range for digital signal can reach -22dBm, and -10dBm for analog signal.
• AGC control range 0~-9dBm, output level keeps unchanged.
• Low consumption design and total consumption ≤3w, high reliable switching power supply with optical inspection circuit.
• SC/APC or FC/APC optical connector
• Anti-high-frequency surge device to protect the GaAs amplifier tube.
• Multi-stage lightning protection devices (TVS transient suppression diodes), lightning protection system closely to ensure the safe operation of equipment
• Realize the 5V input port feeding way of power supply

Application

1.CATV FTTH
2.Integration of three networks
3.FTTH PON

Product Details

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Payment terms

Payment terms

1) Accepted small order,OEM,etc.

2) Ordinary delivery time: 3-7 days, according to order quantity.

3) Ready to shipping by sea ,DHL , Fedex, EMS, as soon as we receive payment

4) Accept T/T 100% advance. Western Union, PayPal.

5) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility
