Ftth Catv AGC Wdm Mini Fiber Optic Receiver2 Rf Output Ports For GEPON System

Name: Ftth Catv AGC Wdm Mini Fiber Optic Receiver2 Rf Output Ports For GEPON System
Brand: Fibery
Price: 1 USD

Ask Lasest Price
Brand Name :	Fibery
Model Number :	FYOR20
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :	100SET/Month
Delivery Time :	4-6 work days

Add to Cart

Product Details
Company Profile

Ftth Catv AGC Wdm Mini Fiber Optic Receiver2 Rf Output Ports For GEPON System

Ftth Catv AGC Wdm Mini Optical Receiver 2 Rf Output Ports For GEPON System

Description

OR20 style CATV FTTH AGC wdm mini optical receiver, 2 output ports fiber optical receiver is home-based optical receiver catering to the ultimate goal of development of optical access and suitable for FTTH(fiber to the home) optical fiber network users access to the end. Analog or digital signal to home can be used together with the ONU or EOC achieving triple play.

Parameter

Input optical power	0dBm~-10dBm(Analog signal)	AGC Control range	0dBm~-9dBm
Input optical power	&0dBm~-18dBm(Digital signal)	CTB(note)	≥65dB
optical reflection loss	＞45 dB	CSO(note)	≥62dB
Optical connector form	FC/APC or SC/APC or FC/PC or SC/PC	Host voltage	DC5V
Frequency Range	45~1006MHz	Adapter voltage	AC90V ~145V&AC145V ~ 265V or custom
In-band flatness	±1dB@45~1006MHz	Infeed voltage	DC5V
RF output reflection	≥16dB@ 47~550MH ; ≥14dB@1006MHz	Operating temperature	-20℃ ~+55℃
Gain adjustment range	0-18dB	power	<1W
Output level	(78~80)dBuV(AGC:@-9~+0dBm,Pin=0dBm)	Product net size	129×79×26mm
Output port number	1or 2	10 pack sizes	313×245×83mm
RF output impedance	75Ω	FCL package size (100pcs)	500×440×345mm
Carrier to Noise Ratio (Note)	≥51dB	Product net weight	0.17kg

Product Feature

Adopts WDM technology, single fiber to the home(1490/1310/1550nm) triple-play application can be realized.
AGC control to guarantee relative stable RF input in different RF in. FTTH Optical Node FTTH Optical Node
Small housing suitable for home use.
12V~15VDC power supply. FTTH Optical Node
Good parameter, but low power consumption

Application

1. CATV FTTH
2. Integration of three networks
3. FTTH PON

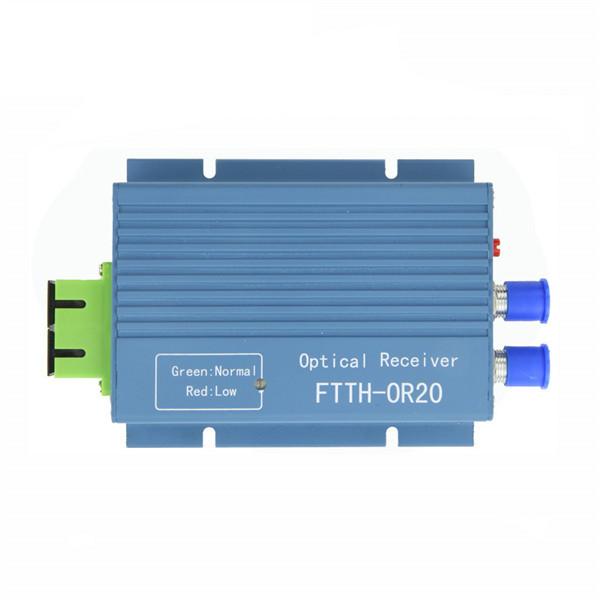

Product Pictures

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
