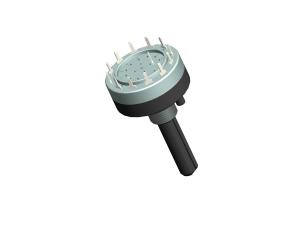

    Insulated Shaft Rotary Switch 26mm Multi Way Switch For Multimedia Audio

    Ask Lasest Price
    Brand Name : Sanni
    Model Number : RS261
    Certification : ISO9001
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Insulated Shaft Rotary Switch 26mm Multi Way Switch For Multimedia Audio

    Rotary Switch 26mm Vertical Type Rotary Switch Insulated Shaft Rotary Multi-Way Switch


    Description


    Rotary switches can be used to replace the rotary pulse generator with the analog function of traditional resistive potentiometers. These rotary switches are usually used in the man-machine interface of the instrument front panel and the audio-visual control panel. The rotary switches use orthogonal optical encoders as pure digital devices to replace the analog potentiometers. But the interiors of these rotary switches are entirely digital and use optical technology.


    Features

    • Compact 26mm design
    • Insulation Shaft
    • Full sealed IP55 or IP67
    • Multiple gear/pole
    • Crisp Clicking Sound
    • Vertical type
    • ROHS Compliant

    Specification


    Mechanical Characteristic
    Rotary Angle/Gears300º±5ºN
    Shaft Stop Strength5.0kgf.cm min
    Nut Tightening Strength8.0kgf.cm min
    Rotational Torque400 to 800gf.cm
    Shaft Push-pull Strength8kg 10s min
    Shaft play in axial0.3mm max
    Shaft play in rotational wobble4º Max
    Environmental Characteristic
    Operating Temperature Range-10°C ~ +85°C
    Storage Temperature Range-40°C ~ +85°C
    Solderability260°C±5°C for 3°C±0.5s
    Durability
    Rotational Life10,000 cycles
    Vibration10-150hz 3directions for 2h each amplitude 10mm
    Electrical Characteristic
    Contact Resistance100MΩ Maxmm
    Voltage proof500V AC for 1 minute
    Insulation resistance100MΩ Min. 500V DC
    TimingNo Shorting

    Application

    Rotary Switch multi-way switch mainly used in microwave ovens, fans, multimedia audio, amplifiers, medical equipment and etc. The main functions of switching function, thermostat, timing, speed and so on.
