    12mm Vertical Type Sealed Rotary Switch For Channel Selection RS121AB7

    Ask Lasest Price
    Brand Name : SANNI
    Model Number : RS121AB7
    Price : USD0.3~0.5 per pc
    Payment Terms : T/T
    Supply Ability : 10000pcs per Month
    Delivery Time : 25 Working days
    • Product Details
    • Company Profile

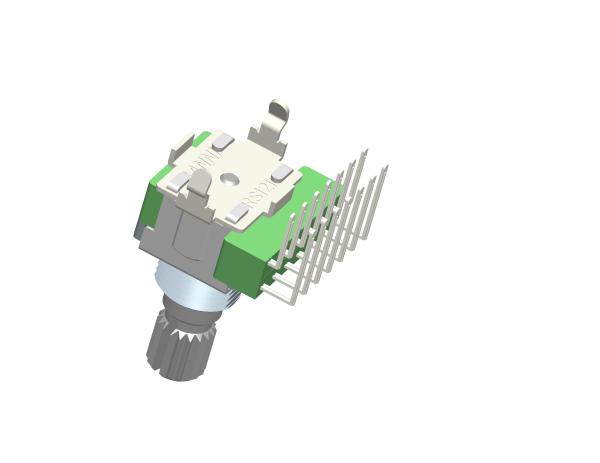

    12mm Vertical Type Sealed Rotary Switch For Channel Selection RS121AB7

    RS121AB7 12mm Rotary Switch Sealed Band Switch For Channel Selection

    Product Description

    12 Series Sealed band switch

    Dimension: 17.4mm *12mm

    Application:


    Used as channel selectors on signal receivers, as well as range selectors on electric meter equipment and band selectors on multi-band radios, etc....


    Product features


    RoHS compliant

    Seal type

    A variety of switch function selection

    Gear clear

    Vertical type


    Product Specifications


    1.Electrical Characteristics
    Rating(max.)/(min.)(Resistive load)0.1A 16V DC/50uA 3V DC
    Contact Resistance(Initial/After Operating life)100mΩmax.
    Insulation resistance100MΩ min. 100V DC
    Voltage proof100V AC for 1 minute
    2.Mechanical Characteristics
    Switching AngleRS121:30o±3o
    Totational torque30±15mN.m
    Rotation Stopper strenghMin:5Kgf
    Shaft push-pull strengthMin:8Kgf
    Terminal Strength5N for 1 minute
    Shaft WobbleMax: 0.6*L/20mm P-P
    3.Durability
    Operating life without load10,000 cycles 100mΩ max
    Operating life with load Load:as rating10,000 cycles 150mΩ max
    4.Environmental Performance
    Operating temperature range-10oC to +85oC
    Storage temperature range-40oC to +85oC
    5.Welding heat reference
    Manual Soldering350oC±10oC/3+1S
    Wave Soldering260oC±5oC/10±1S
    Reflow SolderingSee temperature distribution on data sheet
