    RS10120 Horizontal Electronic Rotary Switch 20 Detents Band Sealed Type

    Ask Lasest Price
    Brand Name : SANNI
    Model Number : RS10120
    Price : USD0.3~0.6/PC
    Payment Terms : T/T
    Supply Ability : 30000pcs/Month
    Delivery Time : 25 Working days
    • Product Details
    • Company Profile

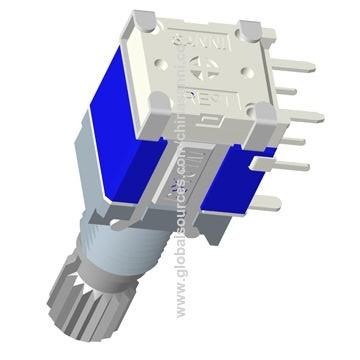

    RS10120 Horizontal Electronic Rotary Switch 20 Detents Band Sealed Type

    RS10120 Horizontal Rotary Switch 20 Detents Band Switch

    Description of Rotary Switch


    A rotary switch is a switch operated by rotation. These are often chosen when more than 2 locations are needed, such as a three-speed fan or CB radio with multiple receiving frequencies or "channels".


    Application of Rotary Switch


    Rotary switches were used as channel selectors on signal receivers, as well as range selectors on electric meter equipment and band selectors on multi-band radios, etc....


    Features of Rotary Potentiometer

    RoHS Compliant

    Seal Type

    A Variety of Switch Function Selection

    Gear Clear

    Horizontal Type


    Specification of Rotary Switch


    1.Electrical Characteristics
    Rating(max.)/(min.)(Resistive load)0.1A 16V DC/50uA 3V DC
    Insulation resistance100MΩ min. 100V DC
    Contact Resistance(Initial/After Operating life)100mΩmax.
    Voltage proof100V AC for 1 minute
    2.Mechanical Characteristics
    Switching AngleRS101:30o±3o
    Total rotation angleN=30o N=2/3/4/5/6 N:Gear
    RS101:360o
    Totational torque40±15mN.m
    Shaft push-pull strengthMin:8Kgf
    Rotation Stopper strenghMin:5Kgf
    Shaft WobbleMax: 0.6*L/20mm P-P
    Terminal Strength5N for 1 minute
    Durability
    Operating life without load10,000 cycles 100mΩ max
    Operating life with load Load:as rating10,000 cycles 150mΩ max
    4.Environmental Performance
    Operating temperature range-10oC to +85oC
    Storage temperature range-40oC to +85oC
    5.Welding heat reference
    Manual Soldering350oC±10oC/3+1S
    Wave Soldering260oC±5oC/10±1S
    Reflow SolderingSee temperature distribution on data sheet
    RS1010 Horizontal Type Band Switch, Rotary Switch for Audio Products, Household AppliancesRS1010 Horizontal Type Band Switch, Rotary Switch for Audio Products, Household AppliancesRS1010 Horizontal Type Band Switch, Rotary Switch for Audio Products, Household AppliancesRS1010 Horizontal Type Band Switch, Rotary Switch for Audio Products, Household AppliancesRS1010 Horizontal Type Band Switch, Rotary Switch for Audio Products, Household AppliancesRS1010 Horizontal Type Band Switch, Rotary Switch for Audio Products, Household AppliancesRS1010 Horizontal Type Band Switch, Rotary Switch for Audio Products, Household AppliancesRS1010 Horizontal Type Band Switch, Rotary Switch for Audio Products, Household AppliancesRS1010 Horizontal Type Band Switch, Rotary Switch for Audio Products, Household Appliances
