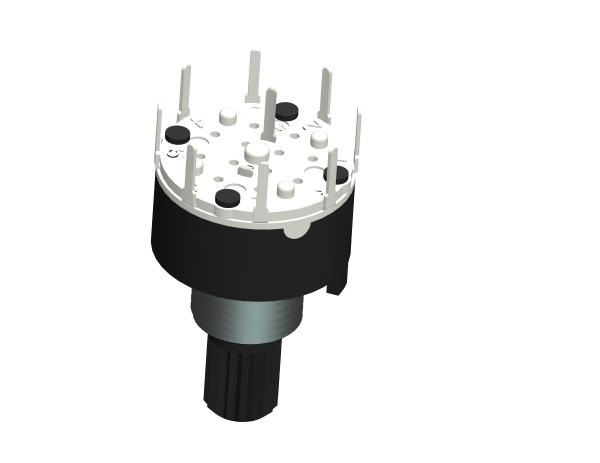

Application:
Used as channel selectors on signal receivers, as well as range selectors on electric meter equipment
and band selectors on multi-band radios, etc....
Product Specifications
| 1.Electrical Characteristics |
| Rating(max.)/(min.)(Resistive load) | 0.1A 16V DC/50uA 3V DC |
| Contact Resistance(Initial/After Operating life) | 100mΩmax. |
| Insulation resistance | 100MΩ min. 100V DC |
| Voltage proof | 100V AC for 1 minute |
| 2.Mechanical Characteristics |
| Switching Angle | RS121:30o±3o |
| Rotation Stopper strengh | Min:5Kgf |
| Totational torque | 30±15mN.m |
| Shaft push-pull strength | Min:8Kgf |
| Terminal Strength | 5N for 1 minute |
| Shaft Wobble | Max: 0.6*L/20mm P-P |
| 3.Durability |
| Operating life without load | 10,000 cycles 100mΩ max |
| Operating life with load Load:as rating | 10,000 cycles 150mΩ max |
| 4.Environmental Performance |
| Operating temperature range | -10oC to +85oC |
| Storage temperature range | -40oC to +85oC |
| 5.Welding heat reference |
| Manual Soldering | 350oC±10oC/3+1S |
| Wave Soldering | 260oC±5oC/10±1S |
| Reflow Soldering | See temperature distribution on data sheet |
