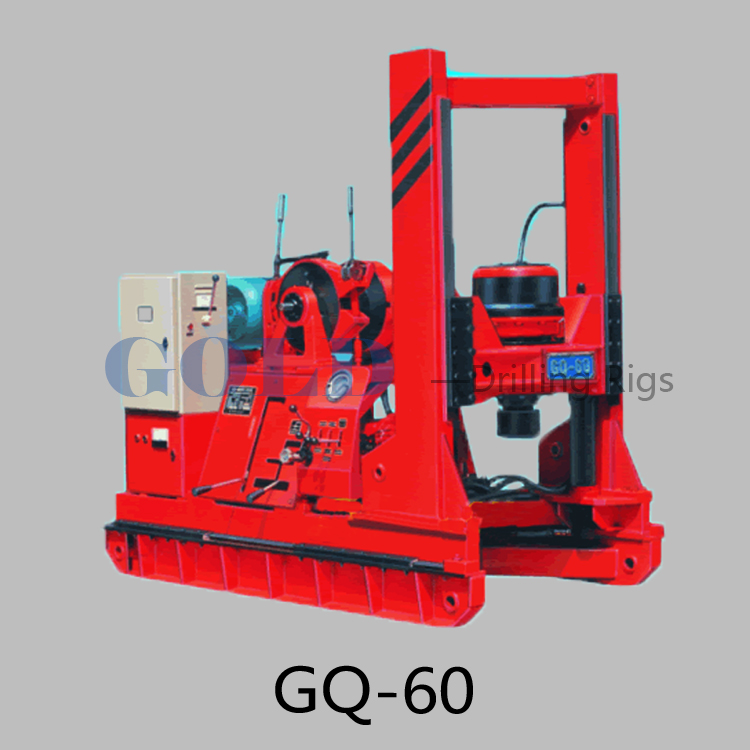

    GQ-60 Engineering drilling rig geotechnical drilling rig test

    Ask Lasest Price
    Brand Name : GOLD
    Model Number : GQ-60
    Certification : CE
    Delivery Time : 10 days
    Payment Terms : T/T, West union, L/C
    Supply Ability : 100 sets per month
    Price : EXW USD5000/set
    • Product Details
    • Company Profile

    GQ-60 Engineering drilling rig geotechnical drilling rig test

    Vivienne
    Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
    Email: gold04@hy-industry.com
    Mobile / Whatsapp:+86-15123029803
    Fax:+86-23-62940030 Skype:viviennecq
    [Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]

    Engineering drilling rig GQ-60This drilling machine is manufactured according to the requirement of foundation engineering, suitable for drilling medium mini-type grouting hole of building, skyscraper, dam and harbor and drilling water well.





    • Mast structure, top-drive head can move down or up along with, strength and rigidity
    • Large torque, compact structure, easy to move
    • Top-drive head is equipped with hydraulic chuck, drilling Efficiently.
    • Reasonable arrangement, easy to operate, smooth and quick.


    hole dia (mm)600
    drilling capacity (m)30
    topdrive head speeds(r/min)forward40;118;218;300
    reverse62
    max torque (N.m)4500
    topdrive head max pull force (KN)58.86
    topdrive head max pulsh force (KN)44.15
    top-drive head stroke (mm)700
    hoist lift capacity with singlerope (KN)30
    retracting stroke (mm)580
    oil pumpCB32 oil gear pump
    power unitelectric motor for rotaryY180L-4 22KW
    electric motor for hoistY160M-4 11KW
    innerdia if spindle (mm)2200×1200×2050
    drill body weight(kg)2500


    Package: Plastic Sheeting

    Delivery: Container ship, 10 days after receiving deposit



    Established in 2009.

    Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
