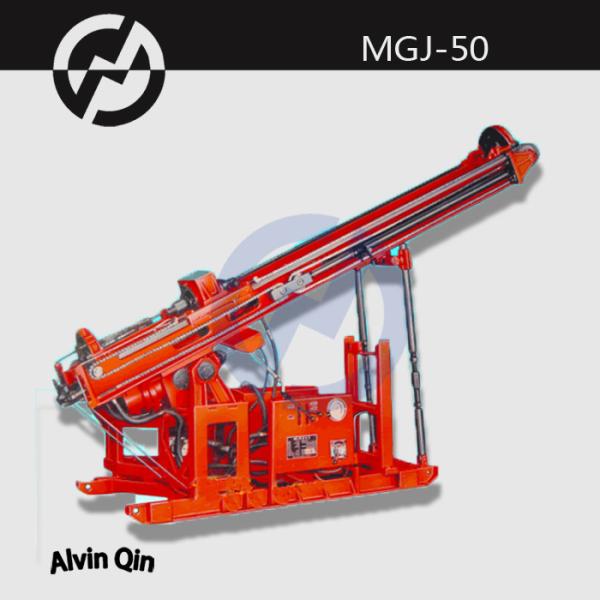

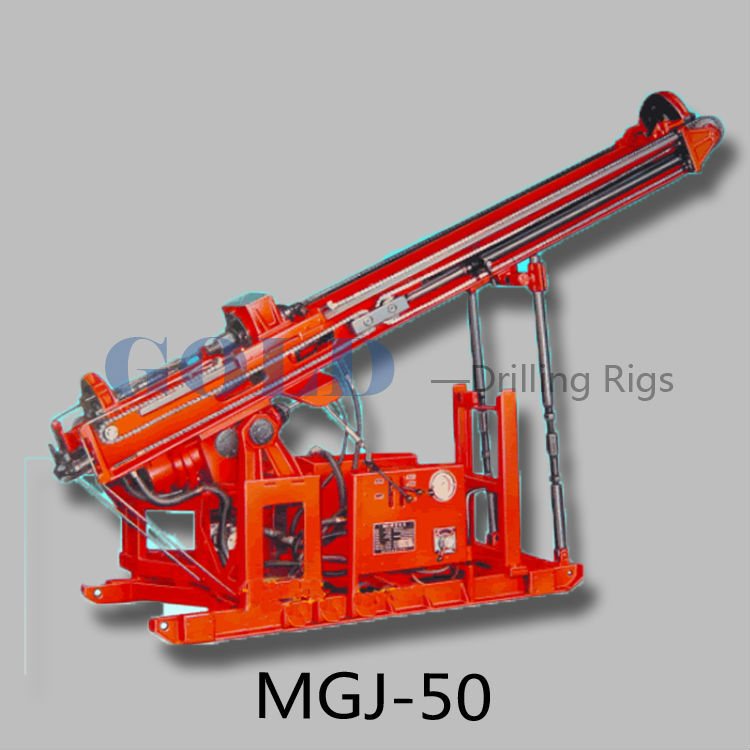

MGJ-50 horizontal anchor drilling rig grouting concrete wall drilling

    Buy cheap MGJ-50 horizontal anchor drilling rig grouting concrete wall drilling from wholesalers

    Buy cheap MGJ-50 horizontal anchor drilling rig grouting concrete wall drilling from wholesalers
    • Buy cheap MGJ-50 horizontal anchor drilling rig grouting concrete wall drilling from wholesalers

    MGJ-50 horizontal anchor drilling rig grouting concrete wall drilling

    Ask Lasest Price
    Brand Name : GOLD
    Certification : CE
    Model Number : MGJ-50
    Price : EXW USD2000/set
    Delivery Time : 10 days
    Payment Terms : T/T, West union, L/C
    Supply Ability : 100 sets per month
    • Product Details
    • Company Profile

    MGJ-50 horizontal anchor drilling rig grouting concrete wall drilling

    Vivienne
    Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
    Email: gold04@hy-industry.com
    Mobile / Whatsapp:+86-15123029803
    Fax:+86-23-62940030 Skype:viviennecq
    [Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]

    Horizontal anchor drilling rig MGJ-50 is mainly used for soil and rock anchoring, consolidating and strengthening foundation of highway and dam and retaining wall, preventing soil and rock from collapsing, supporting in deep foundation pit, pin timbering in underground engineering and handling the foundation of skyscraper.

    water drilling rig prices

    Application&Features

    Feature of crawler drilling machine

    1. The rig structure compact, light weight and detachable, convenient move andposition; adopts full hydraulic control, flexible operation Time saving, labor saving, and remote operation.

    2. The use of low speed and high torque motor, so that the machine stable performance, reliable, long life.

    3. This machine applicable range, drilling ability; power head stroke length, high drilling efficiency.

    4. Power head and the guide rail adopts a new wear-resistant plate, guide railabrasion.

    5.This machine drilling angle range 5 to 360 degrees. Track along the chassis frame and sliding, convenient, reliable drilling location.

    6. The machine is suitable for various drilling methods.

    Specification

    Specification of drilling machine


    No.Project nameUnitNumerical
    1Drilling capacitymm150 – 250
    2Drilling hole dia.m100-50
    3Angle reange0°~ 360°
    4Dynamic output speedr/min46
    5Dynamic output torqueN.m3700
    6Power head max. feeding forcekN44
    7Spindle max. pull forcekN63
    8Power head max. strokemm1800
    9Power head rotary hydraulic systemQuantitative gear pump + quantitative oil motor
    10Feeding hydraulic systemQuantitative gear pump+Cylinder chain speed mechanism 5
    11The rated pressure of hydraulic systemMpa20
    12Electric power Y180L-4kW22
    13Overal diamensions (l×b×h)mm2900×1000×1320
    14Drilling weightkg950
    15Power diamensions (l×b×h)mm1340×880×1256
    16Power weight(kg)kg450
    17Operation panel diamensions(l×b×h)mm550×500×600
    18Operation panel weightkg60

    Packaging & Shipping

    horizontal directional drilling rig

    Our Company View

    horizontal drilling righdd rig

    Project Site

    trenchless drilling rig
