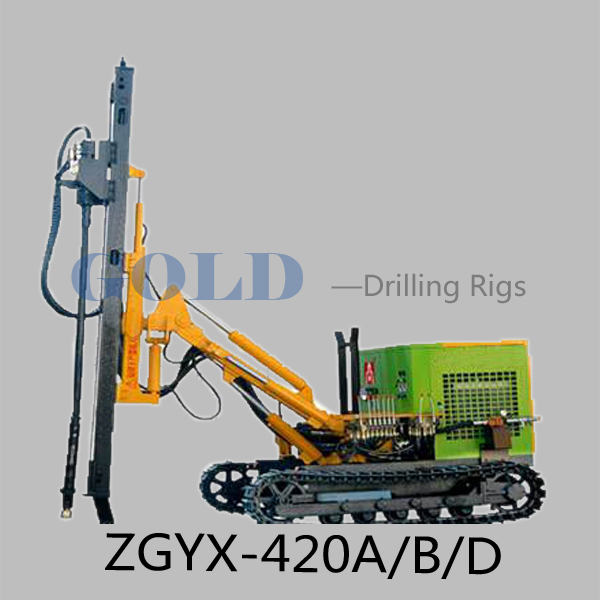

    The ZGYX-420A/B/D crawler mounted DTH shallow hole subsurface drilling rig

    Ask Lasest Price
    Brand Name : GOLD
    Certification : CE
    Model Number : ZGYX-410
    Delivery Time : 10 days
    Payment Terms : T/T, West union, L/C
    Supply Ability : 100 sets per month
    Price : EXW USD5000/set
    • Product Details
    • Company Profile

    The ZGYX-420A/B/D crawler mounted DTH shallow hole subsurface drilling rig

    Vivienne
    Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
    Email: gold04@hy-industry.com
    Mobile / Whatsapp:+86-15123029803
    Fax:+86-23-62940030 Skype:viviennecq
    [Drilling Rig | Geological | Prospecting | Welllogger | BoreholeCamera | Inclinometer]
    Product Description

    The drilling jumbo is a new improving type based on the original model ZGYX—2600,3500.



    Features

    The characters of drilling jumbo ZGYX—410,420,430 is as follow:
    1.it uses the moving sub-head,and hydraulic power is provided by the two-pump. The hydraulic system keep stability and reduce the use of cost.
    2.it uses chains to keep pushing,increaing the lifting force and lower the trouble
    3.Increasing Strength of Bent Beams and Both steel guideways, wear-resisting material clips reduce the trouble.
    4.electric drilling jumbo adds the Retractable cable device ,decrease the injure of the bad condition.
    5.add compressed air system.of diesel engine.and decrease the trouble of diesel engine.

    Specification

    Working Wind Pressure(Mpa)0.7 - 2.0
    Air Consumption(m3/min)8 - 20
    Bore Dia.(mm)90 - 145
    DTH-Hammer (mm)930 Medium Pressure,340A
    Bore Depth.(m)30
    Length of Drilling Pole (mm)3000
    Drilling Pole Diameter(mm)StyleA:60 StyleB:76
    Climbing Ability(°)30
    Traveling Speed (km/h)2 - 3.2
    Rotating Speed (rpm)0 - 80
    Swing Torque (N.m)1970
    Total Weight(kg)4500
    Dimensions (mm)5100×2260×2550
    Matched Power
    Yuchai YC4D80 ,Yuchai 4D952-K207
    30kW- 4 Motor

    Matched compressor recommended:
    Diesel engine portable screw air compressor 110SCY-14.5 or 132SCY-14.5 or 179SCY-14.5
    Electric engine portable screw air compressor 75SDY-14.5 o 90SDY-14.5 or 132/185SDY-14.5
