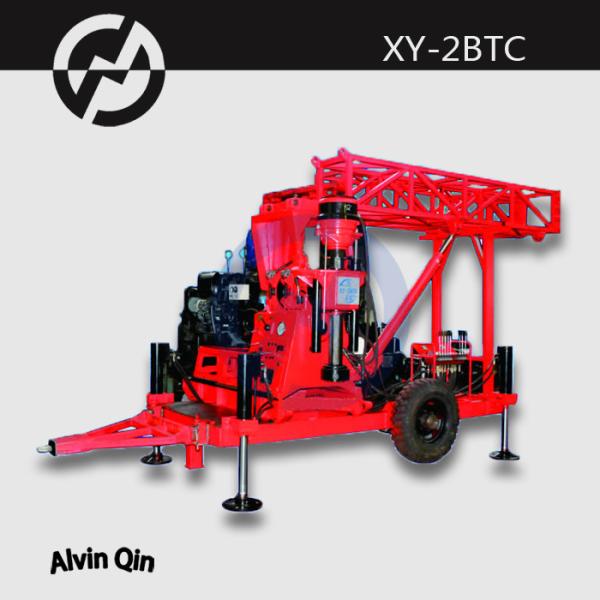

    XY-2BTC core drilling machine for sale is a kind of trailer mounted core drilling rig with hydraulic mast for shallow-medium depth hole core drilling.

    It is not only suitable for carbide,diamond bit drilling for large and small diameter core drilling, butalso can be used for engineering geological survey,hydrology,water wells,and the construction of large diameter drilling and anchoring hole construction.

    The tower of the rig has function of the ups and downs,folding,the angle of the mast can beadjusted to drill inclined holes



    Specification


    Drilling depth(m)

    500 m

    spindle speed (r/min)

    forward

    57; 99; 157; 217; 270;

    470; 742; 1024

    reverse

    45; 212

    Max. spindle torque(N·m)

    3200

    Max. spindle pulling force (KN)

    60

    spindle stroke(mm)

    540

    Max. Hoisting force with single-rope(KN)

    30

    Inner diameter of spindle(mm)

    96

    oil pump

    CBK1020/8

    power unit

    diesel egnine

    F3129L 24 KW 1500 r/min

    Height of mast(m)

    8

    Max.hook load of mast(KN)

    29.4

    Max.static load of crown block beam(KN)

    58.8

    Number of pulley(pc)

    5

    adjustable angle range of mast

    45°~90°

    Overall dimension (L*W*H)(mm)

    transportation status 4500×2150×2950 mm

    drilling status 3450×2150×8206 mm

    Weight (excluding power unit and tower and trailer, mud pump , wire-line winch)

    1200kg
