Fanuc 0I - MF 6000 Rpm CNC Vertical Milling Machine 2000 * 900 Table Size

    Buy cheap Fanuc 0I - MF 6000 Rpm CNC Vertical Milling Machine  2000 * 900 Table Size from wholesalers

    Buy cheap Fanuc 0I - MF 6000 Rpm CNC Vertical Milling Machine  2000 * 900 Table Size from wholesalers
    • Buy cheap Fanuc 0I - MF 6000 Rpm CNC Vertical Milling Machine  2000 * 900 Table Size from wholesalers

    Fanuc 0I - MF 6000 Rpm CNC Vertical Milling Machine 2000 * 900 Table Size

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : VMC1890
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC/DA/DP
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

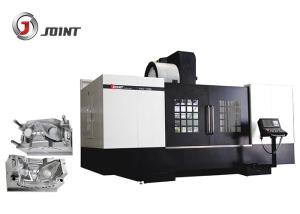

    Fanuc 0I - MF 6000 Rpm CNC Vertical Milling Machine 2000 * 900 Table Size

    45KVA Power BT50 190mm Taiwan Spindle Vertical CNC Machine VMC1890


    Quick details:

    1. Standard CNC controller we configured with Fanuc 0I-MF(5), the others like Siemens and Mitsubishi model d are optional.
    2. Chips flushed by the cooling oil and drop on the spiral conveyor in the bottom inside,then transferred to the chips carriage outside.
    3. Equipped with coolant pump and fluid tank,cool down the workpiece and cutting tools by several flushing nozzles.


    Product advantage:


    1. Use Japan Mitsubishi,Fanuc or other international brand control system
    2. Use Taiwan Royal Spindle
    3. Use Taiwan Hiwin or PMI guide rail and ballscrew, Japan NSK or NARCH bearing to ensure the precision 4. Use Taiwan Deta 24 arm type tool changer(optional)
    5. The forth axis and Chip conveyor, Renishaw tool guage are optional


    Specification Of Vertical machine center VMC1890


    ModelUnitVMC1890
    TravelX axismm1800
    Y axismm900
    Z axismm680
    Distance between spindle and tablemm160-840
    Working tableTable sizemm2000*900
    Max. Load of tableKg1600
    T slotPcs-mm-mm5-22-165
    Positioning accuracyX/Y/Z axismm0.012/0.01/0.008
    Repeated positioning accuracyX/Y/Z axismm0.01/0.008/0.007
    SpindleSpindle rotation speedRpm6000
    Spindle taperBT50
    DiametermmΦ190
    Rivet modelBT50 45°
    Rapid feedX/Y/Z axism/min15/15/12
    Cutting feedX/Y/Z axism/min8
    Tool magazineUmbrella typeSizeTools20
    Too changing time (T-T)Sec6
    Max. diameter/ length/weight of toolmm134/200/15
    Max tool diameter (no tool adjacent)mm185
    Arm typeSizeTools24
    Tool changing time (T-T)sec3.5s
    Max. diameter/ /length/weight of toolmm110/200/15
    Max tool diameter (no tool adjacent)mm200
    Total capacity of electricKVA45
    Weight of machine

    Kg

    13500
    Dimensionmm4860*4300*3600



    Standard Accessories:

    Fanuc Controller system

    6000Rpm spindle

    Full enclosed cover

    Spindle encoder position system

    Three axis inner encoder feedback system

    Auto lubrication system

    Pneumatic system

    RS 232 Interface

    Operation unit

    RS232 Interface +working light

    Tool and tool box


    Optional accessories:

    Siemens controller or other controller system

    Spindle oil coolant

    Heat exchanger

    Umbrella type tool magazine

    Arm type tool magazine

    Screw type auto conveyor

    Chain type tool magazine

    4 Axis rotary table

    Ring spray spindle
