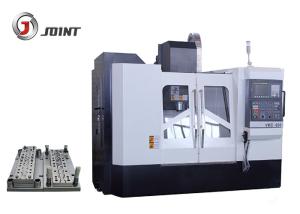

    3 Axis Travel Vertical Machine Center 10 M / Min Rapid Feed And 600kg Max Load

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : VMC650
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC/DA/DP
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    3 Axis Travel Vertical Machine Center 10 M / Min Rapid Feed And 600kg Max Load

    Max Load 600kg 10 m / min Rapid Feed Vertical CNC Machine VMC650 8000rpm


    Quick details:


    1. Adopting the world advanced numerical control system, the M60S series are servo-driven, ensuring the stability of the control system is high, the speed is fast, and the surface is smooth.
    The advantages of high precision, the ability to make moulds, is the best choice for mold production.
    2. All M60S series controllers are marked with RISC64 bit CPU.
    3. Coordinate display value conversion can be freely switched (program value display or manual insertion quantity display switching)
    4. Standard internal carrier profile function, working position coordinates and central point measurement functions.
    5. Buffer correction function extension: can correspond to IC card/computer link B/DNC/MDI mode.
    6. Edit the edit mode in the edit screen, and switch to edit or edit the whole page.
    7. Graphical display function improvement: can contain the prop path information to fully display the work coordinates and the actual location of the props compensation.


    After-sales service
    1. The warranty period of our products is one year. If there is any damage in the warranty period, we will send it to you for free.We provide 24-hour online technical service and contact us at any time.
    2. 365 days without false service, uninterrupted supply, pre-sales consultation, after-sales service and other technical support
    3. Technical training and overseas services available/


    Specification Of Vertical machine center VMC650


    ModelUnitVMC-650
    TravelX axismm650
    Y axismm400
    Z axismm480
    Distance between spindle and tablemm80-560
    Working tableTable sizemm800*420
    Max. Load of tableKg600
    T slotPcs-mm-mm3-18-135
    Positioning accuracyX/Y/Z axismm0.008/0.008/0.008
    Repeated positioning accuracyX/Y/Z axismm0.007/0.007/0.007
    SpindleSpindle rotation speedRpm8000
    Spindle taperBT40
    DiametermmΦ150
    Rivet modelBT40 45°
    Rapid feedX/Y/Z axism/min10
    Cutting feedX/Y/Z axism/min8
    Tool magazineUmbrella typeSizeTools20
    Too changing time (T-T)Sec6
    Max. diameter/ length/weight of toolmm100/200/8
    Max tool diameter (no tool adjacent)mm180
    Arm typeSizeTools24
    Tool changing time (T-T)sec3.5s
    Max. diameter/ /length/weight of toolmm80/200/8
    Max tool diameter (no tool adjacent)mm150
    Total capacity of electricKVA15
    Weight of machine

    Kg


    4200
    Dimensionmm2300*2270*2350

    Standard Accessories:


    Fanuc Controller system


    8000Rpm spindle


    Full enclosed cover


    Spindle encoder position system


    Three axis inner encoder feedback system


    Auto lubrication system


    Pneumatic system


    RS 232 Interface


    Operation unit


    RS232 Interface +working light


    Tool and tool box


    Optional accessories:


    Siemens controller or other controller system


    Spindle oil coolant


    Heat exchanger


    Umbrella type tool magazine


    Arm type tool magazine


    Screw type auto conveyor


    Chain type tool magazine


    4 Axis rotary table


    Ring spray spindle
