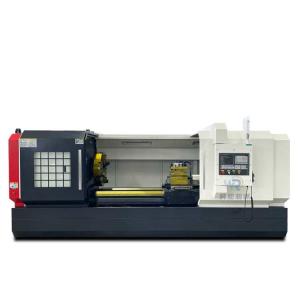

    CNC Lathe CK6180 CNC Turning Machine 4 Station Turret Siemens System

    Ask Lasest Price
    Brand Name : HR
    Model Number : CK6180
    Certification : ceiso
    Price : usd9000-15000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40set/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    CNC Lathe CK6180 CNC Turning Machine 4 Station Turret Siemens System

    CNC Lathe CK6180 CNC Turning Machine 4 Station Turret Siemens system
    Product Introduction
    1.The dimension of spindle box is superior to that of common type, and the overall rigidity is strong.
    2. Ground-type bed with small geometric deformation in integral casting.
    3. The main motor adopts frequency conversion motor, and the torsion is suitable for powerful turning.
    4. Widening and Thickening Overtime, Choosing National standard Heavy Tool Frame.
    5. Large modulus gears and standard three-axle three-gear are used in the spindle box.
    Specification
    ck0640
    ck6130
    ck6132
    ck6432
    ck6136
    CK6140
    Max. swing dia. over bed
    Φ300mm
    Φ300mm
    Φ360mm
    Φ360mm
    Φ360mm
    Φ400mm
    Max. swing dia. over cross slide
    φ130mm
    100mm
    150mm
    Φ150mm
    Φ190mm
    Φ225mm
    Max. processing length
    240mm
    400mm
    450mm
    450/700mm
    750/1000mm
    750/1000mm
    Spindle bore
    Φ42mm
    48mm
    40mm
    Φ60mm
    Φ60mm
    Φ60mm
    Spindle speed
    50~2500rpm
    150-2500mm
    150-2500mm
    150-2500mm
    150-2500rpm
    150-2500rpm
    X/Z axis fast feeding speed
    6/8 M/MIN
    8/10 M/MIN
    6/8 M/MIN
    8/10 M/MIN
    6/8 m/min
    6/8 M/MIN
    X/Z axis position accuracy
    0.01/0.015mm
    X/Z-axis repeatability
    0.012/0.013mm
    clamping
    Pneumatic collet
    3 Jaw Manual Chuck
    tool post type
    gang-type tool holder
    4 station electric tool holder
    Main motor power
    3KW
    4kw
    4kw
    4kw
    4/5.5KW
    5.5KW
    Tailstock taper
    MT4
    MT3
    MT4
    MT4
    MT4
    Tailstock sleeve dia.
    /
    60mm
    60mm
    60mm
    60mm
    ?
    Tailstock sleeve travel
    /
    100mm
    100mm
    100
    120mm
    Overall dimensions(L×W×H)
    1550×920×1450
    1750*1200*1570
    1820×1100×1550
    1660/1940×1400×1700
    1850/2120/2370/x1400x1700mm
    2120/2370×1400×1700mm
    Net weight
    850 kg
    1220kg
    1200kg
    1250/1450kg
    1500/1650/1750
    1800/1950
    Item
    CK6150A
    ck6150B
    CK6163
    CK6180
    CK61100
    CK61125
    Max. swing dia. over bed
    Φ500mm
    Φ500mm
    φ630mm
    φ800mm
    Φ1100mm
    Φ1250mm
    Max. swing dia. over cross slide
    Φ280mm
    Φ280mm
    φ350mm
    φ500mm
    Φ820mm
    Φ900mm
    Processing length
    750/1000/1500/2000mm
    1000/1500/2000/3000mm
    1500/2000/3000/5000mm
    Dia. of spindle
    Φ82mm
    φ105mm
    φ105mm
    Spindle speed step
    step-less
    Three gear speed manual change,frequency conversion stepless
    Four gears No grade to
    change frequency
    Four gears No grade
    to change frequency
    Spindle speed
    14-1500 rpm
    30-150,100-500,
    320-1100rpm
    30-84/53-150/125-350/300-835
    30-84/53-150/125-350/300-835rpm
    Taper of spindle bore
    1:20/Φ90
    (Metric)120 1:20
    Tool holder
    4 station electric tool post
    Tool bar section
    25X25mm
    30×30mm
    40×40mm
    Main motor power
    7.5KW
    11KW
    11KW
    X/Z axis position accuracy
    0.02/0.025mm
    ±0.006mm
    ±0.006mm
    X/Z-axis repeatability
    0.01/0.012mm
    ±0.007mm
    X:0.008 mm
    X/Z axis fast feeding speed
    8/10 M/MIN
    4/5 M/MIN
    4/6 M/MIN
    Tailstock sleeve travel
    150mm
    250mm
    300mm
    Tailstock taper
    MT5
    MT6
    MT8
    Dimension
    2410/2660/3160×1560×1730mm
    3200/3700/4200/5200
    ×1820×1710mm
    3300/3800/4300 × 1940 × 1800mm
    2800/3700/4200/5200/6200/7200*1820*1780
    Net weight(kg)
    2800/3200/3500
    3900/4300/4800
    4100/4500
    4300/4700/5500/6500
    4500/5000/5500/6000/6500
    Details Images

    Turret
    The standard turret is 4 station electric turret, the optional is 6/8 station electric turret or 12 station living turret.

    Tailstock
    There is a device in the tailstock sleeve to prevent the rotation of the drill bit, which avoids damage to the taper of the inner hole of the tailstock sleeve due to the rotation of the drill bit caused by misoperation, and effectively protects the tailstock components

    Chuck
    The standard chuck is 3 jaw manual chuck, the optional configuration is 3 jaw or 4 jaw hydraulic hollow chuck.

    Controller system
    The standard is GSK controller system, the optional is Siemens ,Fanuc or Syntec controller system. Simple and easy to operate,with the operation manual.
    Packing&Shipping
    1.Port: Qingdao port or Shanghai port
    2.Payment method: T/T, L/C, D/P, D/D etc.
    3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
    4.Delivery time: 30 days after receive the 30%T/T deposit.
    5.Non-fumigation packaging, we use seaworthy plywood.
    6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
    7.Water-proof and damp proof, water resistant film wraped all the machine.
    8.Fully sheathed case,prevention of collision and keep the goods intact.
    Certifications
    All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
