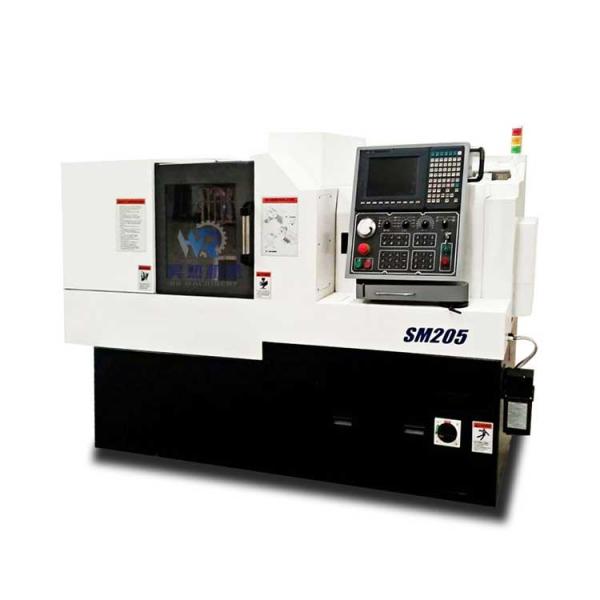

    SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White

    Ask Lasest Price
    Brand Name : HR
    Model Number : SM205
    Certification : CE
    Price : 45000usd
    Payment Terms : D/A, D/P, T/T, Western Union
    Supply Ability : 50sets 1 month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    SM205 Swiss Type Automatic Cnc Horizontal Lathe Machine White

    Product Description
    SM205 Best Selling Products focus cnc lathe automatic lathe swiss type configuration vice spindle, belonging to the turning and milling compound model. The biggest feature is the workpiece after a clamping can be achieved complete processing, reducing the number of equipment required, but also improve the production efficiency. After cutting off the parts, the sub-spindle grips the part and completes the machining on the back, such as drilling, boring and milling on the back. The machine is also equipped with automatic feeder, the feeder part can be installed short feeder and long feeder. Can be achieved continuous feeding of materials under the continuous processing. The equipment is most suitable for aerospace, aerospace, military, automotive, communications, optics, medical equipment and other high-precision, work complex slender shaft parts.
    Feature of sm205 High precision 2 spindle swiss type cnc automatic lathe machine for dental
    1.Arrangement of tooling:13 fixed tools and 9 live tools among 22 tools can handle complex processing.
    2.Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).
    3.Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.
    4.Back-end fixed tool:1 fixed tool and 3 live tools.
    5. Toggle system: Lt is possible to maintain continuous process without toggle’s damage.
    6.Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine tools
    Processing capacity
    Max maching diameter
    mm
    20
    Stroke
    mm
    260
    Max. Turning Diameter
    mm
    20
    Main Spindle RPM
    rpm
    8000
    C axis Additional Positive Brake
    1/1000(0.001)
    Max. Turning Diameter
    mm
    20
    Traverse Rate
    Stroke
    X1 axis
    mm
    60
    Y axis
    mm
    342.5
    Z1 axis
    mm
    260
    X2 axis
    mm
    355
    Z2 axis
    mm
    220
    Rapid Traverse Rate
    X1 axis
    m/min
    24
    Number of tools
    O.D Tools
    ea
    6
    Front Work Tools
    ea
    5
    Cross Living Tools
    ea
    4
    Back Work Tools
    ea
    3(Rotation)+1(fixed)
    O.D Tools specification
    mm
    12×12
    Front Work Tools diameter
    mm
    (Standard)25
    Motors
    Cross Driven Tools motor
    kw
    2.5kw
    Back Work Tools motor
    kw
    1
    Lubrication pump motor
    w
    5
    Coolant motor
    kw
    0.4(pressure 0.5bar)
    Coolant tank capacity
    L
    180
    Lubrication tank capacity
    L
    1.8
    Height from floor tospindle center
    mm
    1000
    Dimension
    mm
    2560×1510×1660
    Cross Weight
    KG
    3600
    Detailed Images
    Product Presentation
    Certificate
    All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product,please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
    Packing&Shipping
    1.Port: Qingdao port or Shanghai port
    2.Payment method: T/T, L/C, D/P, D/D etc.
    3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
    4.Delivery time: 30 days after receive the 30%T/T deposit.5.Non-fumigation packaging, we use seaworthy plywood.
    6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
    7.Water-proof and damp proof, water resistant film wraped all the machine.
    8.Fully sheathed case,prevention of collision and keep the goods intact.
    Company Introduction
    Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement
    brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while
    meeting the personalized needs of users.
    Our services
    1. We supply 24 hours on-line service,you could contact with us by email ,phone ,wechat ,whatsapp,skype etc.
    2. Received your phone or mail,we will Analyze the problem immediately.
    3.Supply professional solution, after analyze the problem, we give you our best solution.
    4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge.
    5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use.
    6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair.(In case of non-epidemic situation).
