Metal Working CK6150 Cheap horizontal cnc lathe machine

    Buy cheap Metal Working CK6150 Cheap horizontal cnc lathe machine from wholesalers

    Buy cheap Metal Working CK6150 Cheap horizontal cnc lathe machine from wholesalers
    • Buy cheap Metal Working CK6150 Cheap horizontal cnc lathe machine from wholesalers
    • Buy cheap Metal Working CK6150 Cheap horizontal cnc lathe machine from wholesalers

    Metal Working CK6150 Cheap horizontal cnc lathe machine

    Ask Lasest Price
    Brand Name : HR
    Model Number : ck6150
    Certification : ceiso
    Price : usd5000-10000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40set/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Metal Working CK6150 Cheap horizontal cnc lathe machine

    metal working CNC lathe machine CK6150 cheap cnc lathe machine
    Product Introduction

    The machine tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages.

    Specification
    ck0640
    ck6130
    ck6132
    ck6432
    ck6136
    CK6140
    Max. swing dia. over bed
    Φ300mm
    Φ300mm
    Φ360mm
    Φ360mm
    Φ360mm
    Φ400mm
    Max. swing dia. over cross slide
    φ130mm
    100mm
    150mm
    Φ150mm
    Φ190mm
    Φ225mm
    Max. processing length
    240mm
    400mm
    450mm
    450/700mm
    750/1000mm
    750/1000mm
    Spindle bore
    Φ42mm
    48mm
    40mm
    Φ60mm
    Φ60mm
    Φ60mm
    Spindle speed
    50~2500rpm
    150-2500mm
    150-2500mm
    150-2500mm
    150-2500rpm
    150-2500rpm
    X/Z axis fast feeding speed
    6/8 M/MIN
    8/10 M/MIN
    6/8 M/MIN
    8/10 M/MIN
    6/8 m/min
    6/8 M/MIN
    X/Z axis position accuracy
    0.01/0.015mm
    X/Z-axis repeatability
    0.012/0.013mm
    clamping
    Pneumatic collet
    3 Jaw Manual Chuck
    tool post type
    gang-type tool holder
    4 station electric tool holder
    Main motor power
    3KW
    4kw
    4kw
    4kw
    4/5.5KW
    5.5KW
    Tailstock taper
    MT4
    MT3
    MT4
    MT4
    MT4
    Tailstock sleeve dia.
    /
    60mm
    60mm
    60mm
    60mm
    ?
    Tailstock sleeve travel
    /
    100mm
    100mm
    100
    120mm
    Overall dimensions(L×W×H)
    1550×920×1450
    1750*1200*1570
    1820×1100×1550
    1660/1940×1400×1700
    1850/2120/2370/x1400x1700mm
    2120/2370×1400×1700mm
    Net weight
    850 kg
    1220kg
    1200kg
    1250/1450kg
    1500/1650/1750
    1800/1950
    Item
    CK6150A
    ck6150B
    CK6163
    CK6180
    CK61100
    CK61125
    Max. swing dia. over bed
    Φ500mm
    Φ500mm
    φ630mm
    φ800mm
    Φ1100mm
    Φ1250mm
    Max. swing dia. over cross slide
    Φ280mm
    Φ280mm
    φ350mm
    φ500mm
    Φ820mm
    Φ900mm
    Processing length
    750/1000/1500/2000mm
    1000/1500/2000/3000mm
    1500/2000/3000/5000mm
    Dia. of spindle
    Φ82mm
    φ105mm
    φ105mm
    Spindle speed step
    step-less
    Three gear speed manual change,frequency conversion stepless
    Four gears No grade to
    change frequency
    Four gears No grade
    to change frequency
    Spindle speed
    14-1500 rpm
    30-150,100-500,
    320-1100rpm
    30-84/53-150/125-350/300-835
    30-84/53-150/125-350/300-835rpm
    Taper of spindle bore
    1:20/Φ90
    (Metric)120 1:20
    Tool holder
    4 station electric tool post
    Tool bar section
    25X25mm
    30×30mm
    40×40mm
    Main motor power
    7.5KW
    11KW
    11KW
    X/Z axis position accuracy
    0.02/0.025mm
    ±0.006mm
    ±0.006mm
    X/Z-axis repeatability
    0.01/0.012mm
    ±0.007mm
    X:0.008 mm
    X/Z axis fast feeding speed
    8/10 M/MIN
    4/5 M/MIN
    4/6 M/MIN
    Tailstock sleeve travel
    150mm
    250mm
    300mm
    Tailstock taper
    MT5
    MT6
    MT8
    Dimension
    2410/2660/3160×1560×1730mm
    3200/3700/4200/5200
    ×1820×1710mm
    3300/3800/4300 × 1940 × 1800mm
    2800/3700/4200/5200/6200/7200*1820*1780
    Net weight(kg)
    2800/3200/3500
    3900/4300/4800
    4100/4500
    4300/4700/5500/6500
    4500/5000/5500/6000/6500

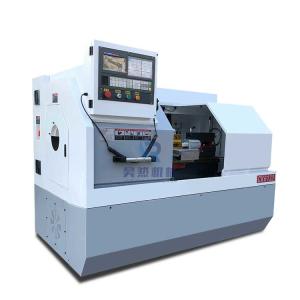

    Details Images
    1. Various CNC numerical control systems are used for machine tool control 2. The feed motion adopts ball screw and sliding guide. AC frequency converter is adopted for speed change of spindle motor 3. Spring clamp clamp is used for clamping. The tightening device has manual and hydraulic control forms for customers to choose 4. Install electric spindles with different angles on the carriage to realize various spiral grooves, straight grooves, drilling, etc 5. The feed shaft is controlled by stepping motor or servo motor for customers to choose 6. The guide rail adopts ultra-audio frequency quenching
