Industry Vertical Lathe Machine Lathe Mill Combo Vertical Cnc Lathe Machine
Single column vertical lathe, equipped with advanced and dependable mechanical and electrical components, exhibits exceptional structural performance, strong rigidity, and the ability to handle heavy cutting tasks. The worktable is capable of carrying large tonnage loads, ensuring stability, efficiency, and reliable operation.
Vertical lathe is widely applicable in the field of mechanical processing and can be used for both internal and external cylindrical and conical surfaces, as well as for facing, cutting, and other coarse and fine turning processes. The workbench adopts a hydrostatic guideway, and the main shaft is equipped with high-precision NN30 type (D) double row cylindrical roller bearings, ensuring a large carrying capacity and high rotary precision. The electrical components of the machine tool are sourced from reputable domestic brands, ensuring high reliability. The machine itself is manufactured using a high-quality EPC process, undergoing annealing aging treatment, resulting in a beautiful and durable appearance. It is user-friendly, easy to operate and maintain, and offers excellent cost performance. The design features an integrated hanging button station, electric cabinet, and bed. It also includes a quenched beam, T-shaped ram with five-hole turret, closed beam protection, and automatic lubrication for all lubrication points. Additionally, it offers a constant line speed for turning and threading operations.
CNC single column vertical lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Maintransmission is driven by the spindle AC servo motor, hydraulic gear change and two gears stepless speed regulation. Worktable is manual 4-jaw single movement chuck .
Machine parameter
| Model | CK518 | CK5112Q | CK5112A | CK5116Q | CK5120A | CK5126A |
| Max. turning diameter of vertical tool rest (mm) | 800 | 1200 | 1200 | 1600 | 2000 | 2600 |
| Working table diameter (mm) | 700 | 1000 | 1000 | 1400 | 1800 | 2200 |
| Max. height of work-piece (mm) | 800 | 1000 | 1000 | 1200 | 1250 | 1400 |
| Max. weight of work-piece (kg) | 1500 | 1500 | 3200 | 3200 | 8000 | 8000 |
| Range of worktable rotation speed (rpm) | 30-260 | 20-180 | 6.3-200 | 15-160 | 3.2-100 | 2.2-70 |
| Feeding series | Stepless | Stepless | Stepless | Stepless | Stepless | Stepless |
| Range of tool rest feed (mm/min) | 0.25-90 | 0.25-90 | 0.8-86 | 0.25-90 | 0.8-86 | 0.8-86 |
| Cross beam travel (mm) | 500 | 1000 | 650 | 1200 | 890 | 1090 |
| Horizontal travel of tool rest (mm) | 500 | 700 | 700 | 900 | 1115 | 1400 |
| Vertical travel of tool rest (mm) | 450 | 500 | 650 | 750 | 800 | 800 |
| Size of section of cutter bar (mm) | 30*40 | 30*40 | 30*40 | 30*40 | 30*40 | 30*40 |
| Main motor power (kw) | 11 | 15 | 22 | 15 | 30 | 30 |

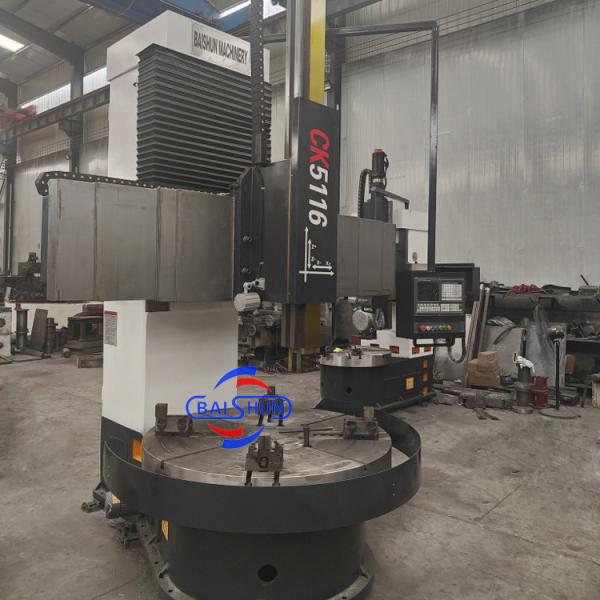

Detail Machine Photo:
