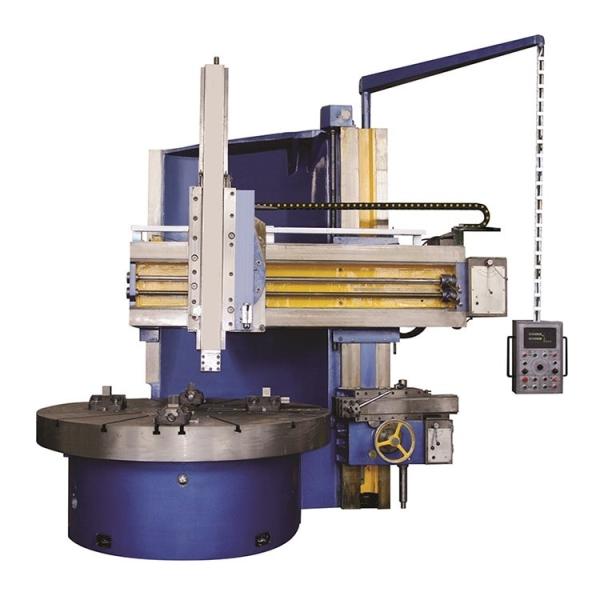

Heavy Duty Manual DRO Display Vertical Lathe Machine With Single
Column
Description:
The vertical lathe machine is designed for turning both inside and
outside cylinders and planes, corn surfaces, and grooving. It is
suitable for high-speed steel tools working on ferrous metals,
nonferrous metals, and some non-metallic materials.
The main components of the equipment are made using a whole casting
structure with high-strength, low-stress cast iron material. After
casting, it undergoes annealing and aging treatment after rough
machining. The column guide rail is ground to ensure precision,
while the beam guide and ram guide undergo grinding after
intermediate frequency quenching.
The vertical lathes are widely used in the manufacturing industry
for producing large and heavy components, such as gears, turbines,
and aerospace parts.
This manual DRO display vertical lathe machine is designed with a
vertical spindle that holds and rotates the workpiece. The cutting
tool is mounted on a tool turret that moves in multiple axes,
allowing for precise and complex machining operations.
Generally it can be programmed to perform a wide range of machining
operations, such as turning, drilling, boring, threading, and
milling, with minimal human intervention.
Features:
1.This versatile machine is suitable for mechanical processing
across various industries.
2.The main transmission is driven by an AC motor, with a main drive
speed that can be changed in 16 steps through solenoid valve
control.
3.All gears in the gearbox undergo high-frequency quenching for
enhanced durability.
4. The machine boasts an attractive design, ensuring user comfort
and convenient operation and maintenance.
5. Customization options include a digital display(DRO) device
square ram upon customer request, providing additional flexibility
to meet specific needs.
6. It mainly can be used for rough and finish machining of inside
and outside cylinders, cone surfaces, end faces, grooving, cutting,
and internal hole boring.
Specification:
C51 series
| Model | C518 | C5112 | C5116 | C5120 | C5125 |
| Max.turning dia.(mm) | 800 | 1200 | 1600 | 2000 | 2500 |
| Max.cutting height(mm) | 800 | 1000 | 1000 | 1250 | 1250 |
| Max.loading weight(tons) | 1.2 | 3.2 | 5 | 8 | 10 |
| Worktable diameter(mm) | 720 | 1000 | 1400 | 1800 | 2250 |
| Worktable speed range(r/min) | 30-260 | 6.3-200 | 5-160 | 3.2-100 | 2-63 |
| Max worktable torque(n.m) | 1000 | 25000 | 32000 | 32000 | 35000 |
| vertical travel of vertical tool post(mm) | 650 | 650 | 800 | 800 | 1200 |
| horizontal travel of vertical post(mm) | 570 | 700 | 915 | 1200 | 1400 |
| G.W(tons) | 5 | 8 | 12.4 | 17 | 23 |
| Dimension(L*W*Hmm) | 2080*2621 *3515 | 2360*2280 *2800 | 2830*2670 *3010 | 3200*2800 *3250 | 3300*4000 *3500 |

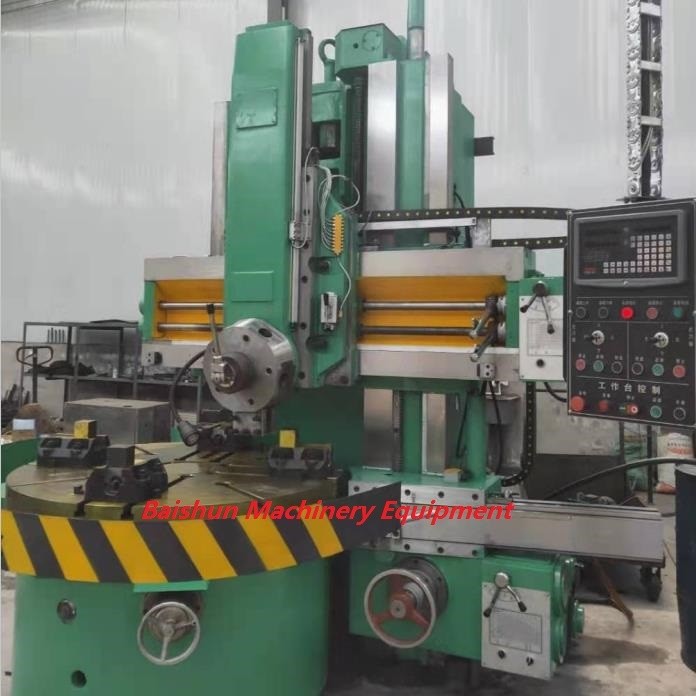

Machine picture:
