Single Column Conventional C5112 High Efficient Vertical Lathe
Machine

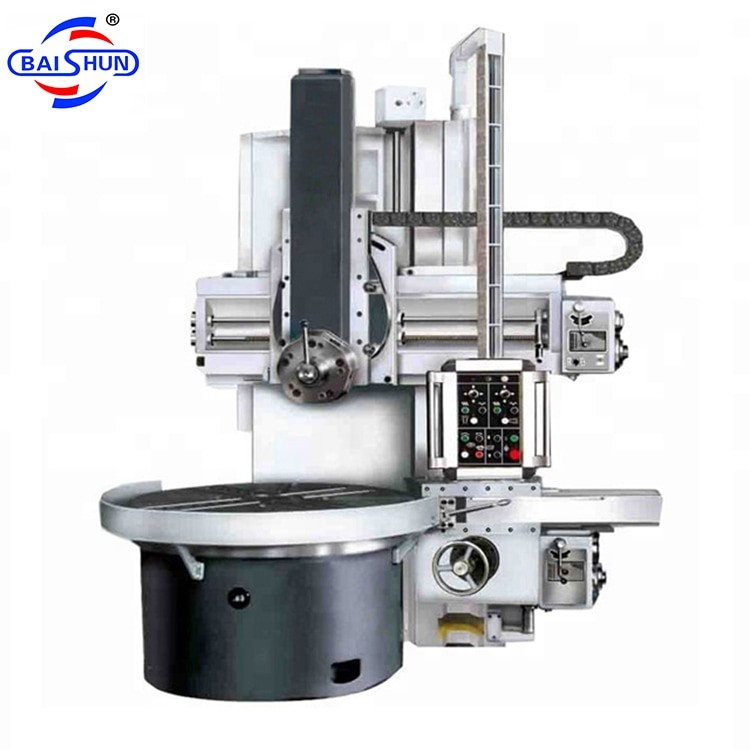

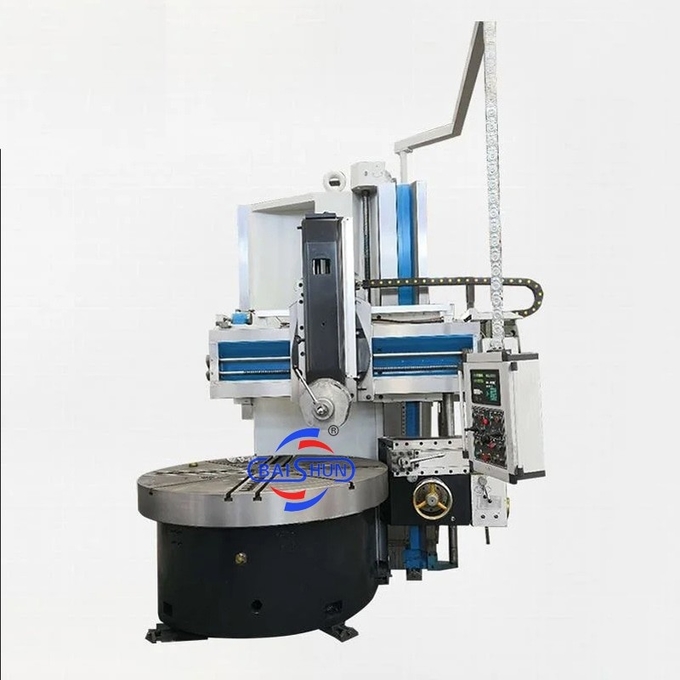

The Single column model C5112 are super rigid machines with big
machining capacities, stable and rigid structure and high machining
efficiency. The machine is equipped with one vertical tool head and
can be equipped with high precision digital readout system (DRO).
AC inverter motor is used to achieve speed change. Gears are made
of 40 Cr steel and precision ground for high precision and low
machine noise. The machines are designed and built to meet modern
machining requirements of high speed cutting tools and carbide
cutters on work pieces of ferrous, non-ferrous, composite and other
materials.
1. Machine tool: The main components of the machine tool (lathe
bed, base, workbench, beam, vertical slide rest, side tool box,
feed box, main drive gear box) are made of strong cast iron using
resin sand technology.
2. Main drive: The workbench rotation is powered by the main
electric motor, with a gear reduction and an electromagnetic speed
control system for adjusting the speed.
3. Vertical slide and feed mechanism of the vertical slide: The RAM
is made of HT250 material, known for its excellent mechanical
properties.
4. Workbench base structure: The workbench adopts a long spindle
structure, supported by high-precision double row cylindrical
roller bearings for radial alignment.
5. Beam: The beam is secured and released using a drift, with
hydraulic pressure for clamping.
6. Hydraulic system: The hydraulic system uses reliable control
components from renowned manufacturers, both domestic and
international.
7. Lubrication of the machine tool: The machine tool automatically
provides oil at specified intervals to lubricate the beam and
moving parts.
8. Machine tool protection: The machine tool's moving parts are
equipped with a comprehensive security chain and interlock system.
9. Electrical control system:
a) Power source: Three-phase current of 380V±10%, 50Hz.
b) The electrical design of the machine tool follows international
design standards.
