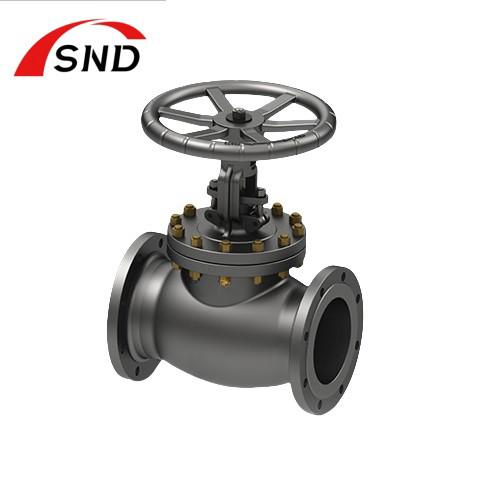

DN80 Cast Steel Bellows Globe Valve With Flange
Product Benefits
1.Unlike conventional globe valves that rely only on padding seals,
our bellow seal globe valves utilize a dual sealing system,
combining bellows and padding for superior leak protection.
2.The disc features a specialized scraping design, significantly
increasing durability and extending its service life.
3.The internal bellows are made from high-quality stainless steel
321, providing excellent corrosion resistance and long-lasting
reliability.
4.Designed with a lighter structure, our bellow seal globe valves
ensure easier and more efficient operation compared to standard
globe valves.
Product test data
| Nominal Pressure | PN | |
| Pressure test | Strength test | 1.4PN | MPa |
| Sealing test | 1.0PN |
| Gas seal test | 0.5 |
| -- | -- |
| Temputer | -20ºC~425ºC |
Product Usage
Cast steel stop valve is suitable for various pipelines of Class
150~300, working temperature 29~425℃ (carbon steel) or 40~550℃
(stainless steel). It is used to cut off or connect the medium in
the pipeline. Different materials can be used for various media
such as water, steam, oil, nitric acid, acetic acid, oxidizing
medium, urea, etc.
Who we are
SND has been producing and selling metal goods for about 20
years.By using manufacturing techniques including sand casting,
lost wax casting, lost foam casting, and precision machining, the
company has been supplying goods made of materials like cast iron,
steel, stainless steel, aluminum, etc. Additionally offered are
surface finishing and assembly services.
Our company has successfully created products in a variety of
industries, including automotive, rail transportation, agricultural
machinery, chemical, energy, electricity, water, air compressor,
and construction, thanks to our consistent efforts over the past
few years.
Our factories' ISO9001-accredited quality control systems guarantee
a consistent and dependable quality for each and every component.
Spectrometer, ultrasonic, magnetic, permeability, elongation,
tensile/yield strength, and other inspections are carried out as
part of routine production procedures.
