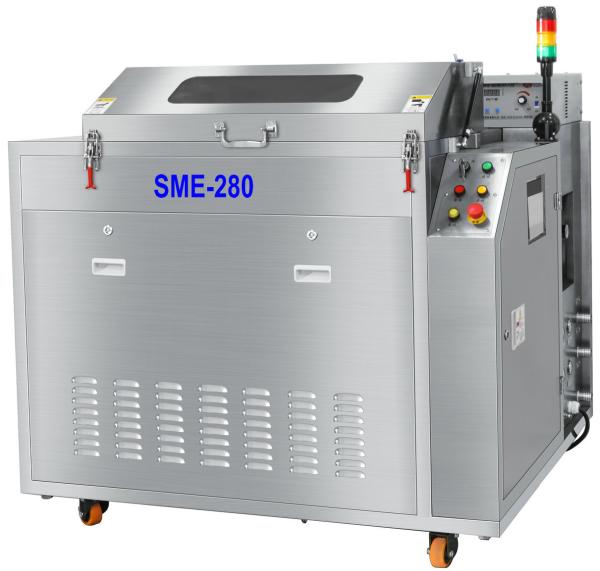

Machine Features:
1. Special designed to clean printing oil, silver paste and other
organic and inorganic contaminations on Squeegees .
2. Ultrasonic and spray clean at the same time to clean all the oil
off from the squeegees.
3. Clean,rinse,dry process, thoroughly clean, standby and ready to
use at any time.
4. 4 squeegee racks : can clean 6pcs 1200mm squeegees in one time.
5. State of the process is visible through a large observation
window.
6. Clean detergent heat system heat cleaning detergent to a certain
temp, raise cleaning efficiency and reduce clean time.
7. Easy operation interface, quick setting clean parameters.
Different passwords can be set.
8. Inner filter makes detergent used repeated. .
9. Totally SUS304 structure, very firm and attractive.
Machine Spec:
| Item | SME-290 Spec |
| Squeegee numbers | 4pcs of 1200mm squeegees one time, 12 pcs of 500mm one time |
| clean lqiuid tank capacity | 150L |
| rinse water tank capacity | 150L |
| Clean time | 5~10min |
| Rinse time | 1~2min |
| Dry time | 10~30min |
| cleaning liquid heat temp | Room temp~60ºC |
| Dry temp | Room temp~99ºC |
| water temp | Room temo~60ºC |
| Cleaning liquid filter | 1um |
| Rinse water filter | 1um |
| clean/ rinse pump | 1.1KW |
| ultrasonic power | 1.2KW |
| Power/air supply | AC380V/50A/50HZ,30KW;0.5Mpa |
| Machine size | L1900 x W1700 x H1700(mm) |
| Machine weight | 800KG |
Questions and Answers:
Q1. How the machine clean squeegees?
A1: We use ultrasonic and spray cleaning technology to make good
cleaning result.
Q2: Do you use solvent as cleaning agent?
A2: No, we use flash point 270℃ liquid to clean to make cleaning
process safe and efficient.
Comparison pictures before and after cleaning:
