    Spring Support Busbar Accessories For Busbar Installation

    Ask Lasest Price
    Model Number : KD-TH
    Certification : ISO9001
    Brand Name : Kiande
    MOQ : 1000PCS
    • Product Details
    • Company Profile

    Spring Support Busbar Accessories For Busbar Installation

    Spring Support Busbar Accessories For Busbar Installation

    Key Specifications / Special Features:

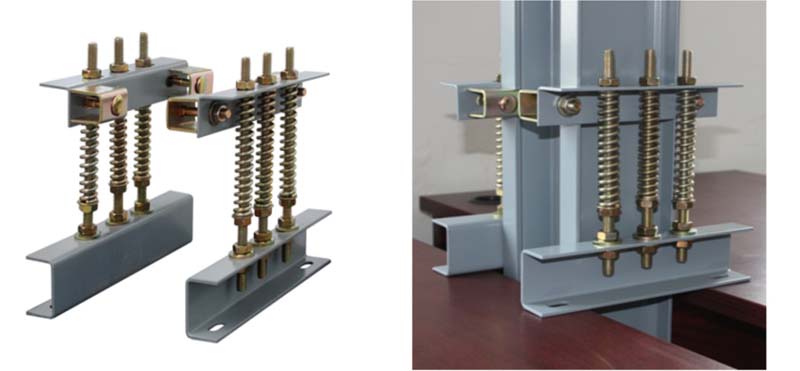

    Spring support used on bus bar installation
    We are a one-stop shop for customers to buy bus bar accessories.

    1. Custom
    2. 3C compliant
    3. Enough stock for standard ones

    No.ItemSpecificationParameters
    1Spring support60*40*5mm
    60*40*3mm
    2Spring17L120L=120mm

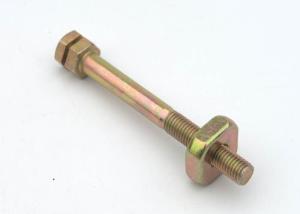

    3Double headed boltM10*230mm
    4SupportVertical / flatwise

    Installation Instructions for mounting spring hanger
    1 Fit the Spring Hanger to the ‘U’ clamp already fitted to both side of the bustrunking (Rising Mains)..
    2 Remove nut A from Rigid hanger assembly, and pass the M16 bolt thru the holes in the ‘C’ channel already grouted
    on the floor/wall
    3 By virtue of bustrunking weight the spring will compress and creates a gap between nut ‘C’ and L support. Tighten nut
    ‘C’ by hand so as to eliminate the gap.
    4 Adjust nut B on both sides of bustrunking until it reaches desired level for fixing joint with lower bustrunking. Ensure
    that nut B is adjusted equally on both sides to install bustrunking vertically straight.
    5 Lock nut A from lower end of bolt to the ‘C’ channel.
    6 Repeat step #1,2,3,4,5 for subsequent bustrunking.
    7. Loosen nut C to allow enough gap for spring to expand under thermal conditions after complete installation.
