1000A Copper Bus Duct Expansion Joint One Bolt Busbar Accessories For System Connection

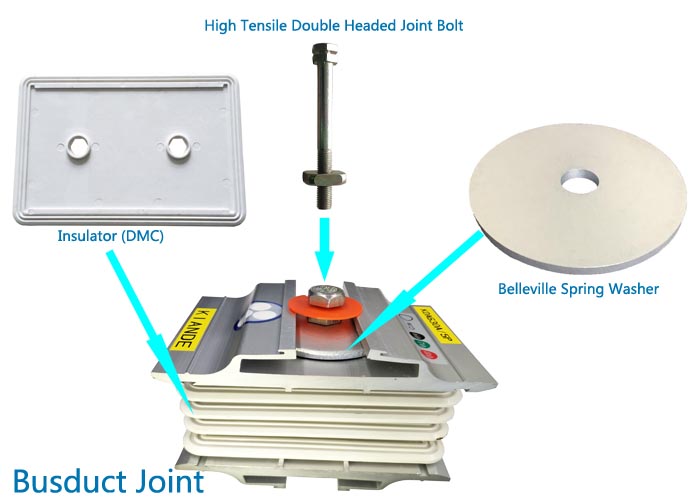

Busduct joint is used to connect two elements of the busbar systems, it can be fitted or removed in installed condition without removal of the adjacent sections or elements .The torque nut ensures tigthness of joints at desired torque and eleminates the need of torque wrench during installation. Heavy duty side plates and Belleville washers insures uniform distribution of pressure. Joints can be tightened easily with the help of a spanner on one side only.

Busbar Trunking System is the is a system of distributing electric power using copper or aluminium busbar with suitable enclosures and good amount of protection to prevent the cables from getting damaged due to foreign bodies. ... The system of cooling is much better than traditional cabling system.

What is Busduct Joint component?

Joint block is operatable by one / two shear off bolts.

Joint assembly can be removed / installed at any time in installed condition.

Disc spring washer are used in Uniblock joint to uniformly distribute pressure.

Recommended torque for tightening is 7 Kg-mtr.

These joints are specially designed to accommodate thermal expansion of busbars and housing.
