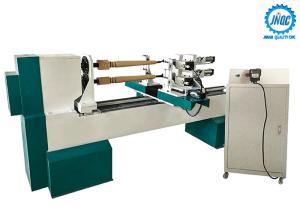

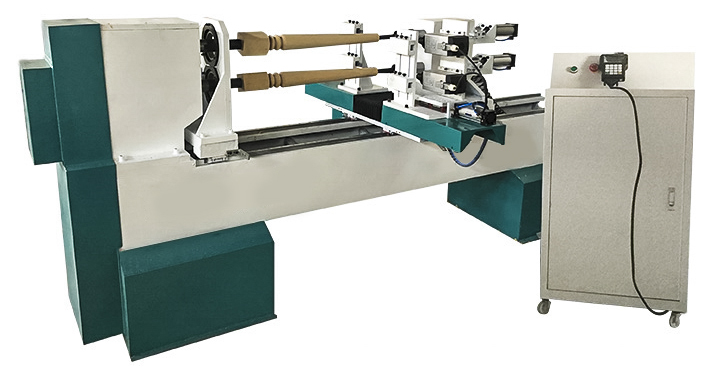

Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm
Posts, Furniture Columns
What is Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm
Posts, Furniture Columns
Double axis wood lathe machine with double turning axis, which can
turn 2 pieces wood columns with maximum 160mm diameter and 1500mm
length at the same time. The 2 axis wood turning lathe machine
processing length can be customized to 2000mm, 2500mm or 3000mm.
Double axis CNC wood lathe is not only used for 2D turning and
broaching, but also used for 3D carving and cutting with the
additional spindle, now the best 2 axis CNC wood lathe for sale
with affordable price.
Advantages of Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm
Posts, Furniture Columns
1. The whole lathe machine body is cast iron, which is high
temperature annealing and vibrating stress relief, so the lathe
body is stabilized and will not be deformed forever.
2. Double axis can double working efficiency, with 4 pcs wood lathe
cutter make the wood cutting more smooth and stable.
3. The wood lathe machine is equipped with 2pcs spindles for
twisting, grooving, slotting, etc.
4. The wood lathe adopts advanced DSP system with USB connection,
operated with the handle, convenient operation. The lathe can
completely work off-line and do not take any computer resources.
5. X and Y axis with Taiwan TBI ball screw and Taiwan Hiwin helical
square guide rail with high transmitting precision and longevity. .
6. Y axis with Helical gear transmission way, which makes higher
working speed, and with higher weight load, smooth running, and
lower noise.
7. Rotating speed is adjusted by inverter, and the speed data is
shown on controlling cabinet panel.
8. One time tool setting to finish the whole work piece.
9. Compatible with several CAD/CAM design software.
Applications of Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm
Posts, Furniture Columns
The wood lathe machine is mainly used for staircases, stairway
balusters, stairway newel posts, dining table legs, end table legs,
sofa table legs, bar stool legs, chair legs, chair arm posts, chair
stretchers, bed legs or rails, lamp posts, baseball bats, wood
broom handle and other furniture columns.
Double Axis Wood Turning Lathe Machine is equipped with double
spindles with the function of carving, slotting, hollowing on wood
strip.
Technical Parameters of Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm
Posts, Furniture Columns
| CNC Wood Lathe 1516 ---2 axis 4 cutters 2 spindles |
| Model | QCW1516 with 2 axis 4 cutters 2 spindles |
| Processing Range | Diameter: 20mm-160mm (2-axis working); 20mm—300mm (1 axis working) Length: 200mm—1500mm (2000mm, 2500 and 3000mm optional) |
| Main Rotary Motor | 5.5KW servo spindle with servo inverter |
| Main Rotary Shaft Speed | 0-3000r/min |
| Maximum Processing Speed | 2000mm/min |
| Carving Spindle | 3.5KW ChangSheng air-cooling spindle with inverter |
| Spindle steering device | Universal adjustable without motor (The spindle can only work horizontally.) |
| Motor and Driver | Stepper motor 450B, 450C and Drive YKA2811MA |
| Transmission Method | X Z axis: Taiwan HIWIN NO.25 square rail & TBI ball screw Y axis: Taiwan HIWIN NO.25 square rail & rack |
| Lathe Frame | Cast iron |
| Cutter brand | FUWANG Alloy cutter * 4 sets |
| Other devices | Auto oil-lubricating system; Air valve with water and oil separating |
Operating System
http://www.richnc.com.cn/en/product/content-23.html
| Controlling Model | RichAuto A132 DSP control |
| Internal Memory | 512MB |
| Display Screen | 128*64 Monochrome LCD |
| Communication Port | U disk,USB cable |
| Breakpoint Processing Function | Support |
| Soft/Hard Limit | Support |
| Password Protection | Support |
| Drawing software | Autocad |
| Handle recognition file format | *.DXF The engraving file uses G code (*.uoo, *.nc, *.mmg) |
| Position Precision | ±0.01mm |
| Pneumatic Pressure | 0.6-0.8Mpa |
| Lathe Net / Package Weight | 1600 / 1800kg |
| Lathe Net / Package Dimension | 3000*1250*1650mm / 3100mm*1280*1700mm |
| Power Supply | AC380V,3PH,50HZ |
Details of Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm
Posts, Furniture Columns

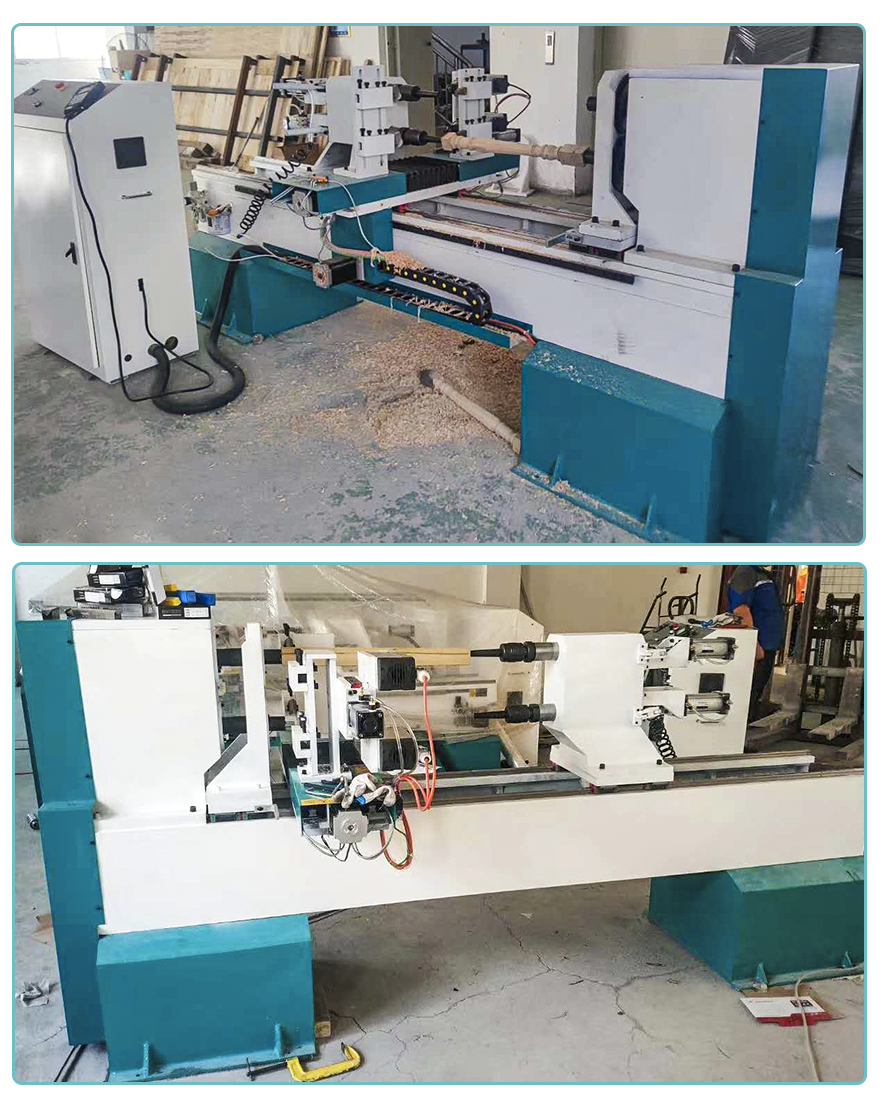

Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm
Posts, Furniture Columns in factory:
The spindles on Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm
Posts, Furniture Columns:
The 4 cutters on Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm
Posts, Furniture Columns:
The control cabinet on Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm
Posts, Furniture Columns:
The rotary fixer on Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm
Posts, Furniture Columns:
Our service of Double Axis Wood Turning Lathe Machine for Chair Legs, Chair Arm
Posts, Furniture Columns
1. The company who initially provide 3 years warranty in the world.
2. 24-hour full after sales service.
3. All finished machine we delivered are 100% strictly tested by
our QC department and engineering department.
4. OEM Service Customized and OEM orders are welcome due to our
abundant experiences. All the OEM services are free.
