CNC Wood Turning Lathe Machine For 3D Turning Carving Broaching
What is CNC Wood Turning Lathe Machine For 3D Turning Carving Broaching ?
https://youtu.be/iXmC-wtTpm4
CNC wood turning lathe machine is widely used in wood processing,
which is professional for processing various wood cylindrical
workpiece with fast speed and precise effect. It can be called wood
lathe, cnc lathe , wood turning lathe , cnc wood turning machine , cnc lathe machine. we have different configuraions with cnc lathe
machine such as 1 axis with 1 blade or 2 blades , 2 axis with 2
blades or 4 blades , 3 axis with 3 blades or 6 blades , all the
axis can be installed spindle with universal bracket for different directions of engraving, slotting and twisting , also we have auto-blade changer device and auto feeding device
for your requirements.
4 axis CNC wood lathe is not only used for 2D turning and
broaching, but also used for 3D carving and cutting with the
additional spindle, now the best 4 axis CNC wood lathe for sale
with affordable price.
Advantages of CNC Wood Turning Lathe Machine For 3D Turning Carving Broaching
1. Heavy cast iron lathe bed. Avoid shaking when the motor rotates
fast for big sizes workpiece process, and the turning speed can be
adjusted through the frequency converter.
2. Maximum working length is 1500mm, Max turning diameter is 300mm.
3. 4 axis CNC wood lathe with one chuck and one backlash for fix
materials, one spindle for carving.
4. 4 axis CNC wood lathe adopts Taiwan TBI ball screw and Taiwan
Hiwin square rail with high transmitting precision and longevity.
Bid module helical/diagonal rack, high precision and durable.
5. The wood lathe has 2 cutters (The Rough turning cutter and
finish turning cutter work synchronously with layered process) and
so that improve the efficiency and work-piece surface quality.
6. Adopting advanced RichAuto DSP A132S system with USB connection,
operated with the handle, convenient operation
7. Rotating speed is adjusted by inverter, and the speed data is
shown on controlling cabinet panel.
8. Compatible with Autocad software, Coredraw, it is easier for
drawing designs .
Applications of CNC Wood Turning Lathe Machine For 3D Turning Carving Broaching
CNC Wood turning lathe QCW1530 is applied in various cylindrical workpiece, Roman columns, various
of staircase column, tubular sharp, bowl sharp, vehicle wood
crafts, stairway balusters, staircase columns, stairway newel
posts, end table legs, dining table legs, bar stool legs, sofa
table legs, general columns, washstand, baseball bats, wooden
vases, car wooden furniture, children' s bed columns, chair
stretchers, chair arm posts, bed rails, lamp posts, sofa feet, bun
feet and other cylindrical workpieces.
Technical Parameters of CNC Wood Turning Lathe Machine For 3D Turning Carving Broaching
| Model QCW1530 | Cnc wood turning lathe machine 1530 |
| Processing diameter | 20mm—300mm Note: It does not represent the machining diameter. The diameter of
the machine can be processed according to many factors such as
material and finished product. |
| Processing length | 100mm—1500mm ( max 2000mm ,2500mm for optional) |
| Number of axis | 1 axis with 2 blades |
| Controlling system | RichAuto-AutoNow-A132S |
| Spindle | Chinese high-quality Changsheng air-cooling 3.5 KW with FULING
inverter |
| Max.speed of spindle | 0-3000rmp/min |
| Motor and drive for x y z axis | Step motor 86-450B and YAKO YKA2811MA |
| Rotary motor | 5.5kw servo motor with inverter (for adjusting turning speed) |
| Other device | Auto oil-lubricating system , air filter for water and oil
separating |
| Air pressure | 0.6-0.8Mpa |
| power supply | AC 380V +-10% 3PH 50HZ |
| Package dimension | 3100mm*1280*1750mm |
| Net /gross weight | 1600kg /1800kg |
Configurations and main parts of CNC Wood Turning Lathe Machine For 3D Turning Carving Broaching

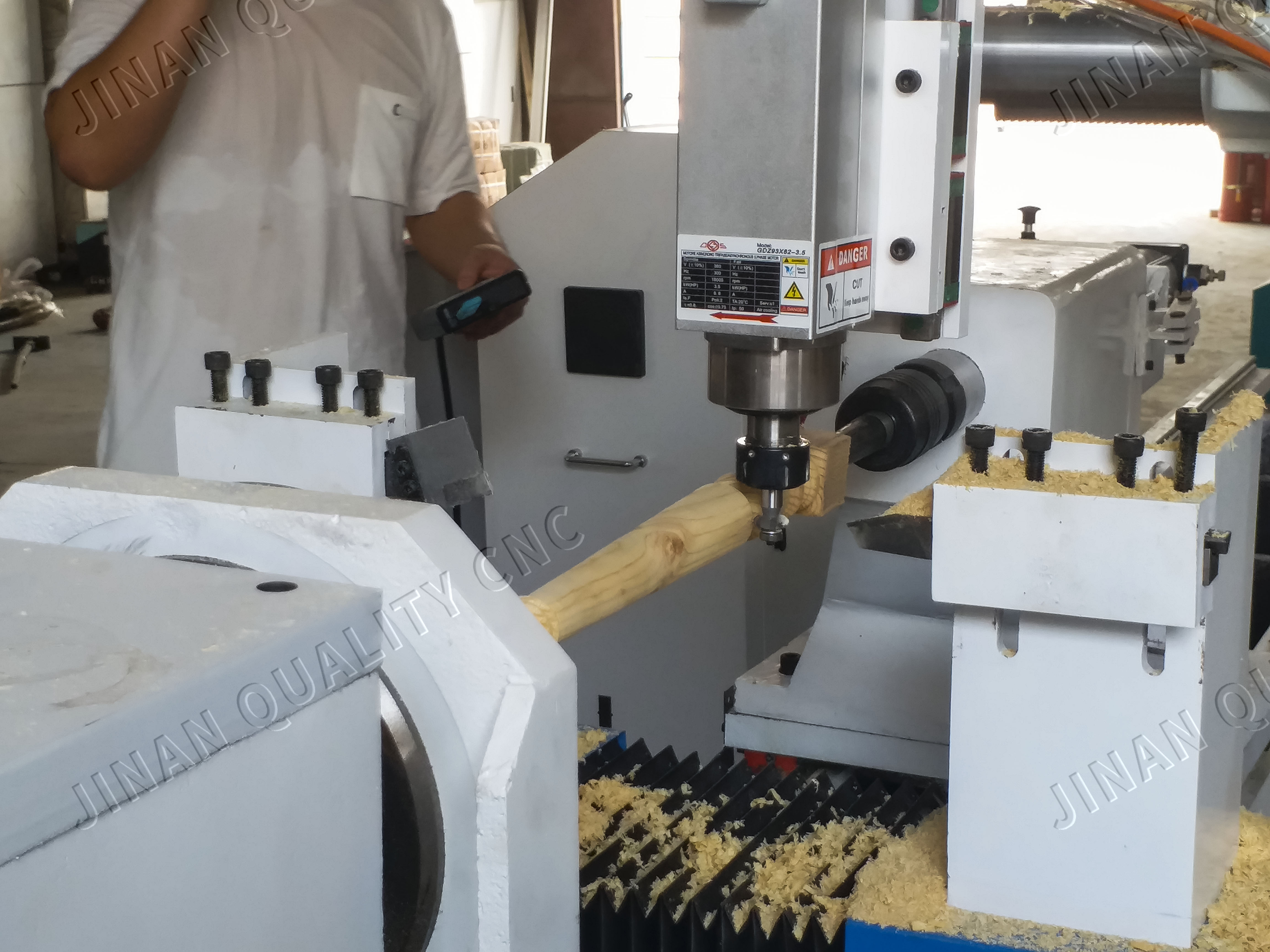

Changsheng air-cooling spindle ready for slotting the wood of on 4 Axis CNC Wood Turning Lathe Machine For 3D Turning Carving
Broaching :
Spindle with Universal bracket for Engraving, pulling and twisting
on CNC Wood Turning Lathe Machine For 3D Turning Carving Broaching :
Controlling box on CNC Wood Turning Lathe Machine For 3D Turning Carving Broaching :
Auto-lubricanting system and air filter on CNC Wood Turning Lathe Machine For 3D Turning Carving Broaching :
FUWANG profesional cutter / blade on CNC Wood Turning Lathe Machine For 3D Turning Carving Broaching :
Hot Sale Cnc Wood Turning Lathe Machines
Our service of CNC Wood Turning Lathe Machine For 3D Turning Carving Broaching
1. The company who initially provide 3 years warranty in the world.
2. 24-hour full after sales service.
3. All finished machine we delivered are 100% strictly tested by
our QC department and engineering department.
4. OEM Service Customized and OEM orders are welcome due to our
abundant experiences. All the OEM services are free.
