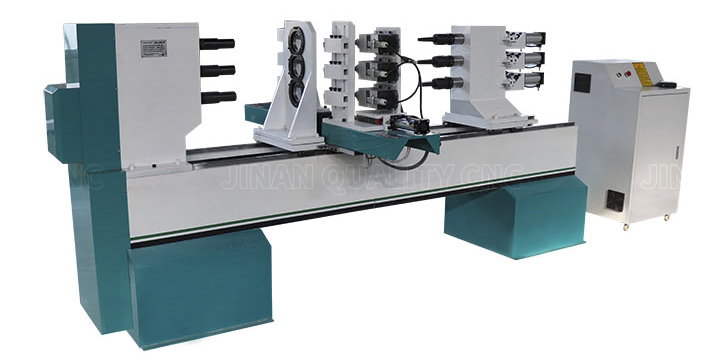

3 Axis Wood Turning Lathe Machine for Table Legs, Stair Balusters,
Stair Spindles
What is 3 Axis Wood Turning Lathe Machine for Table Legs, Stair Balusters,
Stair Spindles
3 axis wood lathe machine with three turning axis, which can turn 3
pieces wood columns with maximum 120mm diameter and 1500mm length
at the same time. The 3 axis wood turning lathe machine processing
length can be customized to 2000mm, 2500mm or 3000mm.
3 axis CNC wood lathe is not only used for 2D turning and
broaching, but also used for 3D carving and cutting with the
additional spindle, now the best 4 axis CNC wood lathe for sale
with affordable price.
Advantages of 3 Axis Wood Turning Lathe Machine for Table Legs, Stair Balusters,
Stair Spindles
1. Big torque stepper motor and Yako driver guarantee wood turning
with high speed.
2. Driving system: High quality square rails from Taiwan Hiwin and
TBI precise ball screw, which can control the linear error
effectively.
3. Best inveter: The wood turning lathe machine adopts frequency
conversion speed regulation system, which can adjust the turning
speed at any time to solve the problem of materials’ vibration.
4. Operation system: The wood turning lathe machine adopts DSP
controller, easy to operate, easy to learning.
5. Spindles are optional, the wood turning lathe machine can be
equipped with single spindle, double spindles or 3 spdinles, single
spindle could configure with chuck for bowl, cup shape turning.
Applications of 3 Axis Wood Turning Lathe Machine for Table Legs, Stair Balusters,
Stair Spindles
3 Axis wood turning lathe Machine is applied to various cylindrical workpiece, Roman columns, various of staircase
column, tubular sharp, bowl sharp, vehicle wood crafts, stairway
balusters, staircase columns, stairway newel posts, end table legs,
dining table legs, bar stool legs, sofa table legs, general
columns, washstand, baseball bats, wooden vases, car wooden
furniture, children' s bed columns, chair stretchers, chair arm
posts, bed rails, lamp posts, sofa feet, bun feet and other
cylindrical workpieces.
3 Axis Wood Turning Lathe Machine can be equipped with spindles
with function of carving, slotting, hollowing on wood strip.
Technical Parameters of 3 Axis Wood Turning Lathe Machine for Table Legs, Stair Balusters,
Stair Spindles
| CNC Wood Lathe 1516 ---3 axis 6 cutters |
| Model | QCW1516 (QCW1516 with 3 axis 6 cutters) |
| Processing Range | Diameter : 20mm—160mm (3 axis working); 20mm—300mm (1 axis working) Length: 200mm—1500mm (2000mm, 2500 and 3000mm optional) |
| Main Rotary Motor | 5.5KW spindle |
| Main Rotary Shaft Speed | 0-3000r/min |
| Maximum Processing Speed | 2000mm/min |
| Motor and Driver | Stepper motor 450B, 450C and Drive YKA2811MA |
| Transmission Method | X Z axis: Taiwan HIWIN NO.25 square rail & TBI ball screw Y axis: Taiwan HIWIN NO.25 square rail & rack |
| Lathe Frame | Cast iron |
| Cutter brand | FUWANG Alloy cutter * 6 sets |
| Other devices | Auto oil-lubricating system; Air valve with water and oil separating |
Operating System
http://www.richnc.com.cn/en/product/content-23.html
| Controlling Model | RichAuto A132 DSP control |
| Internal Memory | 512MB |
| Display Screen | 128*64 Monochrome LCD |
| Communication Port | U disk,USB cable |
| Breakpoint Processing Function | Support |
| Soft/Hard Limit | Support |
| Password Protection | Support |
| Drawing software | Autocad |
| Handle recognition file format | *.DXF The engraving file uses G code (*.uoo, *.nc, *.mmg) |
| Position Precision | ±0.01mm |
| Pneumatic Pressure | 0.6-0.8Mpa |
| Lathe Net / Package Weight | 1600/ 1800kg |
| Lathe Net / Package Dimension | 3000*1250*1700mm / 3100mm*1280*1750mm |
| Power Supply | AC380V,3PH,50HZ |
Configurations and main parts of 3 Axis Wood Turning Lathe Machine for Table Legs, Stair Balusters,
Stair Spindles
Changsheng air-cooling spindle ready for slotting the wood of on 3 Axis Wood Turning Lathe Machine for Table Legs, Stair Balusters,
Stair Spindles:
Our service of 3 Axis Wood Turning Lathe Machine for Table Legs, Stair Balusters,
Stair Spindles
1. The company who initially provide 3 years warranty in the world.
2. 24-hour full after sales service.
3. All finished machine we delivered are 100% strictly tested by
our QC department and engineering department.
4. OEM Service Customized and OEM orders are welcome due to our
abundant experiences. All the OEM services are free.
About us
Q1: This is the first time I use this kind of machine, is it easy
to operate?
We will send you manual and guide video in English, it can teach
you how to operate the machine. If you still can not learn how to
use it, we can help you by "Teamviewer" online help software. Or we
can talk by phone, email or other contact ways.
Q2: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have
any problem under "normal use".
Q3: What's the guarantee, in case the machine breaks down?
The machine has 3 years guarantee.
Q4: How about the documents after shipment?
After shipment, we will send all original documents to you by DHL,
including Packing List, Commercial Invoice, B/L, and other
certificates as required by clients.
Q5: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard
machines and customized machines according to client’s specific
requirements, it would be 15 to 30 days.
Q6: How's the payment?
Telegraphic Transfer (T/T).
Q7: Do You Arrange Shipment For The Machines?
Yes, we will arrange shipment for you for FOB or CIF price. For EXW
price, clients need to arrange shipment by themselves or their
agents.
