Table Type Automatic Copper Wire Stripping Machine For Scrap Copper
Cable

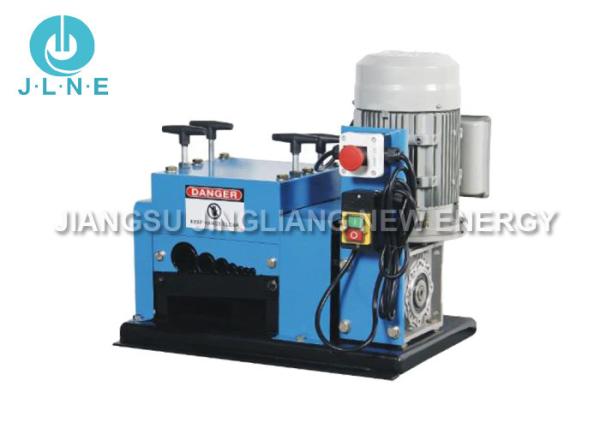

Automatic Wire Stripping Machine is used for wire stripping and
recycling metal, this is a kind of used cable recycling equipment.
This machine can separate the cable core from cable sheath, the
blades cut wire sheath and the rollers separate the core from
sheath by squeezing.
TF-A2 cable stripper is a small stripping machine, it can process
1.5-42mm diameter and have 7 round holes. This machine suit for
varies kinds of electric wires and cable such as cooper wires,
aluminum wire etc as long as the wire size among 1.5-42mm.
Cable stripper machine Specifications:
| Model: | TF-A2 |
| Processing Capacity: | 30m/min |
| Cable processed: | Single&Multi-strand cable |
| Cable diameter: | 1.5-42mm |
| Blades quantity: | 10 pieces |
| Hole quantity: | 7 |
| Power: | 0.37KW |
| Voltage: | Customized |
| Stripper dimension: | 540*410*500mm |
| Stripper weight: | 69kg |
Wire strippling tool Main Parts:
Cable input: Scrap cables are put into the hole for peeling. There
are different size of the holes, and customers could choose the
applicable one according to cable diameter.
Peeled cable output: Cables after peeling get out of this plate:
clean core and clean pvc cable skin.
Cutting blades: Cable skin is cut by blades and separated with
inside core.
Gear: Gears help the roller with blades rotate to finish cable
peeling.
Plug: We could put different standard plug according to customers'
demand.
Wheel: There are wheels on the stripper.It is easy to move the
machine freely.
Maintenance of cable stripper:
1) This machine is suitable for various kinds of round cables and
sheath flat cables.
2) The operating methods are similar operated by both manual and
electrical ,no matter which way ,operators have to check the size
of cables and feed channel to make sure they are applicable before
operation.
3) In case wire broken after stripping ,please follow the solutions
as below:
• Adjust the tightness of the spring both sides of the screw rod.
• Check whether the feeding holes are misplaced.
• If the stripping blades is too sharp ,use oil stone to grind a
bit.
• Lubricating suitable engine oil on the surface of adjusting
screws and slider to prevent locking and reduce noise.
FAQ:
Q: Are you a factory or trading company?
A: We are the manufacturer and welcome you to visit us.
Q: How to choose a suitable type/ model of machine?
A: The detail catalog can show common specification of machine,
If you want to customized the products, you can show us your
detailed requirements and drawing then discuss with sales.
Q: Do you accept customized order?
A: Yes, machine specifications can be customized.
Q: Which kind of materials can be processed on this machine?
A: Different machines can use different materials. If you want to
know more information, please contact with sales.
Q: Do you have overseas service?
A: Yes , we will provide the correspondent after-sales solutions
combined actual problems.
Normally help customers to solve the problem through phone ,e-mail
,Skype and internet video first if problems is easily.
If the problems is very complex then will dispatch our engineers to
clients country to solve the problems based on clients willing
assume the charges.
Q: What's your warranty?
A: We have one year guarantee , within one year, if the component
of the machine broken, we offer the component freely, but the
delivery fee should be paid by client.
