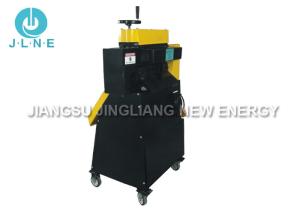

Large Power Industrial Automatic Cable Wire Cutting Stripping
Machine
TF-8 is newly developed suitable for all kinds of wires (disperse
automatically), wires within copper clad, wires within aluminum
clad, and steel wires. blades using imported material , more
durable and highly cutting effect , it is the best choose for
1-90mm waste cable recycling .
Features&Advantages of Wire stripping machine:
1. Widely processing range: wires and cables with diameter
1mm-160mm;
2. Having low working noise and light in weight;
3. High peeling speed can make sure high working efficiency.
4. wire stripper is driven by single or three phase motor.
5. two or four adjusting handles to adjust the distance between
knives or rollers
6. simple knife change
7. heavy-duty gearbox and electric motor with start/stop butter and
safety shut-off
Specifications of cable stripper machine:
| Model: | TF-8 |
| Processing Capacity: | 30m/min |
| Cable processed: | Single&Multi-strand cable |
| Cable diameter: | 1-65mm |
| Power: | 2.2KW |
| Voltage: | Customized |
| Stripper dimension: | 670*670*1200mm |
| Stripper weight: | 180kg |
Cable stripping Machine Structure:
1 : Height adjusting hand wheel
2 : blades
3 : inlet hole
4 : width adjusting wheel
5 : Switch
6 : hole range is within 12mm
Working Principle of wire stripping machine:
1. This model wire stripping machine is both manually and
electricity operated machine.Pushing wire automatically,just need
hold by labors.
2. Under electric mode, you just need adjust the knifes and gears,
and then machine can strip wire automatically.
3. Adjusting gears to suit different diameter wire,the outer sheath
and inner conductor will be stripped by blade when waste cables
cross through the middle guide wheel.
Maintenance of cable stripper:
1) This machine is suitable for various kinds of round cables and
sheath flat cables.
2) The operating methods are similar operated by both manual and
electrical ,no matter which way ,operators have to check the size
of cables and feed channel to make sure they are applicable before
operation.
3) In case wire broken after stripping ,please follow the solutions
as below:
• Adjust the tightness of the spring both sides of the screw rod.
• Check whether the feeding holes are misplaced.
• If the stripping blades is too sharp ,use oil stone to grind a
bit.
• Lubricating suitable engine oil on the surface of adjusting
screws and slider to prevent locking and reduce noise.
FAQ:
Q: Are you a factory or trading company?
A: We are the manufacturer and welcome you to visit us.
Q: How to choose a suitable type/ model of machine?
A: The detail catalog can show common specification of machine,
If you want to customized the products, you can show us your
detailed requirements and drawing then discuss with sales.
Q: Do you accept customized order?
A: Yes, machine specifications can be customized.
Q: Which kind of materials can be processed on this machine?
A: Different machines can use different materials. If you want to
know more information, please contact with sales.
Q: Do you have overseas service?
A: Yes , we will provide the correspondent after-sales solutions
combined actual problems.
Normally help customers to solve the problem through phone ,e-mail
,Skype and internet video first if problems is easily.
If the problems is very complex then will dispatch our engineers to
clients country to solve the problems based on clients willing
assume the charges.
Q: What's your warranty?
A: We have one year guarantee , within one year, if the component
of the machine broken, we offer the component freely, but the
delivery fee should be paid by client.
