Professional Factory Supplying Auto Enamel Scrap Cable Stripping
Machine

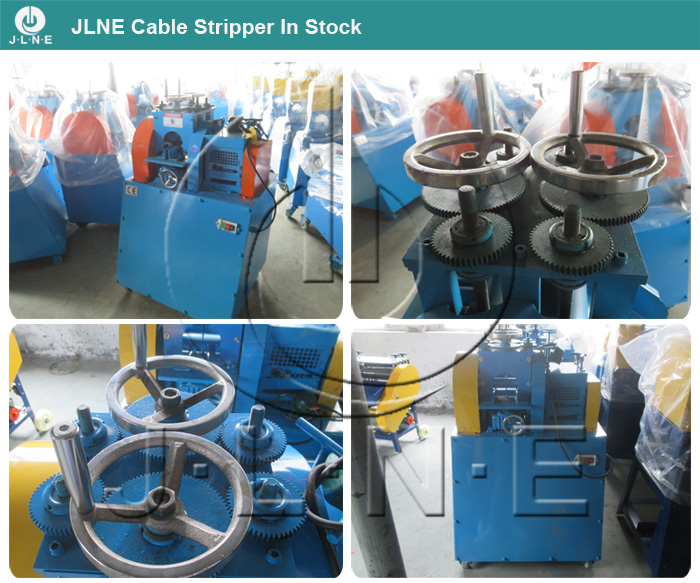

This Cable Stripper / Cable Stripping Machine / Cable Recycling
Machine is specially designed to cut and remove insulation from
scrap copper wires and cables. They can strip almost all types of
scrap wires and cables.
After being stripped by a Cable Stripper / Cable Stripping Machine
/ Cable Peeling Machine, metal like copper, aluminum or steel can
be recovered.
Electric Stripping Machine Application:
This machine is widely used among the wire stripping industry. It
can peel fiber optics protective covering flat wire, the
outsourcing metal steel silk thread, he rubber electric cable line
and high tension cable. It can process 1.5mm diameter sheath line
and steel wire line and so on. The increase diameter, the upper
shaft can be arbitrary up and down.
Specifications of cable stripper machine:
| Model: | TF-8 |
| Processing Capacity: | 30m/min |
| Cable processed: | Single&Multi-strand cable |
| Cable diameter: | 1-160mm |
| Power: | 2.2KW |
| Voltage: | Customized |
| Stripper dimension: | 670*670*1200mm |
| Stripper weight: | 180kg |
Working Principle of wire stripping machine:
1. This model wire stripping machine is both manually and
electricity operated machine.Pushing wire automatically,just need
hold by labors.
2. Under electric mode, you just need adjust the knifes and gears,
and then machine can strip wire automatically.
3. Adjusting gears to suit different diameter wire,the outer sheath
and inner conductor will be stripped by blade when waste cables
cross through the middle guide wheel.
Attention:
1. Operator should pay special attention to the safety of hands.
FATIGUE OPERATION IS FORBIDEN!
2. The pressure should not be too tight. Overload work will shorten
the life span of the machine.
3. If the cable cannot get through, operator has to check whether
the belt is loose or the pressure is too tight, or the blades are
wrong directed.
4. If this machine work with heavy duty for a long time, operator
has to check the oil capacity, grease lubrication is required on
the fur shaft gears before working every three months.
5. Keep daily maintenance of the four bearings, any damage of
bearing will cause shaft broken easily after continuous operating.
6. When work with bigger size cables, the upper shaft should be
kept hanging on the same line by both sides.
7. Any loosing of the four lifting screw nuts of the transmission
and motor have to be adjusted by fastening the chain and V-belt.
FAQ:
Q: Are you a factory or trading company?
A: We are the manufacturer and welcome you to visit us.
Q: How to choose a suitable type/ model of machine?
A: The detail catalog can show common specification of machine,
If you want to customized the products, you can show us your
detailed requirements and drawing then discuss with sales.
Q: Do you accept customized order?
A: Yes, machine specifications can be customized.
Q: Which kind of materials can be processed on this machine?
A: Different machines can use different materials. If you want to
know more information, please contact with sales.
Q: Do you have overseas service?
A: Yes , we will provide the correspondent after-sales solutions
combined actual problems.
Normally help customers to solve the problem through phone ,e-mail
,Skype and internet video first if problems is easily.
If the problems is very complex then will dispatch our engineers to
clients country to solve the problems based on clients willing
assume the charges.
Q: What's your warranty?
A: We have one year guarantee , within one year, if the component
of the machine broken, we offer the component freely, but the
delivery fee should be paid by client.
