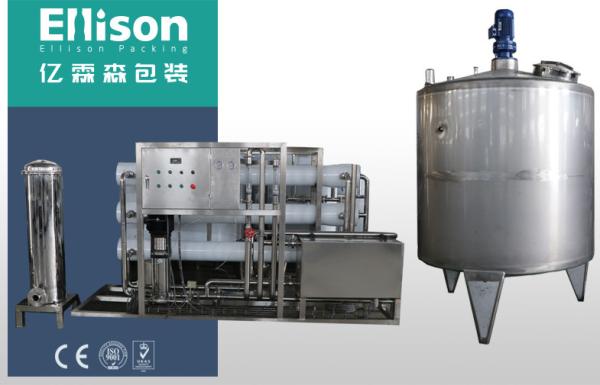

Food Industry Mineral Water Purification Machine 1000LPH - 20000LPH
Flow chart of water treatment
Raw water tank—raw water pump—multi-medium filter--active carbon
filter –water softner (Sodium Ion Exchanger)—precision filter—RO
mainframe(including chemical cleaning device)—ozone
generator—finished product water tank
Silica sand filter: It can remove the suspended solids and gluten particles in the
water, thus reduce the turbidity of water.
Active carbon filter: It can remove the pigment, smell and a large number of biological
organisms in the water
Sodium ion exchanger: It can remove calcium and magnesium ions in the water, so as to
soften the water.
Cartridge filter: It can ensure that the granularity of the water into reverse
osmosis membrane is less than 0.1um.
Reverse Osmosis
The Reverse Osmosis device is an equipment to purify the saline
water with the action of pressure difference of semi-permeable
membrane. It is called reverse osmosis, as it is counter to natural
penetration direction. Difference materials have different osmotic
pressures.
The reverse osmosis can remove more than 97% of the soluble salt
and above 99% of the colloid, microorganism, particles and organic
materials, becoming the best first-choice choice equipment in the
engineering of modern purified water, highly purified water and
space water (super-purified water). The most highlighted features
are low energy consumption, no pollution, simple technique,
high-quality water and convenient operation and maintenance.
UV sterilize: It uses the UV to kill some bacteria that may also pass through
the reverse osmosis system.
Ozone sterilizer: Some bacteria may not be killed by UV, the sterilizer uses ozone
to kill those bacteria.
Water treatment
We adopt different equipment to produce pure water, mineral water
etc. The main equipment are silica sand filter, active carbon
filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis),
UV sterilizer, precision filter, ozone generator, water tank etc.
The treatment capacity is 0.5-50 ton/hour. It can effectively get
rid of muddy organic matter, iron, manganese and oxide, filter
suspended substance, colloid, remained oxygen of microorganism and
some of heavy metal ion in the water, reduce the hardness of the
water to make all specifications of the water quality fully meet
the state fresh water standard of fresh drink water.
Application
It can effectively get rid of muddy organic matter, iron, manganese
and oxide, filter suspended substance, colloid, remained oxygen of
microorganism and some of heavy metal ion in the water, reduce the
hardness of the water to make all specifications of the water
quality fully meet the state fresh water standard of fresh drink
water.
Parameter
| Model | Salt Rejection | Capacity | Intet Tube Dia(mm) | Product Tube Dia(mm) | Dimensions Dia(mm) | Weight(kg) Dia(mm) |
| RO-1000 | >95% | 1000 | 40 | 32 | 3600×1000×1700 | 350 |
| RO-2000 | 2000 | 40 | 32 | 3600×1000×1700 | 350 |
| RO-3000 | 3000 | 40 | 32 | 3600×1000×1700 | 400 |
| RO-4000 | 4000 | 40 | 32 | 3600×1000×1700 | 420 |
| RO-5000 | 5000 | 50 | 40 | 3600×1000×1700 | 450 |
| RO-8000 | 8000 | 50 | 40 | 3600×1400×1700 | 500 |
| RO-10000 | 10000 | 65 | 50 | 3600×1400×1750 | 550 |
FAQ
Q: How about the spare parts?
A: We will send one year enough easy broken spare parts together
with the machines,shipping together.During the warranty time,we
will supply the spare parts with our cost including the delivery
fees.
Q: How long time for installation?
A: According your machines order,we will send one or two engineers
to your plant,it will take about 10 days to 25 days.
Q: How to install my machines when it arrives?how much the cost?
A: We will send our engineers to your factory to install the
machines and train your staff how to operate the machines.Customer
pay air tickets go and back,accommodation and daily salary.
Q: When can I get my machine after I paid?
A: Normally production time is around 30-60days,the exactly depend
on what kind of machine you order.The shipping time is based on
your destination port.
Q: What’s your guarantee or the warranty of the quality if we buy
your machines?
A: We offer you high quality machines with 1 year guarantee and
supply life-long technical support.
Q: Are you a trading company or a manufacturer?
A: We are an Original Equipment Manufacturer so that we can provide
you high quality machines in raeasonable price, Welcome to visit
us.
More photos for ref
