10000LPH Mineral Water Purification Machine / Pure Water Treatment
Plant
Brief introduction
Raw water can be city water, well water, lake water, spring water,
part river water etc. Pre-treatment: booster pump, quartz sand
filter, active carbon filter, water softener, ion rebirth device,
cartridge filter.
After treatment: reverse osmosis, Anti-scale system, UV sterilizer,
pure water storage tank, ozone machine
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Raw water pump/multi pump: Nanfang, Grundfos
Filter media: Quartz sand filter, active carbon filter, security filter( PP
filter)
RO Membrane: Filmtec Dow,Hydranautics
Item | Description | Material | Filter element | Function |
1 | Booster pump | SUS304 | / | To pump raw water into pre-treatment tanks |
2 | Quartz sand filter | SUS304 | Coarse sand Medium sand Fine sand | To remove metal and large particle in water |
3 | Active carbon filter | SUS304 | Quartz sand Active carbon | To absorb color and foreign smell in water |
4 | Water softener | SUS304 | Anion Cation | To reduce the water hardness in water |
5 | Ion rebirth device | ABS tank | Salin water | To clean the ion in water softener to realize recycling |
6 | Cartridge filter | SUS304 | PP film | To filter the water before entering reverse osmosis and protect the
RO membrane |

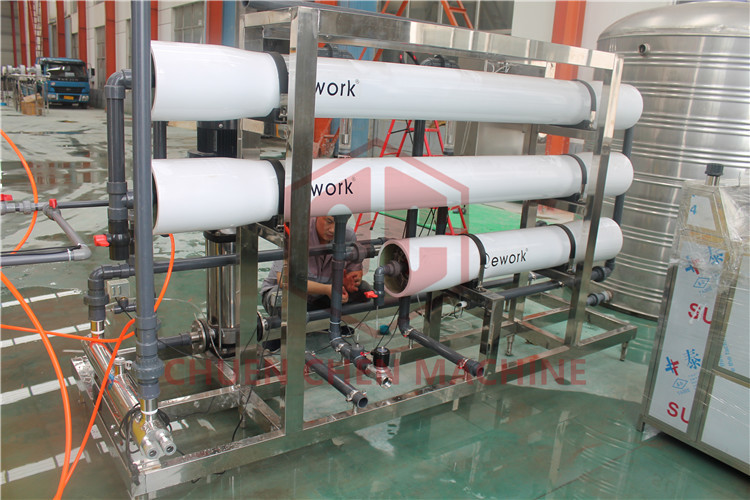

7 | Reverse osmosis | SUS304 FRP | 8040/4040 membrane | To reduce the salt in water |
8 | UV sterilizer | SUS304 | UV lamp | To kill the bacteria in water |
9 | Pure water storage | SUS304 | / | To store pure water |
10 | Ozone machine | / | Ozone generator | To kill the bacteria in water |
Advantages
Does not damage the water, no second pollution
Machine structure | -Washing, filling and capping part in one unit; -One driving system makes the speed more stable -Need one person to operate the machine -No noisy while running -More compact -Different bottles can be applied in same machine (the bottle neck
should be the same) |
Washing part | -The star wheel to hold the bottle neck to avoid damage the bottle
mouth -There is nylon grip to protect bottle mouth |
Filling part | -Round liquid tank, no residual after filling -The valves are stainless steel 304 -No bottle no filling -Filling level can be adjusted |
Capping part | -There is anti-rotary blade to fix the bottle without moving -The capping torque can be adjusted -Apply cap sterilizing tunnel by cleaning agent |
Control system | -PLC control -Touch screen -Individual electric cabinet |
Electric part | -All the electric parts are well-known brand |
Parameters of Water treatment for ref
| Model | Salt Rejection | Capacity | Intet Tube Dia(mm) | Product Tube Dia(mm) | Dimensions Dia(mm) | Weight(kg) Dia(mm) |
RO-1000 | >95% | 1000 | 40 | 32 | 3600×1000×1700 | 350 |
RO-2000 | 2000 | 40 | 32 | 3600×1000×1700 | 350 |
RO-3000 | 3000 | 40 | 32 | 3600×1000×1700 | 400 |
RO-4000 | 4000 | 40 | 32 | 3600×1000×1700 | 420 |
RO-5000 | 5000 | 50 | 40 | 3600×1000×1700 | 450 |
RO-8000 | 8000 | 50 | 40 | 3600×1400×1700 | 500 |
RO-10000 | 10000 | 65 | 50 | 3600×1400×1750 | 550 |
FAQ
Q: How Can I Visit Your Factory?
A: Our factory location: Leyu Town, Zhangjiagang City, Jiangsu
Province, China.
Contact: MOB / Wechat / WhatsApp: 0086 13584426100 (Vickie Sun)
Nearest train station: Wuxi Station / Wuxi East Station
Nearest international airport: Shanghai Pudong International
airport (PVG) / Shanghai Hongqiao International airport (SHA) /
Wuxi Shuofang airport (if you are already in China)
Q: How to can appropriate offer?
A: Please inform us below conditions to get the appropriate offer
quickly:
1, What kind of product you will produce? Water, juice, carbonated
drink, beer, ketchup or another?
2, What is your production capacity per hour / per day / per month?
3, What is your bottle types and cap types? Glass bottle, PET
bottle, Aluminum can or another? And How many bottle types that you
have?
4, What is the final labeling and packing manner?
For better communition quickly, please find us online contact
below:
MOB / Wechat / WhatsApp: 0086 13584426100 (Vickie Sun)
Email: sunpiu2012@gmail.com (Vickie Sun)

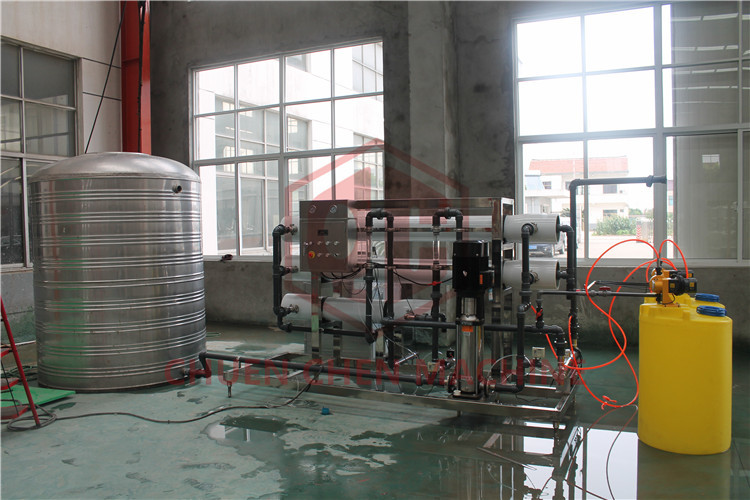

More photos for ref
