Inline Pure Water Processing Purification And Sterilizing System Small Scale

Name: Inline Pure Water Processing Purification And Sterilizing System Small Scale
Brand: Ellison
Price: 1 USD

Ask Lasest Price
Brand Name :	Ellison
Model Number :	RO-12000
Certification :	CE/ BV / ISO
Price :	Negotiated
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	7 sets per month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

Inline Pure Water Processing Purification And Sterilizing System Small Scale

Complete Solution Of Water Treatment System / Water Production Line 12000LPH

Description

Suitable water source: Municipal water, well water, river water, mountain water etc; it’s better to offer us the raw water quality report. Complete solution of water treatment system include: Pre-treatment, Reverse Osmosis and sterilizing system. Reverse Osmosis is the vital part of entire system.

Specifications

Machine description	Basic data
Raw water storage tank & pure water storage tank	Volume: 5000L Diameter: 1800mm Height: 3200mm Thickness: 3mm Legs: 3pcs Material: stainless steel 304 Surface treatment: polish Weight:500kg
Booster pump	Model: CHL20-20 Material: SUS304 Flow: 20m3/h Lift: 21m Power: 2.2KW Revolution: 2900Rpm
Quartz sand filter	Diameter: Ø1000mm Height: 2800mm Thickness: Body 2.5mm, Top 3mm Material: SUS304 Filter material: Fine quartz sand 1900kg Filter material Size: 1-2.5mm and 2.5-4.5mm
Active carbon filter	Diameter: Ø1000mm Height: 2800mm Thickness: Body 2.5mm, Top 3mm Material: SUS304 Filter material: Fine active carbon 775KG, Fine quartz sand 350kg Filter material Size: 1-2.5mm and 2.5-4.5mm
Cartridge filter	Diameter: Ø500mm Height: 1700mm Thickness: Body 2mm, Top 3mm Material: SUS304 Cartridge material: Spray-fusing polypropylene 5um, 1m length Cartridge qty: 12pcs
Reverse osmosis	Flow rate: ≥10m3/h (25℃) Recovery rate: ≥50% Design pressure: 0.8-4.5Mpa Operation: automatic control, automatic flush Membrane material: aromatic polyamide composite membrane Membrane housing material: FRP Membrane qty: 12pcs of 8040

Function

Pre-treatment	Original tank	Suggest to buy in local
	Booster pump	To pump water from original tank to the filter in next step;
	Quartz sand filter	Mainly to remove metal and big particles in water;
	Active carbonated filter	Mainly to remove foreign smell and color in water;
	Cartridge filter	Mainly to remove small particles in water to protect membrane in reverse mosis;
Reverse osmosis		It is the vital part for treating water. Mainly to remove salt in water; the working effect can reach 99.8%;
Sterilizing system	Ozone machine	Kill bacteria and foreign smell in pure water, it will be connected with pure water storage tank only and recycling;
Sterilizing system	UV sterilizing machine	It is kind of online sterilizing machine for killing Kill bacteria for pure water and installed after RO unit;

General flow chart

Raw water source	>>	Booster pump	>>	Quartz sand filter
				V
Cartridge filter	<<	Water softener	<<	Active carbon filter
V
Reverse osmosis	>>	UV sterilizer	>>	Pure water storage tank
				V ^
		Filling machine	<<	<<< V ^
				Ozone machine

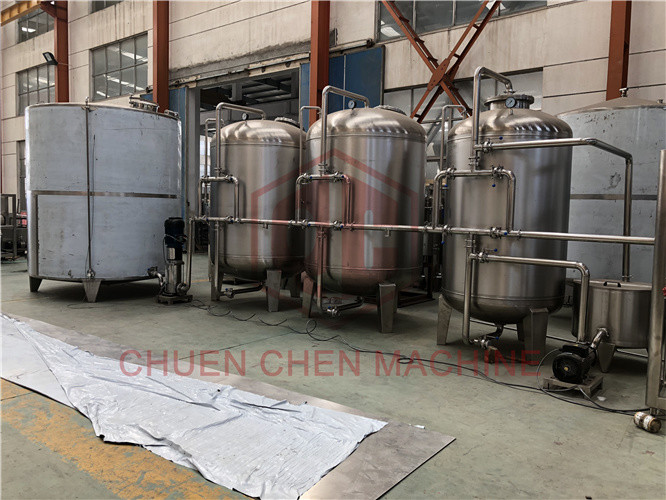

More photos for ref
