Offline PCB Depaneling Router With CCD Camera Panasonic Japan Sensor Switch

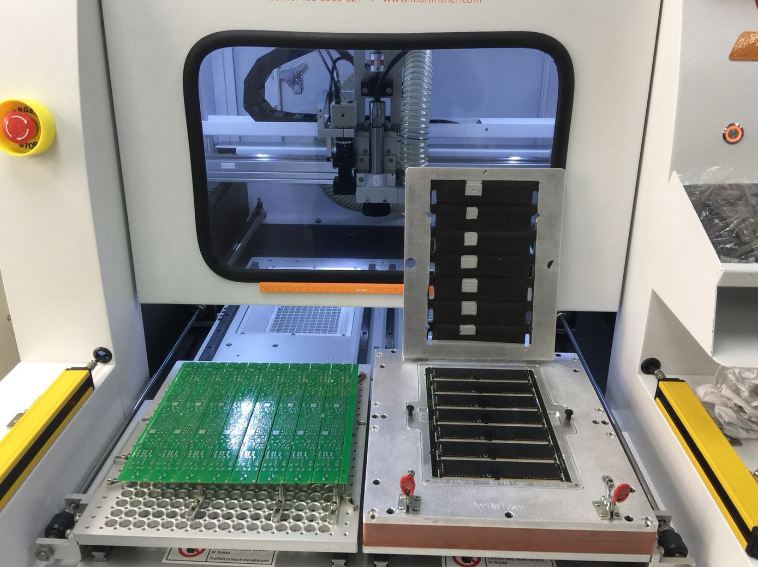

Offline PCB Depanleing Router Machine (model:YSVC-650)

Features:

1.Cutting product requirements:Left and right worktables can separate different products at the same time.

2.Cutting height requirements:Left and right worktables can separate different heights and products at the same time.

3.MARK point identification requirements:MARK points of different shapes can be identified, and MARK points can be freely set before each division.

4.Camera:LED aperture brightness can be adjusted in software.

5.Information management function:Support MES information system to seamlessly connect equipment and information management, Open Ethernet Interface, and supports TCP/IP network communication protocol, and necessary related software and programs; Open the BAR CODE function port.

6.Milling cutter management:The software can automatically adjust the height according to the thickness of the PCB board and the toughness length of the cutter to extend the service life of the cutter and standard tool detection.

7.MES docking:Open MES docking port function.

8.BAR CODE scan:Open BAR CODE Scan Port Function.

Specification and parameters:
01. X, Y cutting speed: 0 ~100mm/s
02. Machine Repeat Accuracy: ± 0.01mm
03. X, Y1,Y2 ,Z Control Methods: Industrial IPC and PC
04. X, Y1,Y2 ,Z Drive Mode: AC Fiber Optic Servo Motor
05. Machine Operation and Data Storage: PC System
06. Cutting accuracy: ± 0.05mm
07. Spindle speed: Max 60000rpm
08. Host voltage: 220V 1ψ 50 / 60HZ
09. Air pressure supply: above 4.5kg/cm2
10. Power Consumption: 1.8KVA
11. Dust Collection: Lower Dust Collection (Standard) or Upper Dust Collection
12. Dust collector voltage: 220V (380V) 3ψ
13. Upper dust collector size: L650*W400*H1350mm
14. Dust collector size: L665*W635*H1650mm

DEMO Exhibitions:

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
