100W PCB Depaneling Router For Cutting / Separator Printed Circuit Board

    Buy cheap 100W PCB Depaneling Router For Cutting / Separator Printed Circuit Board from wholesalers

    Buy cheap 100W PCB Depaneling Router For Cutting / Separator Printed Circuit Board from wholesalers
    • Buy cheap 100W PCB Depaneling Router For Cutting / Separator Printed Circuit Board from wholesalers

    100W PCB Depaneling Router For Cutting / Separator Printed Circuit Board

    Ask Lasest Price
    Brand Name : YUSH
    Model Number : YSVC-650
    Certification : CE Mark
    Price : 28000-30000 USA
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram, L/C
    Supply Ability : 100set/SETS
    Delivery Time : 3-7days
    • Product Details
    • Company Profile

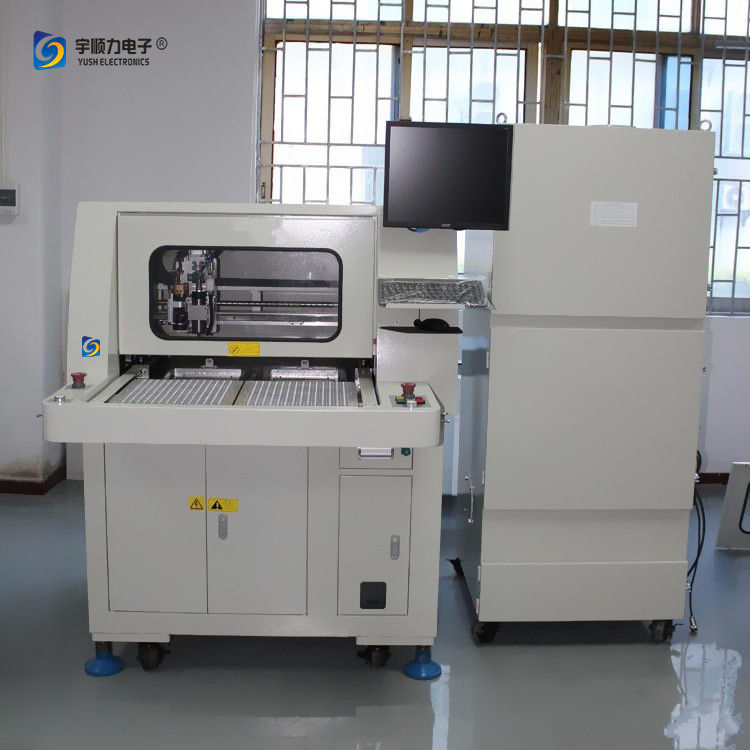

    100W PCB Depaneling Router For Cutting / Separator Printed Circuit Board

    YSVC-650-


    PCB Router Machine for Cutting or Separator Printed Circuit board


    specifications


    I. Hardware
    System models / typesWindows XP Professional
    Overall
    FootPrint (LxWxH)800mm*850mm*1700mm
    Weight (Approximate)150KG
    Adjustable machine footings (for height)60~110mm
    Manipulator
    Manipulator MotorPanasonic MINAS A5 series
    Manipulator Repeatability0.001mm
    Axis configuration
    Maximum Axis Travel (X,Y,Z)400mm*650mm*50mm
    Work station
    Board PositioningFixture positioning, thimble universal positioning, vision correction
    Loading/Unloadingmanual
    Routing Range320mm*320mm
    Panel Thickness3mm
    Fixturing
    Rigid FixturingUniversal thimble & anti-static fixture
    Top ClampUsing hole positioning
    Spindle Motor
    Power100W
    Max. speed60000rpm/min
    CoolingNatural cooling and air-cooled
    Router bit size3mm*3mm
    Tool changeUse Special wrench
    Routing capability
    Max routing speed100mm/s
    Repeatability0.02mm
    Vacuum System
    Power0.75KW220V Single-phase motor
    FiltrationVertical and horizontal
    Utilities
    Power1.5KW AC220V
    Air supply4~5KG/cm2

    feature:

    1. promptly delivery. small order is welcome

    2. High efficiency:It merely needs a few minutes to make a piece of PCB.

    3. Safety :Enclosed Work Area ;Door Interlock Sensors ;Emergency Stop Button

    4. we can offer you the high quality & reasonable price

    5. we can do the designs according to the customers' requirement

    6. we can offer your a good after-sell service .

    7. we have strong professinal design team


    Your advantage:
