    Aquaculture Ultrasonic Level Sensor 4 - 20mA Automatically Controls Switch Water Level Meter

    Ask Lasest Price
    Brand Name : Kacise
    Model Number : KUM-A
    Certification : certificate of explosion-proof,
    Price : USD157 to USD610 per pc
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000 Pieces per Week
    Delivery Time : 5 work days
    • Product Details
    • Company Profile

    Aquaculture Ultrasonic Level Sensor 4 - 20mA Automatically Controls Switch Water Level Meter

    Aquaculture Ultrasonic Level Sensor 4 - 20mA Automatically Controls Switch Water Level Meter

    Note: Range information is very important


    KUM-A ultrasonic level meter is a non-contact and cost-effective level meter with high reliability, high accuracy and easy installation. It does not have to contact the medium and can meet the measuring requirements of most applications.



    Technical Features:


    • Non-contact, can be used in various applications;
    • Various types of probes are available to meet the requirements of various applications.
    • High accuracy: 0.5%, 1%
    • English LED Display

    Structure:



    Technical Specifications:


    SpecsValue
    Pressure Voltage5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
    Accuracy0.5%, 1.0%
    DisplayLCD
    Ambient TemperatureDisplay instrument-20~+60℃
    transducer-20~+80℃
    Mediumliquid and solid
    Analog Output4-20mA
    Digital OutputRS485, RS232 (both are optional)
    Power Supply24Vdc
    Protection GradeDisplay instrument IP65,transducer IP68
    Probe TypePVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy

    Model Selection:


    KUM-A
    Measurement Range
    A5m
    B10m
    C15m
    D20m
    E30m
    F40m
    G50m
    H60m
    Output Signal
    A4-20mA
    Accuracy
    0.50.5%
    1.01%
    Power Supply
    A24Vdc
    B11~30Vdc
    Probe Type
    APVDF
    BAluminum alloy
    CABS
    DStainless steel 316L
    ETeflon
    FTitanium alloy

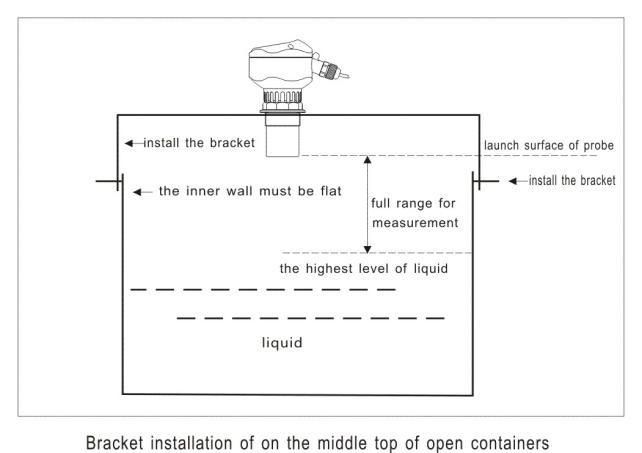

    Applications and Installations:


    • Distance measurement
    • Depth measurement


    Common problems and solutions guidance during installation


    Fault descriptioncause of issueSolution
    Meter does not display, does not workWrong power supply Wrong wiringCheck whether the DC24v power supply is correct Check whether the wiring is correct
    The instrument has display, does not work1. The level gauge is not aligned with the liquid level or material level
    2. The liquid level fluctuates greatly
    3. The material surface is extremely uneven
    4. The liquid surface has a thicker foam layer
    5. The bottom of the container is not flat after the liquid is emptied and the material is emptied
    6. Out of measurement range
    1. Adjust the alignment direction of the level gauge, and use a spirit level to calibrate and add a plastic tube to the container
    2. Use a level gauge with a larger range
    3. Use a level gauge with a larger range or other measurement methods
    4. Naturally resume work after adding liquid or material
    5. Use a level gauge with a larger range
    The instrument display is unstable or the measured value has a large deviation1. The material level enters the blind spot
    2. The distance measurement value is greater than the installation height
    3. There is strong electromagnetic interference
    4. Objects that block sound waves
    5. A metal flange is prepared on the level meter
    6. The emitting surface or side of the probe is in contact with metal
    1. Elevate the level meter or prevent the level from being too high
    2. Modify the installation height to the correct value
    3. The instrument must be connected to the ground, and shield the level gauge
    4. Change the installation position or add plastic pipes
    5. Switch to plastic flanges
    6. Use rubber pads to isolate from metal

    For the container with the installation port or the probe placed in the round pipe, the length of the flange connection of the 4m, 6m and 8m type level gauge container should be less than 400mm, and the length of the 12m level gauge container should be less than 400mm.
    150mm, 15m, 20m, 30m level sensor probes should protrude from the installation port.
