Digital RS485 and 0/10V Low Power Consumption Ultrasonic Water Level Sensor
1,Description
This sensor provides very short to long-range detection and
ranging, in a compact, robust PVC housing,
designed to meet IP65.
2,features:
3,Parameter
General Parameters | Mechanical Properties | ||
Detection Range | 200mm~3000mm | Connection | 5 pin cable |
Transducer Frequency | 70KHZ | Weight | 100g |
Repeatability Precision | ≤1% | IP grade | IP65 |
Response Time | <50ms | ||
Beam Angle | 7°±2 | ||
Temp. Compensation | inside/outside/fix temp. | ||
Electrical Parameters | |||
Operating Voltage | 14.5VDC~27VDC | ||
Limit Working Voltage | 13VDC~30VDC | ||
Power Consumption | ≤30mA | ||
Circuit Protection | short-circuit protection, overload protection | ||
Output | Digital Output | RS485 | |
Analogue Output | 0~5V | ||
Switch Output | 0V / 5V | ||
Ambient Environment | |||
Operating Ambient Temp. | 0~70℃ (-40~85℃, -55~125℃, etc, customizable) | ||
Storage Temperature | -55~125℃ |
4,Dimensions
5,Application

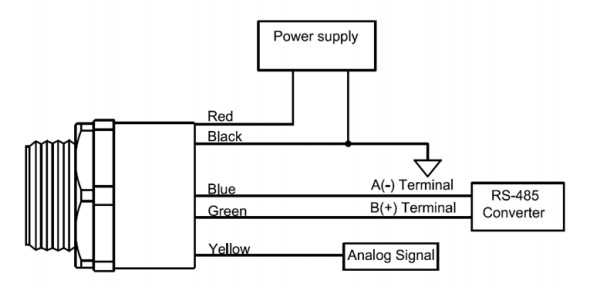

6,Wiring
![]() |
