Encoder Switch ,12/24 360° pluses Coding Rotary Encoder,Coded Rotary Switch , Incremental Encoder

    Buy cheap Encoder Switch ,12/24 360° pluses Coding Rotary Encoder,Coded Rotary Switch , Incremental Encoder from wholesalers

    Buy cheap Encoder Switch ,12/24 360° pluses Coding Rotary Encoder,Coded Rotary Switch , Incremental Encoder from wholesalers
    • Buy cheap Encoder Switch ,12/24 360° pluses Coding Rotary Encoder,Coded Rotary Switch , Incremental Encoder from wholesalers
    • Buy cheap Encoder Switch ,12/24 360° pluses Coding Rotary Encoder,Coded Rotary Switch , Incremental Encoder from wholesalers
    • Buy cheap Encoder Switch ,12/24 360° pluses Coding Rotary Encoder,Coded Rotary Switch , Incremental Encoder from wholesalers
    • Buy cheap Encoder Switch ,12/24 360° pluses Coding Rotary Encoder,Coded Rotary Switch , Incremental Encoder from wholesalers

    Encoder Switch ,12/24 360° pluses Coding Rotary Encoder,Coded Rotary Switch , Incremental Encoder

    Ask Lasest Price
    Brand Name : KKG
    Model Number : EC12S-2
    Certification : UL,Rosh,CQC,
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 15 - 20 days
    • Product Details
    • Company Profile

    Encoder Switch ,12/24 360° pluses Coding Rotary Encoder,Coded Rotary Switch , Incremental Encoder

    Encoder Switch ,12/24 360° pluses Coding Rotary Encoder,Coded Rotary Switch , Incremental Encoder

    KKG Electronics (Taiwan) Co., Ltd. is a dedicated switch, socket and other components r & D and manufacturing company, its products are mainly used in consumer electronics, home entertainment products, mobile communications products, automotive electronics, medical equipment products. By the customer's affirmation. Since the establishment of the company in 1998, the company has been with the development of electronic components. During this period, the company has won many awards such as ISO9001 and quality management industry excellence Award. Designated as "quality Excellence" factory, in the harsh environment of fierce domestic competition, we protect our leadership position and reputation in order to meet new challenges. The company production plant distribution in: Taiwan, China, guangdong dongguan, guangdong shenzhen, guangdong, zhuhai (according to individual products by the above different factory production or outsourcing processing), as China's expansion and strengthening more perfect service, in 2012 in dongguan, China, established wholly owned "dongguan foreign industrial co., LTD.", Professionally responsible for sales and meeting more customer needs. Our company has a leading technology research and development team, superior process ability, and constantly introduce new products to meet the needs of the market and customers, welcome OEM, ODM inquiries



    KKG ELECTRONICS FACTORY OFFER YOU :


    1: FACTORY DIRECT PRICE.

    2: NICE QUALITY.

    3: SMALL ORDER WELCOME...

    4: SUPPORT 7 DAYS REFUND MONEY

    5: ONLINE PAYMENT.

    6: AFTER SALES SERVICES 24/7

    We had the honor to serve many of the famous big companies all over the world

    WELCOME TO BE ONE OF OUR TOP "VIP" CUSTOMERS".

    WE ACCEPT ‘SUPPORT’ OEM ORDERS

    WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE".

    WE BELIEVE IN “WIN-WIN”SITUATION

    LOOKING FOR AGENT

    "With us your MONEY in safe ; Your BUSINESS in safe"

    Product Description


    Encoder is a sensor that outputs physical quantity information such as Angle, length and speed by digital quantity 0 and 1 encoding. Because of its high precision, large range measurement, fast response and digital output characteristics; Small size, light weight, compact structure, easy installation, simple maintenance, reliable work and other excellent characteristics, so become today's industrial control system is favored and an indispensable part.

    1) According to its measurement method, there are linear encoder and rotary encoder.

    2) According to its output signal, there are incremental encoder and absolute encoder.

    3) According to its internal reaction elements, there are photoelectric encoder, magnetic grid encoder.

    4) It is divided into mechanical mechanism form, bearing encoder and bearing less encoder.


    Mechanical characteristics
    Total rotational angle360°
    Click torque20-100gf.cm
    No. Of click

    24 click step angle:15±2°

    12 click step angle:30±2°

    Bushing-nut tightening torque8.0kgf.cm Min
    Shaft play in rotational wobbleMax
    Electrical characteristics
    ratingDC 5V,A,B lead 5mA Max, C lead 10mA Max
    resolution24 pules/360° 12pules/360°
    Insulation resistance100MΩMin at DC50V
    Dielectric1 minute at AC 300V
    Endurance characteristics
    Rotational life30000±200 cycles100gf.cm
    Storage temperature range-40℃≈+85
    Operating temperature range-30℃≈+80
    Soldering characteristic

    Dipping in soldering≤206℃±5°,within 3S

    Solder by hand≤300℃±5°, within 3S

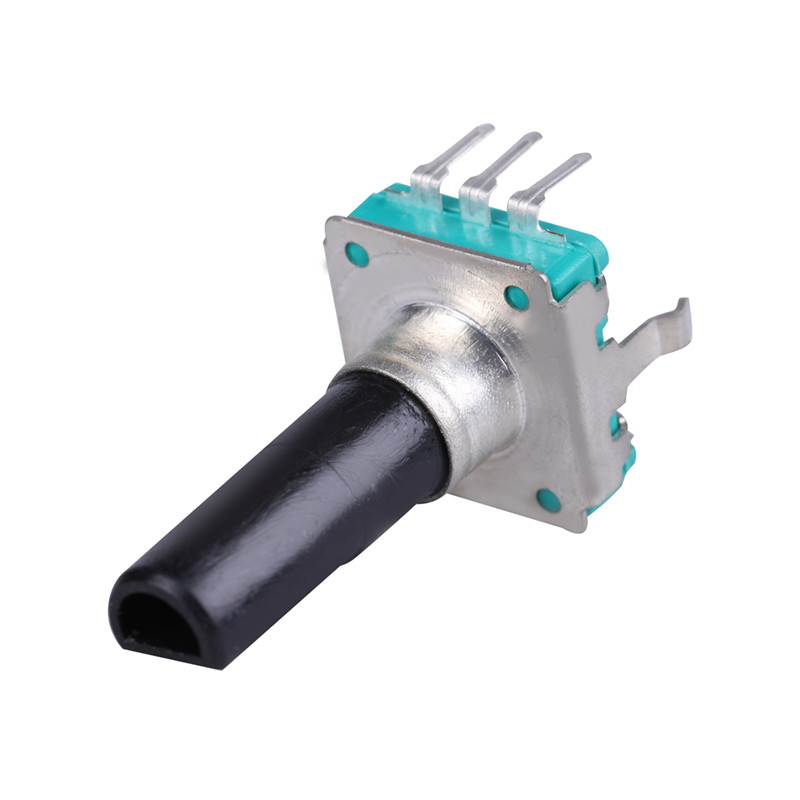

    Product Display


    Product Drawing

    FAQ


    Q1: Are you a factory or trading company

    A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.


    Q2: How does your factory do regarding quality control?

    A2: All the products will be 100% checked before the shipment.


    Q3: When can I get the price?

    A3:Usually we quote within 24 hours after we get your inquiry.


    Q4: How could I get a sample?

    A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.


    Q5: What is the price of shipping?

    A5: Depending upon the port of delivery, prices varies.
