    4 Position Coded Rotary Switch Octal Code Right Angle Mount Extended Actuators

    Ask Lasest Price
    Brand Name : KKG

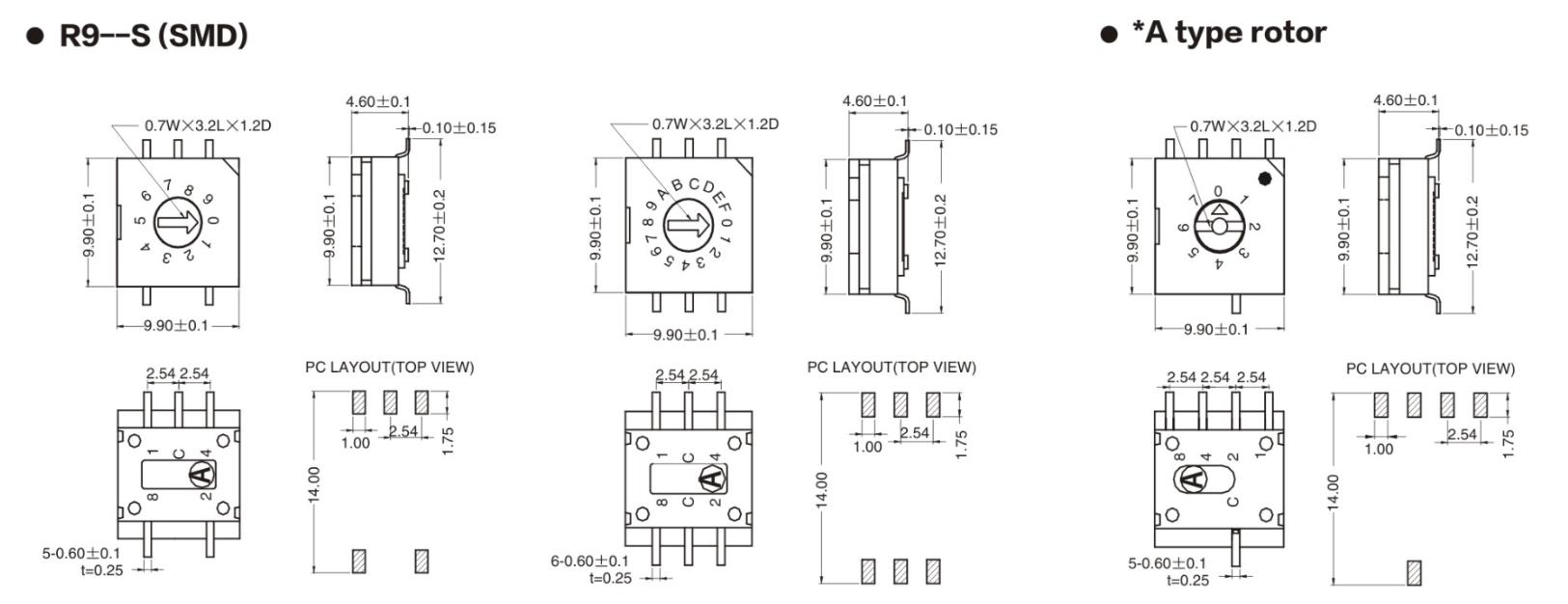

    Model Number : R9--S
    Certification : CE / SGS / ISO9001
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : Negotiate
    • Product Details
    • Company Profile

    4 Position Coded Rotary Switch Octal Code Right Angle Mount Extended Actuators

    5VDC 20mA Contact Rating Automatic 4~16 Positions Selector Rotary Switch
    Specifications

    1,Contact Rating
    Switching: 5VDC 20mA (Min. AC/DC 20mA
    Non Switching: Max. 50VDC 100mA
    2,Contact Resistance: 100mΩ Max
    3,Insulation Resistance : 1,000MΩ Min. at 100VDC
    4,Dielectric Strength: 250VAC for 1 minute
    5,Operating Force:
    400gf/cm Max. (Standard)
    200gf/cm Max. (N type)
    6,Life: 20,000 Steps
    7,Operating Temperature:
    -40C~+85C
    -40'C~+125C(Reflow Soldering)
    7,Storage Temper ature: -40C~+85C
    8, Wave Soldering: 270C 5 Sec. Max.
    9,Reflow Soldering: 260C 10~ 30 Sec. Max.
    10,Hand Soldering: 350C 3 Sec. Max



    ItemsStandard
    Operating temperature range-40'O~+85<C
    Electrical performanceSwitch Rating5VDC 100mA
    Non-Switch Rating50VDC 100mA
    DurabilityLifetime10,000 Steps
    Mechanical performanceOperating force2N Max.

    Code Format


    No.of positions(16 positions)
    (10 positions)
    (08 positions
    Position0123456789ABcDEF
    CodeReal code8
    4
    2
    1
    Complem- entary code8
    4
    2
    1

    Package

    P/NNo. Of PoleQuantity per TubeP/NNo. Of PoleQuantity per Tube
    R92_H/T/S08/10/1650R9_0/1S-R08/10/16600
    R92_V/Y08/10/1645R9_2/3S-R08/10/16350
    R93_H/T/S08/10/1650R9_7S-R08/10/16200
    R93_V/Y08/10/1645R9_7H/T-R08/10/16140
    R94_H/T/S08/10/1650
    R94_V08/10/1645

    Features

    1. Sealed Construction; No Tape Seal Required.
    2. Surface Mount or Thru-Hole Style.
    3. Tube or Tape and Reel Packaging.
    4. Octal, BCD, and Hexadecimal Code.
    5. In Real or Complement.
    6. Standard and Right Angle Mount.
    7. Flush or Extended Actuators.
    8. Gold-Plated Contacts.
    9. Waterproof meet lp67.
